Injection moulding is widely known as one of the most cost-efficient and scalable manufacturing methods for producing plastic parts. But why is it so expensive upfront? Many businesses and product developers find themselves surprised by the high initial investment. However, understanding the breakdown of these costs can help manufacturers make better decisions, optimize design, and reduce unnecessary spending.
Injection moulding is a manufacturing process that involves injecting molten plastic into a metal mould cavity. Once cooled, the plastic solidifies into the final part shape. The mould then opens, and the part is ejected. It's used to produce everything from plastic containers to automotive components.
Industries such as automotive, medical, packaging, electronics, and consumer goods rely heavily on plastic injection moulding. It’s ideal for high-volume production due to fast cycle times and consistent part quality.
Medical syringes
Plastic housings for electronics
Automotive dashboards
Packaging caps and lids
Toys and consumer goods
The major reason injection moulding is expensive is due to the cost of creating the mould. A high-quality steel mould can range from $5,000 to over $100,000 depending on the complexity and number of cavities.

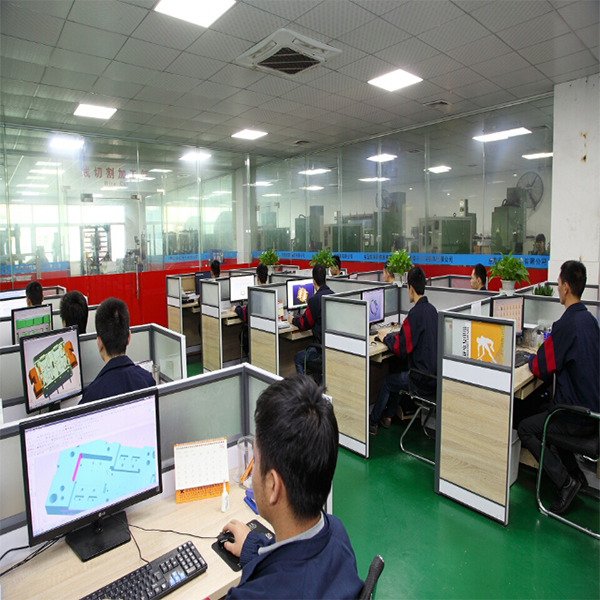

Engineers must create detailed CAD models and design the mould for both part functionality and manufacturability. This requires skill, software, and time.
Moulds are made from hardened steel or aluminum using CNC machining and EDM (Electrical Discharge Machining). These materials and machines are costly to operate.
Mould-making involves highly skilled technicians, quality equipment, and meticulous processes. Labour and capital investments are significant, especially in countries with high wage structures.
The more complex your part design, the more complicated the mould. Undercuts, inserts, side actions, and tight tolerances all add time and money.
Good design is the foundation. Expect around 5–15% of the mould cost to be in the design phase.

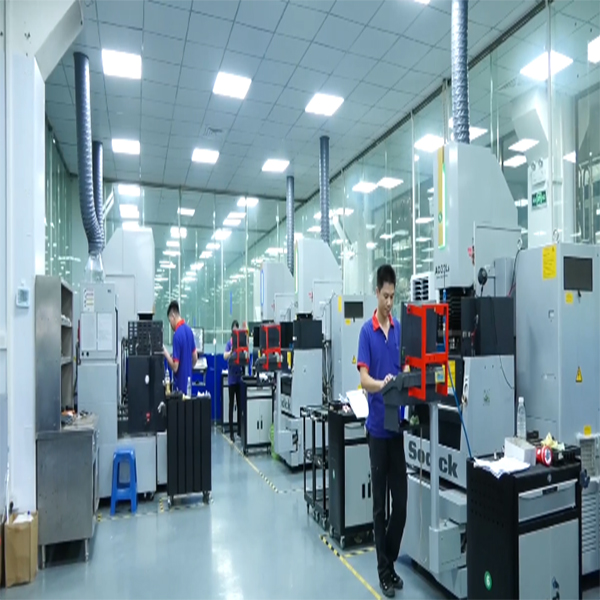

CNC machines cut precise shapes into hardened steel. EDM allows for intricate geometries and fine details. These steps are time-consuming and expensive.
Heat treating improves hardness and wear resistance. Surface finishes like polishing, texturing, and coating add cost.
Once parts are machined, they are assembled, aligned, and tested. Mould trials are needed to ensure quality and avoid defects.
The more cavities (or impressions) in the mould, the higher the tooling cost—but this reduces the per-part cost.
Roughing removes bulk material quickly. Finishing adds fine detail and accuracy. Finishing can take 60–70% of total machining time.
STEP (.STP) files are most universally accepted for CNC programming and mould design due to their accuracy and compatibility.
Plastic costs vary based on type: ABS, PP, PC, etc. Specialty additives, flame retardants, and colorants increase the price per kg.
Each production run requires setup time: machine calibration, material loading, and temperature adjustment. This affects short runs most.
Cycle time includes injection, cooling, and ejection. Shorter cycles = higher productivity. Higher volumes reduce the cost per part.
Ejector pins push the part out of the mould. They can leave small marks that require polishing, trimming, or extra post-processing.
Some parts must meet strict tolerances. Additional QC like CMM inspection, vision systems, and pressure testing raise costs.
The cost of injection moulding drops sharply with volume.
| Volume (Parts) | Cost Per Part (Estimated) |
|---|---|
| 100 | $25–$100+ (prototyping) |
| 1,000 | $5–$25 |
| 10,000 | $1–$5 |
| 100,000+ | $0.10–$1 |
| Method | Best For | Unit Cost (Low Volume) | Tooling Cost |
|---|---|---|---|
| CNC Machining | Metal, low-mid volume | High | Low |
| 3D Printing | Prototypes, low complexity | Medium | Very Low |
| Injection Moulding | High-volume plastic parts | Very Low | High |
When you plan to produce thousands or millions of parts over time. That’s when tooling becomes an investment, not an expense.
CNC has no upfront tooling, great for metal. Injection moulding is unbeatable for plastic parts once volumes grow.
Avoid sharp corners, reduce wall thickness, simplify geometry. DFM reduces machining time and defects.
Standard ejector pins, sliders, and plates are cheaper than custom ones.
A 2-cavity mould may double output without doubling cost. Balance budget and output goals.
Aluminum moulds are great for short runs. Steel lasts longer but costs more.
An experienced mould maker can prevent costly mistakes and rework. Saves time and money in the long run.
Use flat ejector pin heads, place pins on non-cosmetic areas, and consider secondary polishing only if needed.
Yes, especially for prototypes or short runs. Aluminum tooling or 3D printed inserts can reduce costs.
Poor surface finish, dimensional errors, cracking, or short tool life. A bad mould wastes material and production time.
Use rapid tooling
Work with trusted suppliers
Match mould type to production needs
Many companies source from China due to lower labour and material costs. Chinese moulds can cost 30–50% less with comparable quality—especially useful now with rising U.S. tariffs on domestic tooling.
Part size and weight
Number of cavities
Cycle time
Resin type
Volume of production
Formula:
Total Project Cost = Mould Cost + (Cost Per Part × Quantity)
Example:
| Item | Cost |
|---|---|
| Mould Cost | $20,000 |
| Part Cost (10,000 pcs) | $1.00 each |
| Total Cost | $30,000 |
| Effective Cost/Part | $3.00 |
Bottle caps: $0.02–$0.05
Medium plastic enclosures: $1–$3
Automotive connectors: $0.50–$2
Sites like Xometry, Protolabs, and Fictiv offer instant quotes. Upload your CAD file, choose materials, and get a breakdown. Great for comparisons.
Look for companies with experience in both design and tooling. This avoids miscommunication and delays.
Ask for ISO certifications, client references, and sample reports. Quality control ensures long-term savings.
Let experts review your part for injection moulding suitability. Many suppliers offer this for free.
Lower labour and material costs. Excellent for scaling production. Check time zones, shipping fees, and trade policies.
U.S. tariffs on China-sourced tools and parts can affect pricing. However, even with tariffs, Asian suppliers often remain more affordable.
Injection moulding has high initial costs but is cost-efficient for volume
Tooling, materials, and design complexity drive costs
Reducing complexity and sourcing smartly cuts costs
Global suppliers offer good alternatives when managed well
High-quality tooling lasts longer, produces better parts, and lowers long-term per-part cost. It’s an investment.
Understand your needs. Choose the right process. Work with trusted partners. Injection moulding delivers unmatched value for scalable production.
