What Is DFM (Design for Manufacturability) in Injection Molding?

Design for Manufacturing Basics

Design for Manufacturability (DFM) helps improve product quality, reduce waste, and lower costs in injection mold projects. DFM focuses on optimizing the design of parts for easier, faster, and more reliable manufacturing. It's crucial in plastic part production where tight tolerances, material flow, and tool behavior must align.

What is DFM?

DFM is a process where designers and engineers work together to ensure a part is easy to manufacture. In injection mold work, it means adjusting geometry, choosing materials, and planning tooling before full production.

What is DFM in plastic injection molding?

In plastic injection mold projects, DFM tailors designs for tooling and resin flow. It helps avoid common defects. It ensures parts fill correctly, cool evenly, and eject cleanly.

Who does DFM?

Tooling engineers, design engineers, mold makers, and project managers all contribute to the DFM process. Often, contract manufacturers run DFM reports and provide recommendations.

What does the DFM process look like in plastic injection molding?

It includes:

• Reviewing CAD files

• Simulating mold flow

• Identifying issues

• Suggesting corrections

Analysis of Plans and Identification of Concerns

Engineers analyze part geometry. They look for areas that cause warping, sink marks, voids, or short shots. Thin walls or complex features get flagged.

DFM Simulation

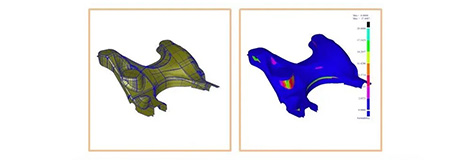

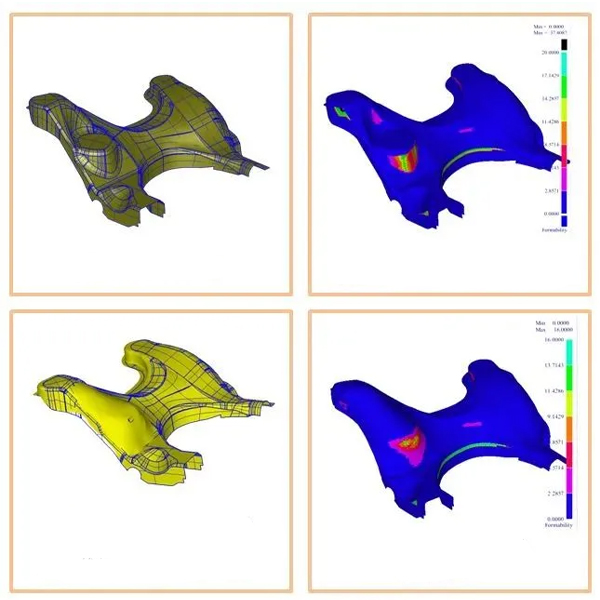

Simulation software predicts resin flow, pressure, and cooling patterns. It detects weld lines, jetting, burn marks, and more.

Presentation of Results and Recommendations

Teams receive a report listing issues and fixes. Engineers explain each recommendation. Designers revise CAD files based on this feedback.

Prototyping, Testing, and Completion

After changes, the part is prototyped. Engineers run test shots in a soft tool or 3D print it. Final tweaks are made before hard tooling begins.

Checklist for DFM In Plastic Injection Molding

Use this table as a quick reference for common injection mold design checks:

Plastic Injection Molding Problems Solved by DFM

DFM prevents dozens of common injection mold issues before they start.

Key Problems in Plastic Injection Molding

Flash, weld lines, sink marks, short shots, burn marks, brittleness, delamination, jetting, sinks, voids, splay, bubbles, warping, and flow lines—these all appear when a part design doesn't follow DFM rules.

Case Study: Solving Quality Issues for a Medical Device

A client producing small medical components saw high rejection rates. DFM analysis showed thin walls next to thick ribs. This caused sink marks, warping, and short shots. By adjusting wall thickness and rib design, the client saw a 38% increase in yield and 22% faster cycle time.

How to Include DFM In Your Plastic Injection Molding Project

Finding the Right Contract Manufacturer

Look for suppliers who offer early DFM support. They should:

• Use advanced software (e.g., Moldflow)

• Offer material guidance

• Provide tooling feedback

• Show past DFM success stories

A Successful Project Handoff

Once the part design is finalized post-DFM, ensure full documentation:

• Revised CAD files

• Mold flow analysis

• DFM reports

• Final BOM

This ensures smooth communication between design and production.

What is an Injection Molding DFM (Design for Manufacturing) Report?

A DFM report is a comprehensive document. It reviews all design elements based on injection mold manufacturing rules.

The Role of an Injection Molding DFM Report

It highlights:

• Moldability of parts

• Areas of risk

• Manufacturing time

• Tolerances and draft angles

• Cost drivers

Typical Contents of a DFM Report

A standard DFM report includes:

Gate type and locations

Choosing between edge gates, hot tips, submarine gates. Gate size affects flow lines, burn marks.

Ejector pins type and locations

Poor pin placement can deform parts. Proper ejector pins improve ejection and reduce warping.

Parting Line Placement

Visible parting lines affect aesthetics. DFM guides parting line to hidden areas.

Placement of Lifters and Sliders

These allow undercuts without complex tooling. Placement affects tool complexity and cycle time.

Wall and rib thicknesses analysis

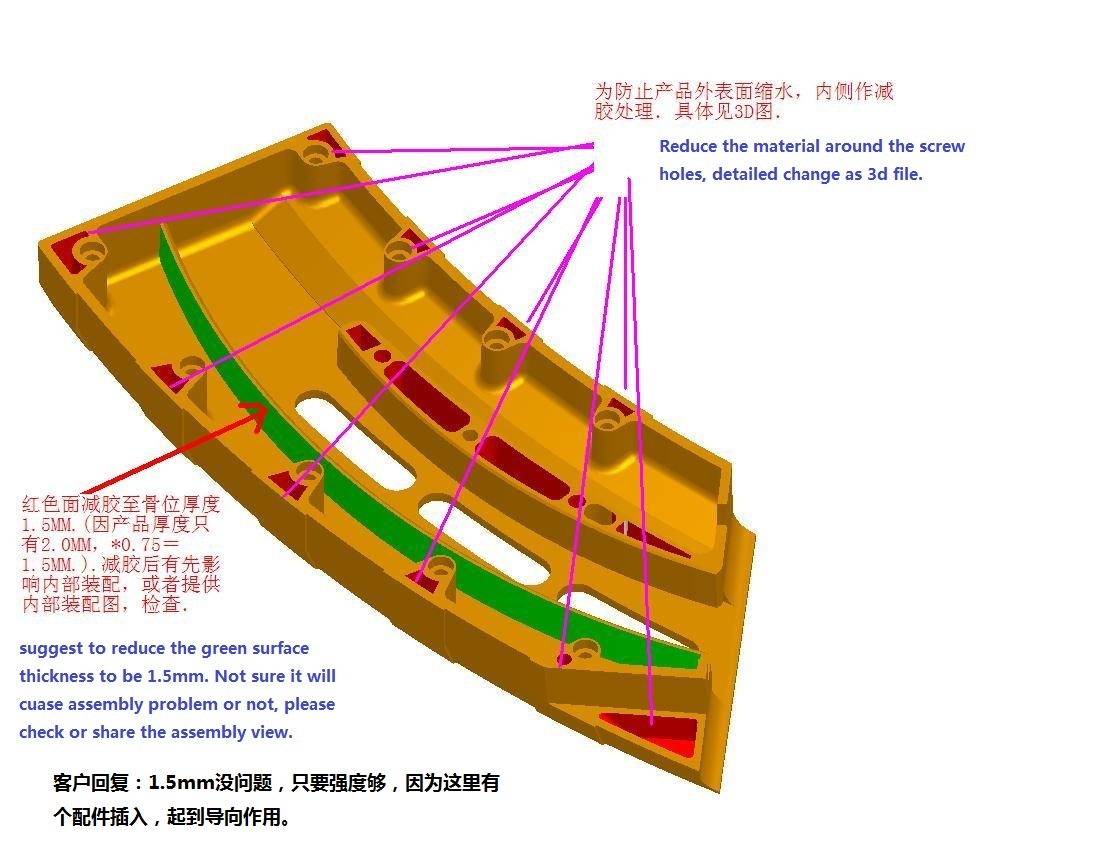

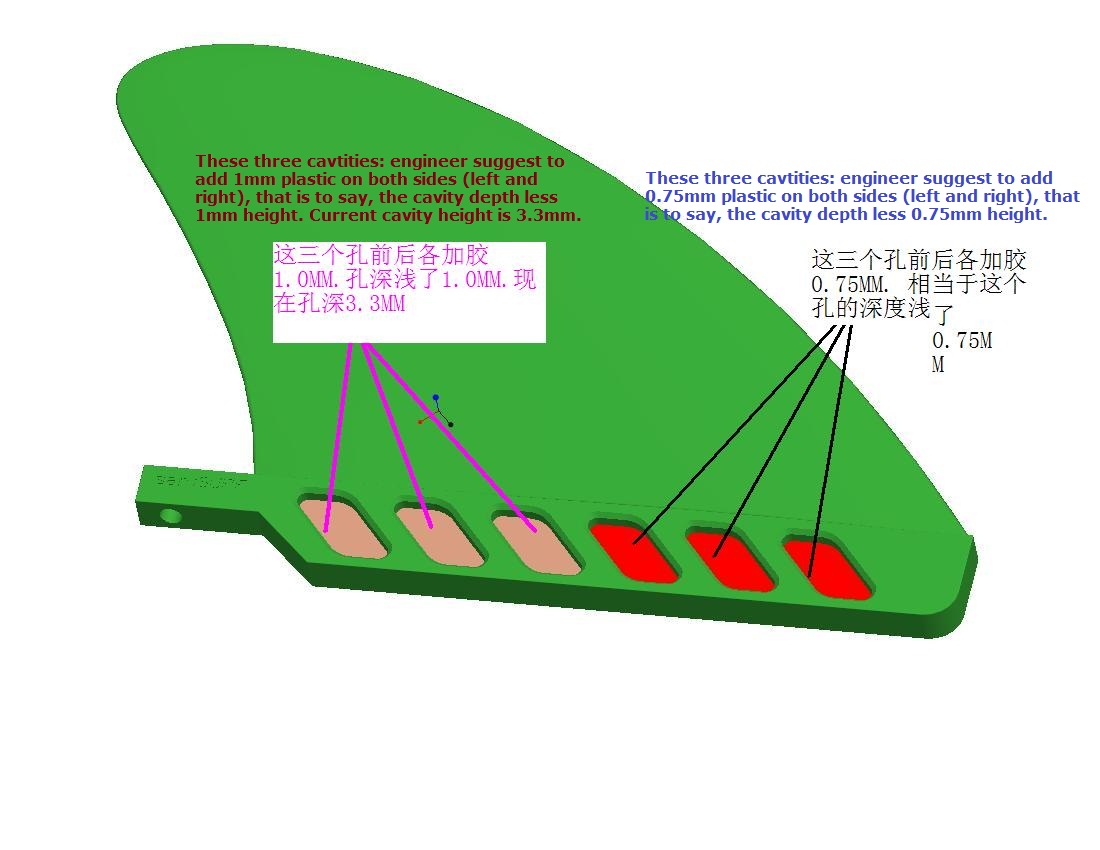

DFM checks wall uniformity. Thin walls cause short shots, thick areas cause sink marks.

Draft angles analysis

Draft is essential for ejection. Without it, parts stick, bend, or break.

Possible optimization for the part design

DFM gives tips to simplify features, reduce cost, improve strength.

Mold Flow Analysis (MFA)

MFA is a core DFM tool in injection mold projects. It simulates plastic behavior during injection.

Air Traps

Simulations show where trapped air might cause bubbles or burn marks.

Weld lines

DFM and MFA predict weld lines and suggest alternative gate locations or flow paths.

Sink index

This number quantifies how likely sink marks will form. Lower is better.

Deflection

Predicts warping or bending after ejection. DFM recommends support ribs or cooling changes.

Mold Drawing

Final designs must include mold drawings. These show gate, ejector, and cooling system layouts. DFM ensures these drawings meet standards.

Conclusion

Design for Manufacturability is a critical phase in injection mold production. It prevents defects, reduces costs, improves quality. Without DFM, you risk delays, rework, and bad parts. With DFM, you get faster tooling, fewer changes, and better performance.

Want to reduce sink marks, warping, weld lines, voids, or jetting? Start every injection mold project with a DFM analysis. It saves time. It saves money. It saves your reputation.
