What Is Compression Molding And How Does It Work

Compression molding changes raw materials into solid parts using heat and pressure inside a mold. This process makes strong and long-lasting products for many industries. It starts when a material, like plastic or rubber, goes into a heated mold. The mold closes and pushes the material to make a certain shape. Compression molding is good for small and big parts and gives steady results for many uses.

Key Takeaways

• Compression molding uses heat and pressure to shape things. It makes parts that are strong and last a long time. This process works with many materials like thermosets, thermoplastics, rubber, and composites. It is good for making big, simple, or thick parts. These parts need to be strong and dependable. Compression molding saves money because tools cost less. It also wastes less material than other ways. The steps include getting the material ready and heating the mold. The mold is cleaned and the material is put inside. Then the material is pressed to make the part. Compression molding is slower and not as exact as injection molding. But it works better for small or medium batches and special materials. Many industries use it, like car, electrical, consumer goods, and medical device companies. This method helps the environment by using less energy and making less waste. Sometimes it even uses recycled materials.

•


Compression Molding

Definition

Compression molding shapes materials into solid parts using heat and pressure. First, a raw material like plastic or rubber goes into a hot mold. The mold closes and pushes the material to fill the shape. High pressure helps the part form the right way. When the material cools and gets hard, the mold opens. The finished part comes out.

This process works with many kinds of materials. It is used for thermosets, thermoplastics, rubbers, elastomers, and composites. It can make simple or complex parts. The products are strong and last a long time.

Purpose

The main goal is to make strong, exact, and reliable parts for many uses. This process lets manufacturers make parts with the right shape and size. It also helps them make items that are strong and stiff.

Compression molding is important in factories today because it has many benefits:

• It can use many materials, even ones that are hard to shape in other ways.

• It makes big, thick, or heavy parts that other methods cannot make easily.

• It helps save material and energy, so it is better for the environment.

• It lets companies use lighter, rust-proof composites instead of metal.

Note: Compression molding is picked because it is fast, saves money, and makes parts that meet tough rules.

Many industries use this process, like car makers, airplane builders, medical device makers, and factories. The parts made can be light, strong, and do not rust. It also lets companies make parts quickly and design tools that work well.

The table below shows how compression molding compares to other molding processes:

Compression molding gives companies a flexible and dependable way to make many kinds of parts. It works with many materials and sizes, so it is useful for modern factories.

Compression Molding Process

Material Prep

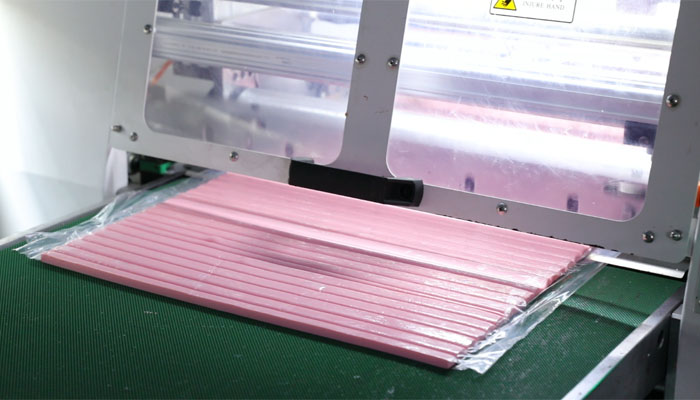

The compression molding process starts with getting the material ready. Workers pick the right raw material, like plastic, rubber, or composite. They cut the material into small pieces called charges. Sometimes, they heat the material before using it. This makes it easier to shape and helps it move inside the mold. Heating also helps the material harden the same way everywhere. The goal is to make sure the material is the right size, weight, and in good shape before it goes in the mold. This step helps the rest of the process go well.

Tip: Heating the material first can make the process faster and help the finished part turn out better.

Mold Setup

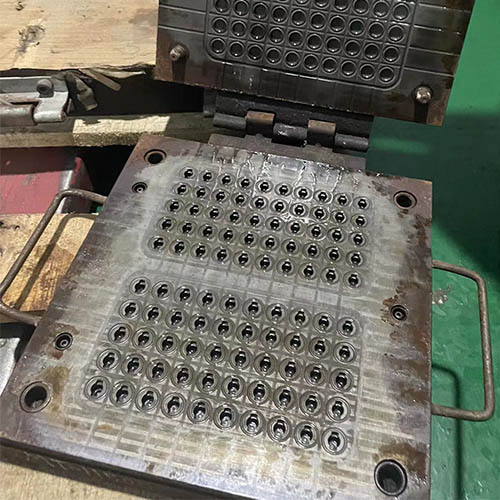

After that, the team gets the mold ready. They clean the mold to get rid of dust or old material. Then, they heat the mold to the right temperature. A hot mold helps the material move and fill the whole space. Workers might put a special coating on the mold. This coating stops the part from sticking to the mold. It makes it easier to take the part out later. Getting the mold ready helps each part have the right shape and a smooth surface.

Loading

When the mold is ready, workers put the material in the mold. They place the charge in the middle of the bottom part of the mold. How much material they use and where they put it is important. If there is not enough, the part will not fill all the way. If there is too much, extra material called flash will show up on the edges. Loading the mold carefully helps make parts the right size and shape. The team checks that the material is even before moving on.

Think of this step like making waffles. You pour just enough batter in the middle of the waffle iron to get a good waffle. In compression molding, the charge is like the batter, and the mold is like the waffle iron.

Pressing

The pressing step is the most important part of compression molding. After workers put the material in the mold, they close it tightly. A press pushes down hard on the mold. This force makes the material fill every space inside. The pressing step shapes the part and gets rid of air bubbles.

Both heat and pressure are needed in this step. The mold gets hot to a certain temperature. Most products use heat between 135°C and 170°C. The right temperature depends on the material, how fast it cures, and how thick it is. For example:

• Fast-curing systems use lower temperatures.

• Slow-curing systems or thin parts use higher heat.

• Thick parts need lower heat to stop problems.

Pressure changes during compression molding. The press can push with a lot of force. For example, making biopolymer films uses about 3.5 MPa. Some materials, like bulk molding compounds (BMC), need more pressure than others, like sheet molding compounds (SMC). If the mold gets hotter, the material gets softer. This means the process might need more pressure to fill the mold. But too much pressure can damage the mold or make the part weak.

Note: Using the right heat and pressure helps the material flow, fill the mold, and cure without problems.

Sometimes, workers use pre-compression or preheating steps. These steps help the material spread out and lower the pressure needed. The pressing step must last long enough for the material to move and start curing. If it goes too fast, the part may not form right.

The pressing step is like closing a waffle iron and letting the batter spread. The press keeps the mold shut while the material takes its shape inside.

Materials Used in Compression Molding Processes

Thermosets

Thermosets are very important in compression molding. These polymers change forever when heated. After curing, they cannot be shaped again. Manufacturers pick thermosets because they are strong and last a long time. They also stand up to heat and chemicals. The table below lists some common thermoset materials and their main features:

Thermosets can handle high heat and tough chemicals. They are strong and do not break easily. Many thermosets also block electricity and keep out water and sunlight. These features make them great for cars, electronics, and building parts.

Thermoplastics

Thermoplastics are another type used in compression molding. They get soft when heated and hard when cooled. This can happen over and over again. Thermoplastics help make big or tricky shapes with smooth surfaces. The table below shows some common thermoplastics and their benefits:

Thermoplastics help save material by using only what is needed. They make strong parts that last a long time. Many thermoplastics can take heat and do not let electricity pass through. Some, like PTFE, are slippery and resist chemicals. These qualities make thermoplastics useful for many jobs.

Rubber & Elastomers

Rubber and elastomers are also used in compression molding. They help make rubber parts that bend, seal, or insulate. Many kinds of rubber work well in this process. Silicone rubber bends easily and can handle very hot or cold temperatures. Fluorosilicone rubber stands up to fuel and chemicals. It is good for seals and gaskets. Electrically conductive silicone has fillers for blocking EMI and ESD. Thermally conductive silicone helps move heat away in electronics and medical tools. Platinum cure silicone is pure and strong for medical and food uses. Viton fluoroelastomer is known for its chemical resistance and is used in tech equipment.

Manufacturers use rubber to make gaskets, seals, o-rings, and pads that stop shaking. EPDM rubber is great for outdoor and car parts because it resists weather and heat. This process can make rubber parts with exact shapes and sizes. Compression molding materials in this group are used in many things, from medical tools to big machines.

Tip: Rubber compounds in compression molding can meet strict rules for safety and how well they work.

Composites

Composites are very important in compression molding. These materials mix two or more things together. This makes a part that is stronger and better than each thing alone. Companies use composites to make parts that are tough and light. These parts can also handle a lot of stress.

There are many kinds of composites used in this process. Some common types are:

• Sheet Molding Compound (SMC): SMC mixes fibers, like glass, with thermosetting resins. This makes the part strong and smooth. SMC is used for car panels, electrical boxes, and some furniture.

• Bulk Molding Compound (BMC): BMC mixes short fibers with resins and fillers. It moves easily into molds and makes strong parts. BMC is used for car parts, appliance cases, and electrical insulators.

• Glass Fiber Reinforced Thermoplastics (GFRT): These have glass fibers in a thermoplastic base. They are tough and lighter than metal. GFRT is used in cars, electronics, and sports gear.

• Carbon Fiber Reinforced Plastics (CFRP): CFRP has carbon fibers mixed with plastic. This makes parts that are very strong and light. CFRP is used in planes, fancy cars, and sports equipment.

• Long Fiber Thermoplastics (LFT): LFT uses long fibers to make parts stronger and tougher. These are good for big, strong parts.

Compression molding with composites has many good points:

• High strength and can take hard hits

• Lasts a long time and keeps its shape

• Material spreads out evenly with fewer mistakes

• Can make big or tricky shapes

Manufacturers can pick thermoplastics, thermosetting plastics, or rubber composites. This helps them choose the best material for each part. For example, rubber composites can make parts bendy and good for sealing. These are great for gaskets or parts that stop shaking.

This process is fast and does not waste much material. Companies can make lots of parts quickly. The finished parts are strong because the fibers line up during molding. This helps the part hold heavy things and not break.

Note: Compression molding with composites is used in cars, planes, buildings, and electrical products. These parts need to be strong and sometimes must resist heat or chemicals.

Some medical tools and things people use every day also use composite parts. The process makes items that last and work well in tough places. Rubber-based composites can make parts that bend or stretch without breaking.

Equipment Used in the Compression Molding Process

Presses

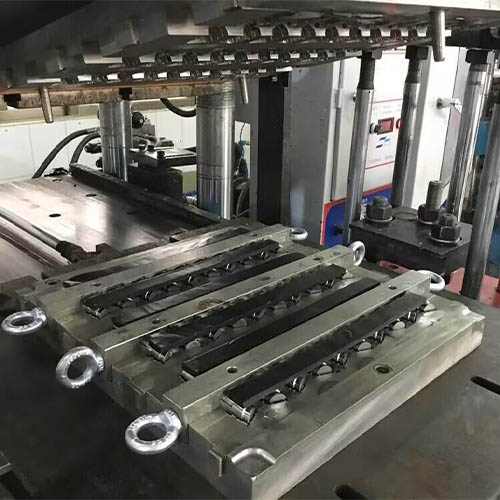

Compression molding machines use strong presses to shape materials. These presses use heat and pressure inside the mold. Most factories use hydraulic presses because they give steady force. Some presses can push with up to 2,000 tons of pressure. Bigger parts need larger machines. Smaller parts use presses with less force.

Operators set the temperature and pressure on the machines. They pick the right settings for each material and part. Some machines have digital controls to help workers. These controls keep the process steady. This makes sure every part is the same. Compression molding machines also have safety features to keep workers safe.

Tip: Picking the right machine helps companies save energy and cut waste.

Mold Types

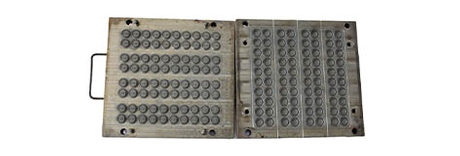

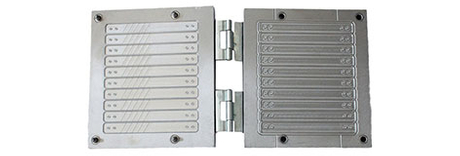

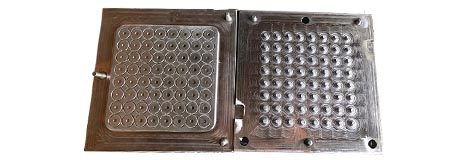

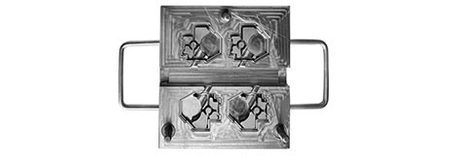

Compression molding machines use different molds to shape materials. The mold type changes the quality, cost, and speed of making parts. Each mold works best for certain parts and materials.

Open Flash

Open flash molds let extra material flow out during pressing. This extra material makes a thin ridge called flash around the part. These molds are easier and cheaper to make. But they create more waste. Workers must trim the flash after taking out the part. Open flash molds are good when a small ridge is not a problem.

Fully Positive

Fully positive molds have a deep space and a plunger at the bottom. These molds do not let much material escape. Machines with these molds need the right amount of material. If there is too much, the mold will not close. If there is too little, the part will not fill out. Fully positive molds are best for strong parts with deep shapes.

Semi-Positive

Semi-positive molds mix features from open flash and fully positive molds. These molds have a ridge and a land to control the plunger. Machines with these molds allow some flash but control its thickness. This design helps balance material flow and part quality. Semi-positive molds are good for parts that need controlled flash and even density.

The table below shows how the three main mold types compare:

Compression molding machines let companies pick the best mold for each job. The right mold helps make strong, accurate, and low-cost parts.

Compression Molding Benefits

Cost

Compression molding helps companies save money. The molds are simple and last a long time. This means companies pay less at the start. For small or medium batches, it costs less than injection molding. Look at the table below to see the cost differences:

Compression molding molds can be about one-tenth the price of injection molds. This big price gap makes it a smart pick for fewer or simple parts. But, it takes more time and work, so each part can cost more if you make only a few. For big batches or tricky shapes, injection molding can save more money over time.

Note: Companies pick compression molding when they want to spend less at first and do not need millions of parts.

Simplicity

Compression molding is easy for workers to use. The steps are simple and do not need fancy machines. Workers put heated material in an open, hot mold, close it, and press down. This method is old and trusted.

• Setup costs are low, so companies can start fast.

• The process does not waste much material, which saves money.

• Heavy plastic parts with smooth surfaces are easy to make.

• Workers control the amount of material, heat time, melting temperature, pressure, and cooling time.

• It is easy to switch from metal parts to compression-molded parts because the shapes are often alike.

Compression molding is less complicated than injection molding but more flexible than some other ways. Its simple steps are a big reason people like it.

Large Parts

Compression molding is good for making big parts. It can make things from very small up to about 30 inches wide. It works best for large, flat items. The size depends on how strong the press is and how big the mold plates are.

• Presses with 500 to 4000 tons of force can make big parts.

• The process can handle thick and heavy things that other methods cannot.

• The main limits are how strong the press is and how big the mold is.

Companies use compression molding for car panels, electrical boxes, and other big things. Making large parts with strong, smooth surfaces is a main reason many industries use this method.

Material Range

Compression molding works with many kinds of materials. This makes it useful in lots of industries. Manufacturers can use thermosetting plastics, thermoplastics, silicone, and rubber. They also use special compounds like BMC and SMC. These materials help make parts that are strong or flexible. Some parts can resist heat or chemicals.

The table below shows how compression molding and injection molding compare for material range:

Compression molding is great for strong materials and composites. It can shape tough parts that last a long time. For example, SMC and BMC make panels with chopped fiber strands. These fibers spread out and make the part stronger. Injection molding cannot do this as well. That is why compression molding is better for strong, light panels in cars and planes.

Rubber and silicone work well in compression molding too. These materials stay bendy after molding. They help make seals, gaskets, and parts that need to stretch. Many medical and food products use silicone parts made this way. The process can use unvulcanized rubber. The rubber cures and hardens inside the mold. This gives the part the right shape and strength.

Thermoplastics are also used in compression molding. These plastics get soft when hot and hard when cool. They are good for big or simple parts. Thermosetting plastics get hard and cannot be reshaped after curing. These materials resist heat and chemicals. They are used in electrical and car parts.

Note: Compression molding can use many materials. This gives manufacturers more choices. They can pick the best one for each job. Some jobs need strength, others need flexibility, or resistance to heat and chemicals.

Compression Molding Limitations

Complex Shapes

Compression molding is good for simple and big parts. But it has problems with complex shapes. It cannot make parts with lots of small details or undercuts. The material does not always spread out the same way in the mold. This can cause problems like air bubbles or empty spots. When a part has many tiny features, compression molding is not as exact as injection molding.

• It cannot make deep grooves or sharp corners easily.

• It has trouble making things like threads or holes in the mold.

• Big parts are possible, but not with lots of small details.

Injection molding is better for tricky shapes. It can make parts with more details and special features without extra work. Compression molding does not use gates, so the tools last longer and the parts look smooth. But it is not as good for parts that need fine details.

Tip: Compression molding is best for simple shapes and thick parts. If you need lots of small features, injection molding is better.

Cycle Time

Cycle time means how long it takes to make each part. Compression molding is slower than injection molding. It takes time to load the material, press it, cure it, and cool it. Workers or robots must put in and take out each part. This extra work makes each cycle take longer.

• Compression molding is slower because the mold must cool down.

• Loading and unloading by hand or robot adds more time.

• Injection molding machines can work by themselves and make parts faster.

Thermoset injection molding can make each part in half the time. Faster cycles mean more parts made every day. Compression molding is good for small or medium batches. But it cannot make as many parts as fast as injection molding.

Note: Companies use compression molding when saving money or picking special materials matters more than speed.

Surface Finish

Surface finish is how smooth or detailed the outside of a part looks. Compression molding can make parts look nice. Not having gates helps stop marks on the surface. But there are still some limits.

• If the material does not flow right, the surface can have ripples or rough spots.

• Air bubbles or empty spaces can show up if the mold does not fill all the way.

• The finish may not be as smooth or detailed as with injection molding.

Injection molding can make parts with very fine textures or shiny surfaces. Compression molding is best when a simple, smooth look is enough.

For products that need a perfect look or lots of detail, companies often pick injection molding instead of compression molding.

Compression Molding Applications

Compression-Molded Parts

Compression-molded parts are used in many industries. This process makes big and strong items. These parts usually have simple or curved shapes. Factories use compression molding for car panels, kitchen tools, and sports gear. It works well for large shapes that other ways cannot make. Polyester fiberglass resin systems and high-performance polymers like PEEK and PPS are often used for these parts.

The table below shows where these parts are found:

These examples show how compression-molded parts help in many ways. Factories choose this method because it saves money and can make very large shapes.

Automotive

Car makers use compression molding for many things. They pick this process to make big and light body panels. Hoods, fenders, and spoilers are often made this way. These parts must be strong but not heavy. Compression molding helps reach these goals.

Engineers also use this process for inside car parts. Door panels, dashboards, and seat bases are made with compression molding. The method lets them use special composites that do not rust and make cars lighter. This helps cars use less gas and last longer.

Some car parts made this way are:

• Outside panels like bumpers and trunk lids

• Engine covers under the hood

• Inside trim and seat frames

Car parts made by compression molding must handle stress, heat, and shaking. The process lets makers design parts that fit these needs.

Electrical

Compression molding is important for electrical uses. Factories use it to make insulation and protective covers. These parts must be strong and stand up to high heat. They keep electrical equipment safe in tough places.

Common electrical parts made this way are:

• Covers for switches and sockets

• Faceplates for outlets and meters

• Insulation barriers and covers for machines

Makers use thermosetting plastics like epoxy, phenolic, and silicone resins for these parts. They often add glass or carbon fibers to make them stronger. These materials help the parts resist heat and electricity. After molding, some parts get extra heating to make them stronger and lower stress.

Note: Compression-molded parts for electrical uses must meet strict safety and work well for a long time in hard places.

Consumer Goods

Compression molding is used to make many things we use every day. Companies pick this process because it makes items strong and long-lasting. They can use different materials like thermoplastics, thermosets, and elastomers. This helps them make products for many needs. It also lets them design items that last and look nice.

Some things made with compression molding are:

• Wellington boots

• Seals and gaskets

• Door stops

• Chair feet

• Machinery parts

These items must be tough for daily use. Compression molding makes them strong and hard to break. The process also lets companies use fun shapes and colors. This helps their products get noticed in stores.

There are many reasons companies like compression molding:

• Molds are simple, so tooling costs stay low.

• It works well for small or medium batches, so it is good for new ideas.

• There is less waste because there are no gates, sprues, or runners. This saves money and helps the planet.

• The process can use recycled materials, which is better for the environment.

• Companies can make big or thick parts, as long as the press can handle it.

The table below shows why compression molding is good for consumer goods:

Many companies use compression molding because it is easy and saves money. They can make new products fast and change designs when needed. This makes compression molding a smart way to make many consumer goods.

Compression Molding vs. Other Molding Processes

Injection Molding

Injection molding is a common way to make plastic parts. Machines melt plastic pellets until they turn into liquid. The liquid plastic is pushed into a closed mold using high pressure. The plastic cools down fast and takes the shape of the mold. Factories use injection molding to make many things, like toys and car parts.

The table below shows how compression molding and injection molding are different:

Injection molding is best for making lots of parts quickly. It can make parts with small details. This process uses many kinds of thermoplastics and some thermosets. But, the molds cost more money and take longer to make. Compression molding is better for smaller batches and for materials that need heat to get hard, like thermosets and rubber.

Injection molding is fast and makes detailed parts. Compression molding costs less for small batches and special materials.

Transfer Molding

Transfer molding is another way to shape plastics and rubbers. Workers put the material in a chamber called a transfer pot. A plunger pushes the material through small holes into a closed mold. The material fills the mold, gets hot, and hardens into the final part.

The table below shows the main differences between compression molding and transfer molding:

Transfer molding makes parts with tighter shapes and more details. It is used in places like airplanes and electronics where parts must be exact. Compression molding is easier and cheaper but may need extra steps like trimming.

When to Use Compression Molding

Factories pick compression molding when they want to save money on small or medium batches. This process works well for thermosets, rubber, and composites. It is also good for making test parts and for shapes that do not need tiny details.

• Compression molding is best for:

• Small batches and test parts

• Materials that need special heat or flow

• Simple or thick shapes

• Uses in cars, planes, and healthcare

• Things that matter when choosing:

• Material properties, like how it flows and handles heat

• Part shape, such as wall thickness and angles

• Mold design, which must handle heat and pressure

• Process settings like temperature, pressure, and curing time

Tip: Compression molding is great when companies want strong parts and do not want to spend a lot on molds.

This process is not good for very tricky shapes or huge numbers of parts. But it is still a top pick for making strong, reliable parts from thermosets or rubber.

Compression molding uses heat and pressure to shape materials into strong parts. This way is good because it saves money and does not waste much. It is great for making big, simple parts for cars and planes.

• Companies spend less on tools and the molds last longer. They also use material well and do not waste much.

• Compression molding is best for bigger shapes and when making fewer parts.
  It does not let you make as many different shapes as injection molding. But it is better when you want to spend less and use less material. Pick compression molding if you need simple, tough parts that always turn out the same.




FAQ

What materials work best in compression molding?

Manufacturers use thermosets, thermoplastics, rubber, and composites. Each one has its own strengths. Thermosets can handle heat well. Rubber is bendy and flexible. Companies pick the material that fits what the part needs.

How does compression molding differ from injection molding?

Compression molding shapes material with heat and pressure in an open mold. Injection molding pushes melted plastic into a closed mold. Injection molding is faster and makes parts with more details. Compression molding costs less for big, thick, or simple parts.

Can compression molding make complex shapes?

Compression molding is best for simple or thick parts. It has trouble with shapes that have lots of small details or deep grooves. Injection molding is better for tricky designs. Compression molding works well for big, flat, or gently curved things.

What industries use compression molding?

Many industries use compression molding. Car makers, electronics companies, and appliance makers use it. Medical device makers and sports brands use it too. This process helps make strong and reliable parts for many products.

Is compression molding environmentally friendly?

Compression molding makes less waste than some other ways. It uses just the right amount of material. It can also use recycled or earth-friendly materials. Many companies pick it to save money and help the environment.

How long does the compression molding process take?

Compression molding usually takes longer than injection molding. Each cycle can last a few minutes. The time depends on the material, part size, and how long it needs to cure. Workers must load and unload each part, which adds more time.

What are common defects in compression-molded parts?

Common problems are air bubbles, parts not filled all the way, and marks on the surface. These happen if the material does not flow right or the mold is not set up well. Careful prep and the right settings help stop these defects.
