Advantages And Disadvantages of Compression Moulding

What Is Compression Moulding?

Compression moulding is a widely used manufacturing process that shapes materials—primarily thermoset rubber and thermosetting plastics—into desired forms using heat and pressure. Developed in the mid-1800s, it remains a vital solution in industries producing durable rubber products. It's particularly suitable for low to medium production volumes, where tooling costs and machine setup matter more than output speed.

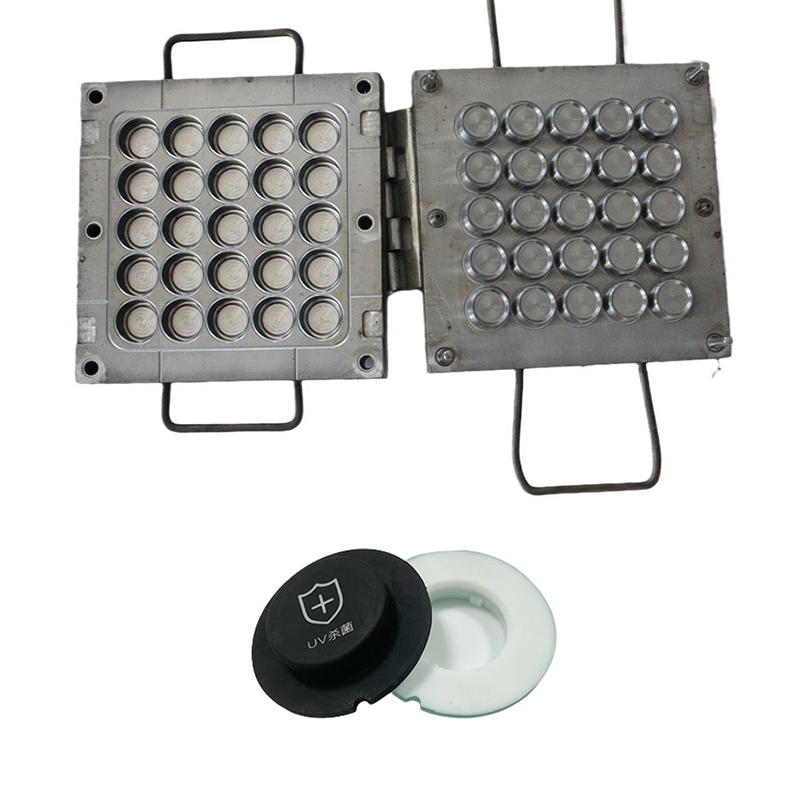

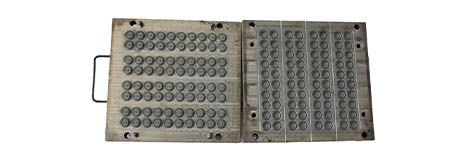

In Compression moulding, a rubber or plastic preform is placed directly into a heated mould cavity. The mould then closes, and the applied pressure compresses the material, forcing it to conform to the shape of the mould. As heat activates the material, a chemical cross-linking process begins, especially for rubber compounds. This process is known as vulcanisation, giving the product its permanent structure and mechanical properties.

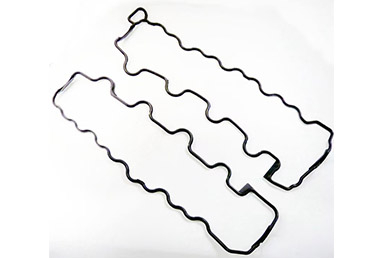

This technique is commonly used to produce bulky items, like seals, gaskets, machine feet, chair tips, and even wellington boots. Because of its simplicity, it's still a go-to method for parts that are too large or thick for injection moulding or transfer moulding.

Key Features of Compression Moulding

Why Manufacturers Still Choose Compression Moulding

Despite being an older method, Compression moulding provides several advantages that keep it relevant. It's especially useful for businesses needing durability, low tooling investment, and flexibility in size and shape. Below, we’ll dive deep into the advantages and disadvantages of Compression moulding, supported by data and real-world comparisons.

Advantages of Compression Moulding

1. Lower Tooling Costs

One major reason manufacturers choose Compression moulding is the cost of tooling. Since it doesn’t require injection runners, gates, or sprue channels, the tooling structure is simpler. Most tools can be crafted from aluminium or lower-grade steel.

• Tool cost reduction: up to 50% less than injection moulding

• Ideal for prototypes or short production runs

• Less complexity equals shorter lead times for tool development

2. Cost-Effective for Small Batches

For low-volume production (1,000–10,000 units), Compression moulding is more affordable than injection moulding. Setup time is shorter, and the cost per part becomes manageable without requiring massive capital investment.

3. Good for Large or Thick Parts

Compression moulding allows larger blanks and thicker parts. There's no need for barrel limits like in injection presses.

• Suitable for items over 1 kg

• Great for parts with variable wall thickness

• Perfect for heavy-duty industrial components

4. No Gates, Sprues, or Runners

Since the material is directly loaded into the cavity, there's less material waste and no excess flow paths to clean or trim. This not only reduces material costs but also simplifies tool design.

5. Simplified Production Process

Operators manually place the preform, align the tool, and run the cycle. It doesn’t need high levels of automation or expensive machinery.

• Ideal for operations in developing countries or remote sites

• Allows manual control over curing and moulding conditions

6. Material Flexibility

Works well with a broad range of rubber compounds and resins. From EPDM, silicone, to neoprene, it’s adaptable for many end-use environments, including automotive and oil & gas.

Disadvantages of Compression Moulding

1. Higher Waste Levels

To ensure proper cavity fill and air removal, overfilling is standard. The excess becomes flash, which must be manually trimmed.

• Flash waste rate: approx. 10% to 15%

• Thermoset materials can't be re-melted or reused

• Total material cost increases for every batch

2. Longer Cycle Times

Due to the need to heat the entire preform from the mould contact surface, cycles can be slow—especially for thicker parts.

This slower speed limits its use for high-volume production.

3. Manual Labour and Handling

Unlike fully automated systems like injection moulding, Compression moulding often requires:

• Manual placement of preforms

• Manual de-moulding

• Manual trimming

This raises labour costs, especially for larger parts.

4. Limited to Simple Geometries

The flow behavior of the material is restricted. Intricate features like ribs, threads, or undercuts are hard to form without defects.

• More prone to air traps, voids, and knit lines

• Poorer control over dimensional accuracy

5. Contamination Risk

Pre-cured rubber blanks are exposed before being inserted into the tool. Any dust or particles can embed into the surface of the final part.

• Increases reject rate

• Affects cosmetic appearance

• Less consistent than injection or cast moulding

6. Flash Control Issues

Flash must be trimmed off, often by hand. Flash lines are more pronounced than in other moulding techniques, potentially affecting tolerances and visual appeal.

7. Tool Wear and Damage

Because tools aren’t always bolted into presses, they can shift during operation. Frequent tool handling and loading can cause:

• Edge damage

• Surface wear

• Loss of fine detail in part features

Compression Moulding vs Cast Moulding

To give a clearer picture of Compression moulding in today's manufacturing environment, let’s compare it to cast moulding, another popular technique for thermoset products.

Cast moulding is perfect for complex shapes and high volume, while Compression moulding shines when durability, simplicity, and flexibility are needed for mid-sized runs.

Modern Applications of Compression Moulding

With rising demands in automotive, aerospace, construction, and medical industries, Compression moulding plays a key role. It’s widely used for:

• Rubber bushings

• Insulating components

• HVAC gaskets

• Foot pads and anti-vibration mounts

• Oil-resistant seals and flanges

Its appeal lies in its cost-effective adaptability and ease of scaling for rugged or large-sized parts.

Latest Trends in Compression Moulding

Sustainability Focus

As industries look for greener manufacturing, Compression moulding is being optimized to reduce waste and energy usage:

• Use of pre-cut blanks to minimize overfill

• Incorporation of recycled materials in blends

• Advanced flash-less tooling designs

Digital Integration

Smart presses are enabling:

• Real-time temperature and pressure control

• Predictive maintenance of tooling

• Better traceability and quality assurance

These upgrades make Compression moulding more competitive in precision-demanding sectors.

Final Thoughts

Compression moulding remains an indispensable technique in modern manufacturing. While it comes with limitations—slower cycles, more waste, and higher labour needs—it excels in areas where cost-effective tooling, simple geometries, and large part capabilities matter.

Understanding both the advantages and disadvantages of Compression moulding empowers businesses to make the best production choice. When selected correctly, this traditional process offers a perfect balance between performance, flexibility, and cost.

If your application demands durable, bulkier, or cost-sensitive parts, Compression moulding might just be the ideal solution.

Summary Table: Is Compression Moulding Right for You?
