How Much Does A Compression Mold Cost?

Introduction to Compression Mold Cost

Compression molding is one of the oldest plastic manufacturing methods. It continues to serve various industries requiring durable, high-strength molded parts. However, many businesses still ask the essential question: How much does a compression mold cost? This article provides an in-depth answer. It explores the multiple cost factors, design variables, and production implications of compression molds.

Whether you're in automotive, aerospace, consumer products, or industrial manufacturing, understanding the cost of compression molding is key to managing budgets and timelines. Costs can vary dramatically—from a few hundred dollars for a prototype to tens of thousands for high-volume, high-precision production tools.

This guide covers real-world cost scenarios, manufacturing technologies, and material considerations, helping you make cost-efficient decisions for your next project.

Understanding What a Compression Mold Is

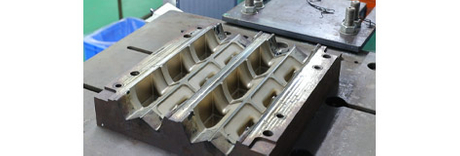

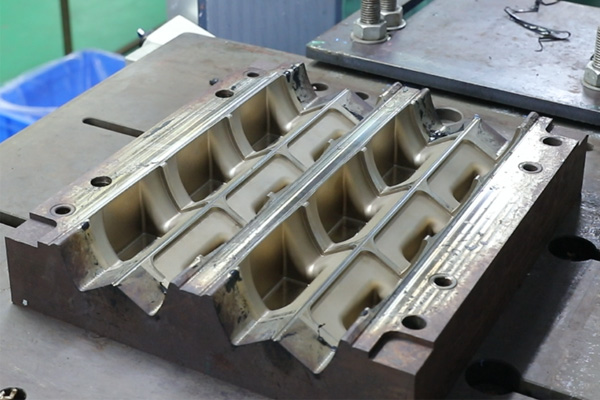

A compression mold consists of a two-part cavity used in the compression molding process. Preheated material (often thermosets or rubbers) is placed into the open cavity. The mold then closes, applying pressure and heat, causing the material to form and cure into the final part shape.

This process is ideal for bulky or thick-walled parts. It's less automated than injection molding, but it’s more cost-effective for small-to-medium volume production, larger parts, or when using flexible materials.

Average Cost Breakdown of a Compression Mold

Note: These are ballpark figures. Costs depend on size, part geometry, cavities, and finish requirements.

Key Cost Drivers for Compression Mold Pricing

1. Mold Size and Complexity

Larger molds require more material, machining time, and press capacity. Complex geometries with fine tolerances or undercuts increase tooling complexity. Multi-cavity compression molds cost more than single-cavity molds due to precision requirements and duplication.

2. Material of the Mold

• Aluminum: Easy to machine, cheaper upfront, best for medium-volume use.

• Tool Steel (P20, H13, etc.): Costlier but supports high wear and thermal resistance.

• Epoxy/Composite Molds: Useful for prototyping or large, low-pressure components.

3. Surface Finish and Tolerances

Molds with polished finishes or tight dimensional tolerances require additional machining and post-processing, increasing overall costs.

4. Production Volume Goals

Mold longevity affects cost-per-part. For short runs (<1,000 parts), an aluminum mold may suffice. For high volumes (>100,000 parts), investment in tool steel compression molds is justified.

5. Mold Design and Engineering Services

Designing a mold often requires CAD modeling, flow analysis, and DFM adjustments. Engineering design costs range from $500 to $5,000+ depending on part complexity.

Compression Mold vs Injection Mold Cost Comparison

Compression molds generally cost 40%–60% less than injection molds for similar applications. But the trade-off includes longer cycle times and higher labor.

Cost Factors Explained by Production Stage

Mold Fabrication

• Design: CAD model creation, DFM checks.

• Machining: CNC or EDM machining to carve cavities.

• Assembly: Bolting or clamping mold plates together.

• Testing: Mold trial runs to fine-tune parameters.

Production Cost per Part

• Material Loading: Pre-measured blanks placed manually.

• Pressing: Heat + pressure applied.

• Cooling: Longer than injection molding.

• De-molding: Manual extraction, trimming flash.

The mold itself might cost $5,000, but labor, cycle time, and post-processing affect total part cost.

How to Estimate Total Cost per Part

Here’s an example of calculating compression molded part cost:

As you scale to 20,000+ parts, the compression mold cost per unit drops dramatically.

How to Reduce Compression Mold Costs

• Simplify Design: Eliminate unnecessary part features.

• Use Aluminum: Ideal for medium runs and faster machining.

• Limit Cavities: Multi-cavity molds increase complexity.

• Apply DFM Principles: Design for manufacturability cuts rework and scrap.

• Prototype with 3D Printing: Test fit/form before investing in final tooling.

When Is Compression Molding the Right Choice?

Choose compression molding if:

• You're making large, simple rubber or plastic parts.

• Material waste must be minimized.

• The part is thick-walled or heavy-duty.

• You’re producing 1,000 to 20,000 units.

• Lower tooling cost is your priority.

Common applications:

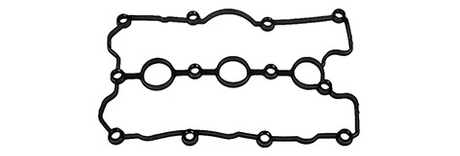

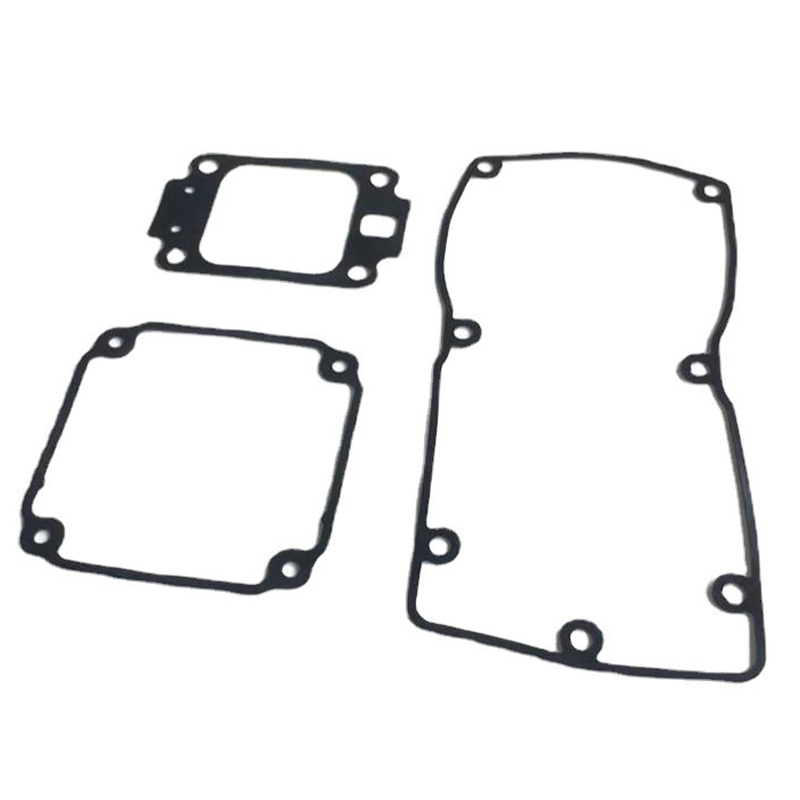

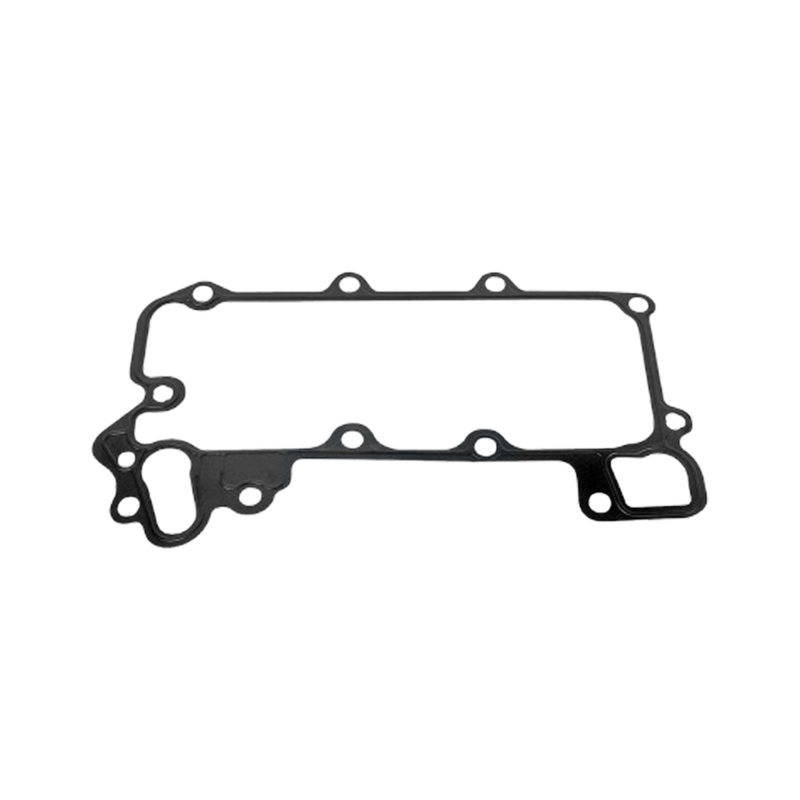

• Automotive bumpers, gaskets

• Appliance housings

• Footwear soles

• Electrical insulators

• Aerospace seals

Compression Molding Trends and Technologies in 2025

• Sustainable Materials: Biocomposite sheets used with SMC/BMC.

• Smart Molds: Sensors for pressure, temp, and cycle monitoring.

• AI in Mold Design: Predict defects, optimize flow paths.

• Hybrid Molds: Combining 3D printed inserts and steel housings.

• Vertical Molding Machines: Saving footprint, increasing accessibility.

These innovations impact both the compression mold cost and its capabilities.

Final Thoughts: Is Compression Molding Cost-Efficient?

Absolutely—compression molds are cost-effective for medium-scale production. They offer low entry costs, handle thick and flexible materials, and reduce tooling complexity. Despite being slower than injection molding, their ability to mold strong, durable parts at a low tooling cost makes them highly competitive.

By analyzing your product size, material, geometry, and volume, you can determine if compression molding is the right fit.

If you’re considering moving forward, partner with a reputable mold manufacturer who can walk you through design, tooling, and production phases efficiently. Don’t forget to calculate ROI using amortized tooling cost per part.

Compression mold investment done wisely leads to long-term savings and product quality gains.
