Medical device injection molding starts before resin enters a machine.
The process begins during product design. Engineers must consider wall thickness, tolerances, material behavior, sterilization, assembly, and expected production volume.
These early decisions affect mold design and process stability. They also influence inspection methods, cycle time, tooling cost, and future validation work.
Late design changes can create serious problems. They may require mold modifications, new samples, repeated testing, or additional qualification work.
For this reason, medical injection molding should be treated as one connected production system. It links product design, tooling, materials, equipment, quality control, and documentation.
The complete medical injection molding production workflow includes:
Product and specification review
Design for manufacturability
Material selection
Mold design and manufacturing
Medical injection molding machine setup
Molding and cooling
Inspection and secondary processing
Process validation
Controlled production release
Yeeshine-Tech publicly presents integrated capabilities covering engineering design, CNC prototyping, mold manufacturing, and plastic injection molding. Its website also identifies medical injection molding among its manufacturing applications. Buyers should confirm project-specific quality, validation, material, and cleanliness requirements before production begins.
This guide explains how medical injection molding works from design review through stable production.
Note: Medical device injection molding is an end-to-end workflow, not only a machine cycle.
The medical device injection molding process follows several controlled stages.
Each stage affects the quality, consistency, and traceability of the finished component.
The project begins with the CAD model and product specifications.
Engineers review the part’s intended function. They also identify critical dimensions, sealing areas, assembly features, and cosmetic surfaces.
The review should confirm:
Intended device use
Patient contact conditions
Target regulatory markets
Mechanical loading
Chemical exposure
Sterilization method
Expected production volume
Required product life
A diagnostic housing has different requirements from a fluid-contact connector. An implant-related component requires even closer material and process review.
The team should also define critical-to-quality features.
These may include:
Sealing dimensions
Snap-fit geometry
Optical surfaces
Fluid channels
Threaded features
Electrical interfaces
Assembly clearances
Critical features often receive tighter process monitoring and more frequent inspection.
Design for manufacturability, or DFM, identifies molding risks before tooling begins.
Engineers review:
Wall thickness
Thick-to-thin transitions
Draft angles
Ribs and bosses
Undercuts
Sharp corners
Parting lines
Gate locations
Ejector locations
Dimensional tolerances
Uniform walls support more even filling and cooling. Sudden thickness changes may create sink marks, voids, or internal stress.
Draft angles help the part leave the mold. Poor draft may cause scratches, deformation, or difficult ejection.
Ribs can improve strength without creating very thick sections. However, oversized ribs may produce visible sink marks.
Undercuts may require sliders, lifters, collapsible cores, or design changes. These features can increase tooling cost and maintenance needs.
Yeeshine-Tech uses DFM analysis to review gate position, parting lines, ejection, shrinkage, and other mold requirements before manufacturing.
Tip: Complete DFM before approving production tooling, not after the first mold trial.
Material selection starts with the final application.
Some components require documented medical-grade resins. Others may use approved engineering plastics supported by project-specific testing, traceability, and quality controls.
The selected material must support the device’s mechanical, chemical, biological, and manufacturing requirements.
Common evaluation factors include:
Strength
Flexibility
Transparency
Chemical resistance
Heat resistance
Sterilization compatibility
Biocompatibility
Moisture sensitivity
Dimensional stability
Supplier documentation
Common materials include polypropylene, polyethylene, polycarbonate, polystyrene, PEEK, ABS, and thermoplastic elastomers.
However, the polymer name alone is not enough. Each specific grade may have different additives, test data, processing requirements, and supplier controls.
The manufacturer should confirm:
Approved resin grade
Approved resin supplier
Material lot number
Certificate documentation
Drying requirements
Regrind restrictions
Change-notification requirements
Material should not be selected only by price.
A low-cost resin may create molding, sterilization, appearance, mechanical, or compliance problems later.

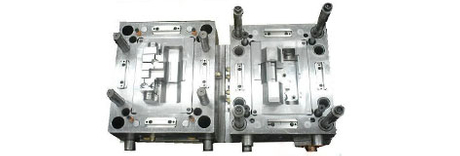

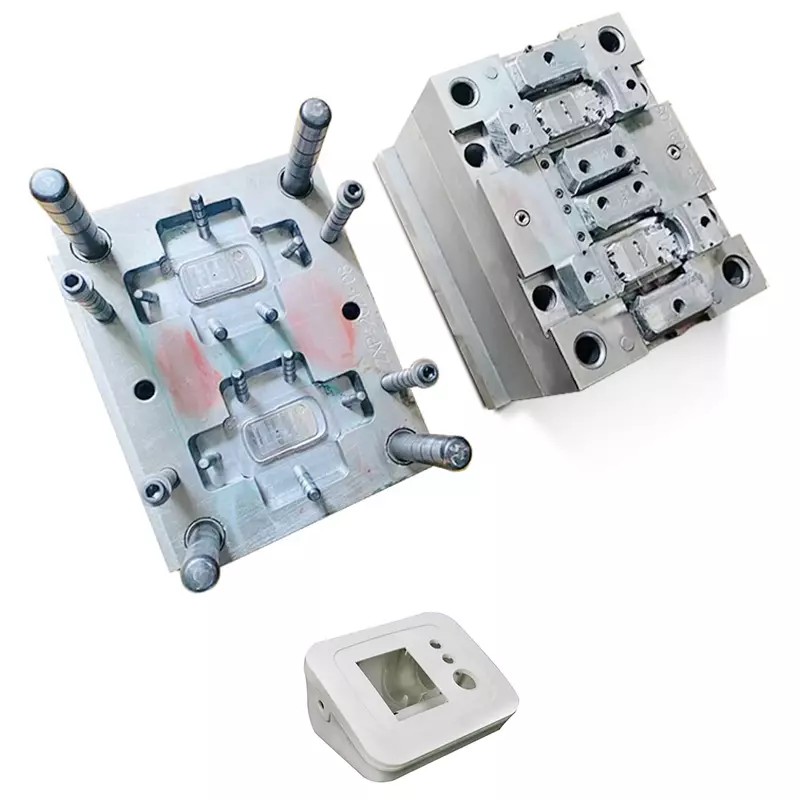

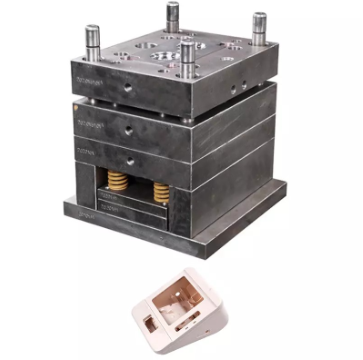

The mold creates the final part geometry.
Its design affects dimensions, appearance, cycle time, and long-term production stability.
Important mold design elements include:
Number of cavities
Core and cavity geometry
Gate location
Runner balance
Venting
Cooling channels
Ejection system
Mold steel
Surface finish
Expected tool life
The cavity layout should match the required production capacity.
A multi-cavity mold can increase output. However, every cavity must fill, pack, cool, and eject consistently.
Gate location controls how resin enters the component. Poor gate placement may create:
Weld lines
Air traps
Uneven packing
Flow marks
Visible gate marks
Dimensional variation
Vents allow trapped air to escape.
Inadequate venting may cause burn marks, incomplete filling, weak weld lines, or unstable dimensions.
Cooling channels remove heat from the molded part. Their layout affects cycle time, shrinkage, warping, and dimensional stability.
Surface requirements must also be defined before tooling.
A component may require:
Polished surfaces
Textured surfaces
Optical areas
Sealing surfaces
Laser-marking zones
Cosmetic appearance standards
The mold should be tested before process validation begins.
Engineers evaluate filling, packing, cooling, ejection, dimensions, appearance, and repeatability during mold trials.
A medical injection molding machine setup requires controlled preparation.
The production team first confirms:
Machine identification
Mold identification
Approved work instructions
Resin grade and lot
Required drying conditions
Process parameter settings
Cleanliness requirements
Inspection equipment status
Some medical plastics absorb moisture during storage.
They must be dried before molding according to approved conditions.
Incorrect drying may cause:
Bubbles
Silver streaks
Voids
Reduced strength
Material degradation
Unstable dimensions
The resin should move through a controlled handling system. This reduces contamination, dust exposure, and material mix-ups.
The team then sets the process conditions.
Typical settings include:
Barrel temperature
Mold temperature
Injection speed
Injection pressure
Holding pressure
Screw speed
Back pressure
Cooling time
Clamp force
These values should come from approved process development work.
Operators should not adjust critical settings without authorization and documentation.
Once preparation is complete, the machine begins the defined cycle.
The medical injection molding process steps are:
The mold closes.
The clamping unit applies force.
The screw prepares molten resin.
Resin enters the mold cavity.
Packing pressure compensates for shrinkage.
The component cools and solidifies.
The mold opens.
Ejectors release the part.
The cycle then repeats.
After the cavity is nearly filled, packing pressure supplies additional material to compensate for shrinkage. It helps stabilize part weight, dimensions, and surface quality during cooling.
Cooling often takes a large portion of total cycle time.
Reducing it too far can cause:
Warping
Ejector marks
Dimensional change
Surface deformation
Assembly problems
The process should balance output and quality.
A fast cycle provides little value when it creates unstable components, higher scrap, or repeated validation failures.
Molding does not always create a finished product.
Parts may require:
Gate removal
Flash trimming
Printing
Laser marking
Ultrasonic welding
Bonding
Machining
Assembly
Cleaning
Packaging
Medical injection molding quality control begins during production. It should not wait until the batch is complete.
Inspectors may check:
Dimensions
Surface defects
Flash
Short shots
Sink marks
Warping
Voids
Assembly fit
Leak performance
Functional performance
Production and inspection records should remain linked to the material lot and manufacturing batch.
Only approved components should enter the next process.
Note: Final inspection cannot correct an unstable molding process.
An injection molding machine has three main areas:
Injection unit
Clamping unit
Mold
Plastic pellets enter through the hopper.
A rotating screw moves them through the heated barrel. Heater bands and mechanical shear melt the resin.
The screw also mixes the molten resin and meters a defined shot volume in front of the screw before injection.
Excessive heat can damage some medical plastics.
Poor temperature control may reduce strength, change color, create gas, or alter material viscosity.
The clamping unit keeps the mold closed during injection.
It must provide enough force to resist cavity pressure.
Insufficient clamp force may allow resin to escape and create flash.

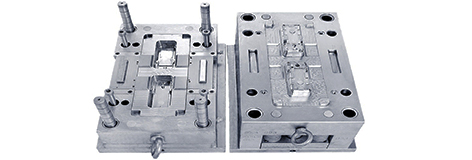

The mold contains:
Core
Cavity
Gates
Runners
Vents
Cooling channels
Ejector system
After cooling, the mold opens.
Ejector pins, sleeves, or plates then release the part.
Cycle Stage | Main Function |
|---|---|
Clamping | Holds the mold closed |
Plasticizing | Melts and prepares the resin |
Injection | Fills the mold cavity |
Packing | Compensates for shrinkage |
Cooling | Solidifies the component |
Mold opening | Separates the mold halves |
Ejection | Releases the finished part |
Tip: Ask whether fill time, pressure, temperature, shot position, and cycle time are recorded for each batch.
Tooling decisions affect every production cycle.
Poor tooling cannot always be corrected through machine settings.
The gate controls resin entry into the cavity.
Its size and location influence:
Filling pattern
Pressure loss
Weld lines
Surface marks
Packing performance
Gate removal
Runner balance becomes critical in multi-cavity molds.
Every cavity should receive resin under similar pressure, temperature, and flow conditions.
Vents remove displaced air.
Poor venting may produce:
Short shots
Burn marks
Trapped gas
Weak weld lines
Surface defects
Cooling controls both production speed and part stability.
Uneven mold temperatures may create:
Warping
Uneven shrinkage
Dimensional variation
Longer cycle times
Conventional cooling channels use drilled water paths.
Conformal cooling channels follow complex part geometry more closely.
The best option depends on part geometry, budget, tool complexity, and production requirements.
Stable mold temperature supports more repeatable dimensions.
Mold steel should match the resin and expected tool life.
Filled or abrasive resins may require harder steel. Corrosive materials may require stronger corrosion resistance.
Surface finish also matters.
Medical components may need:
Polished surfaces
Textured areas
Optical surfaces
Sealing surfaces
Low-friction surfaces
Maintenance records should cover:
Gate wear
Vent cleaning
Moving components
Cooling channels
Ejector systems
Mold repairs
Uncontrolled repairs can change dimensions, cavity balance, or process performance.
Prototype tools support early product evaluation.
Bridge tools support pilot production and initial demand.
Production tools support higher volumes and longer service life.
Tooling Type | Main Purpose | Key Consideration |
|---|---|---|
Prototype | Design testing | Lower volume |
Bridge | Initial production | Faster market transition |
Production | Long-term manufacturing | Higher durability |
Tooling choice affects:
Initial cost
Lead time
Tool life
Production volume
Validation scope
Future design flexibility
Stable parameters support consistent quality.
The approved settings should remain within a defined process window.
Moisture-sensitive resin needs controlled drying.
The manufacturer should record:
Drying temperature
Drying duration
Dryer identification
Material lot
Transfer time
Maximum exposure time
The process should also prevent contamination between different materials.
Temperature drift may change melt viscosity and filling behavior.
Injection speed affects how resin fills the cavity.
Pressure must overcome flow resistance without creating excessive stress.
The transfer point changes control from cavity filling to packing.
Poor transfer timing may cause:
Short shots
Overpacking
Flash
Weight variation
Dimensional drift
Holding pressure compensates for cooling shrinkage.
Excessive pressure may create flash, internal stress, or difficult ejection.
Cooling time depends on:
Resin type
Wall thickness
Mold temperature
Part geometry
Cooling channel design
Early ejection may deform the component.
Excessive cooling increases cycle time and production cost.
The correct setting balances stable dimensions and efficient output.
Scientific molding uses production data to define robust operating conditions.
Engineers may monitor:
Fill time
Peak pressure
Transfer position
Melt temperature
Mold temperature
Cavity pressure
Part weight
Cycle consistency
These signals can identify process drift before defect rates increase.
Tip: Optimize cycle time only after dimensions and process capability become stable.
Medical injection molding process validation confirms that the approved process can repeatedly produce acceptable parts.
The required scope depends on the component, device risk, customer requirements, and regulatory strategy.
Installation Qualification confirms that required equipment is installed correctly.
It may verify:
Machine identification
Utility connections
Mold installation
Monitoring equipment
Calibration status
Safety systems
Operating procedures
Operational Qualification challenges the process across defined limits.
Engineers test upper and lower settings for important parameters.
The goal is to establish a reliable operating window.
Acceptable parts should be produced across the proposed process range.
Performance Qualification uses normal production conditions.
It uses approved:
Materials
Equipment
Tooling
Operators
Work instructions
Inspection methods
The team evaluates consistency across batches or production runs.
Validation does not end after approval.
Routine production should monitor key parameters and product results.
Significant changes may require formal review or revalidation.
Changes may include:
New resin grades
Mold repairs
Machine transfers
New cavities
Process adjustments
Supplier changes
Note: Process validation supports production control; it does not replace risk-based inspection.
Medical injection molding quality control covers materials, production, inspection, handling, and documentation.
The manufacturer should verify material identity before production.
Records may include:
Resin supplier
Material grade
Resin lot
Additive lot
Colorant lot
Receiving inspection
Drying records
Traceability should connect the raw material to the finished batch.
Operators should monitor defects during production.
Typical defects include:
Short shots
Flash
Sink marks
Voids
Warping
Burn marks
Flow marks
Dimensional drift
Critical dimensions may require scheduled measurements.
Automated inspection can reduce handling and detect visible defects.
Quality records should also document:
Nonconforming components
Containment actions
Root-cause investigations
Corrective actions
Final disposition
Cleanroom manufacturing reduces particle contamination through controlled airflow and operating procedures.
Controls may include:
Filtered air
Controlled access
Gowning
Cleaning
Environmental monitoring
Controlled material entry
The required cleanroom class depends on product risk, intended use, and customer requirements.
A dust-free workshop should not automatically be treated as an ISO-classified cleanroom.
Buyers should request:
Actual classification
Monitoring records
Cleaning procedures
Environmental controls
Project-specific cleanliness plans
Clean parts can become contaminated after molding.
Manufacturers should control:
Manual contact
Gate trimming
Assembly
Marking
Temporary storage
Packaging
Transport between work areas
Cleanroom production does not automatically make a component sterile.
Sterilization remains a separate validated process when required.
Some medical products need specialized molding methods.
Insert molding places a prepared component inside the mold.
The insert may be:
Metal
Ceramic
Plastic
Electronic
Preformed tubing
Resin then forms around it.
The process requires accurate insert placement and reliable retention.
Inspectors may check:
Insert position
Bonding
Alignment
Encapsulation
Pull-out strength
Sealing performance
Overmolding adds material over an existing component.
Two-shot molding injects two materials during one automated sequence.
Both methods can create:
Soft grips
Integrated seals
Flexible surfaces
Multi-color features
Combined rigid and flexible parts
Material bonding should be tested and controlled.
The process must also consider shrinkage differences between materials.
Micro-molding produces very small components and features.
It requires:
Specialized tooling
Precise material delivery
Tight temperature control
Accurate measurement systems
Controlled part handling
Common applications may include microfluidic parts, catheter features, and miniature device components.
Liquid silicone rubber molding uses two liquid components.
They are metered, mixed, and injected into a heated mold.
The material then cures inside the cavity.
The process requires specialized control of:
Mixing
Metering
Curing
Flash
Contamination
Material ratio
Mold temperature
A stable production launch follows controlled development stages.
Prototypes help evaluate:
Form
Fit
Function
Assembly
Ergonomics
Basic material behavior
CNC machining and additive manufacturing can support early testing.
However, they do not always reproduce final molded material behavior, shrinkage, or surface quality.
Tool trials evaluate:
Mold filling
Packing
Cooling
Ejection
Dimensions
Surface finish
Process stability
Engineers may adjust gates, vents, cooling, or machine settings.
Pilot parts then support customer review, assembly testing, and functional verification.
Before production launch, the team should approve:
Product specifications
Process settings
Inspection plans
Packaging methods
Material controls
Traceability requirements
Acceptance criteria
Change-control procedures
Required qualification work should also be complete.
Higher volume should not introduce uncontrolled changes.
Adding cavities, molds, or machines requires formal review.
The manufacturer should confirm:
Equivalent equipment performance
Stable dimensions
Updated capacity
Tool maintenance plans
Consistent inspection
Traceable process records
Yeeshine-Tech supports product development through DFM analysis, CNC prototyping, mold manufacturing, and injection molding production. This integrated workflow can reduce handoffs between design and manufacturing. Buyers should confirm project-specific validation, material control, and cleanroom requirements before production begins.
Explore Yeeshine-Tech’s injection molding capabilities.
Tip: Involve the molding supplier before the design and material specifications are frozen.
Medical device injection molding works through a controlled production sequence.
The main steps include:
Review the product design.
Complete DFM analysis.
Select the approved material.
Design and manufacture the mold.
Prepare the machine and resin.
Inject, pack, cool, and eject the component.
Inspect and handle the finished part.
Validate and monitor the process.
Maintain traceability and change control.
Medical production differs from ordinary molding through tighter controls.
It may require:
Greater material traceability
Defined process validation
Risk-based quality control
Controlled manufacturing areas
Detailed production records
Formal change management
Before selecting a supplier, buyers should ask:
Has the design completed DFM review?
Is the resin suitable for the device?
How is the mold designed and maintained?
Which parameters are monitored?
Is process validation available?
How are material lots traced?
Which cleanliness controls apply?
How will production capacity increase?
Medical device injection molding works best when design, tooling, materials, validation, inspection, and documentation are planned together.
This integrated approach supports precise and repeatable production at commercial scale.
A: Resin is prepared, injected into a precision mold, packed, cooled, ejected, inspected, and documented under controlled conditions.
A: They include DFM, material selection, mold design, machine setup, molding, inspection, and process validation.
A: It confirms that defined settings can repeatedly produce acceptable medical components.
A: Tooling is costly, but unit costs fall during medium- and high-volume production.
A: Resin moisture, cooling problems, temperature drift, worn tooling, or inconsistent settings can disrupt cycle time.
