The Science Behind High-Quality Automotive Injection Molding

Automotive injection molding plays a critical role in the modern vehicle manufacturing process, producing precision components that meet the rigorous standards of the automotive industry. From dashboard panels and bumpers to complex under-the-hood components, the science behind injection molding combines material engineering, advanced machinery, and strict quality control to deliver parts that ensure safety, performance, and aesthetic appeal.

In this article, we will dive deep into the science and engineering principles that make high-quality automotive injection molding possible, exploring material selection, mold design, manufacturing technology, and quality assurance processes.

Understanding Automotive Injection Molding

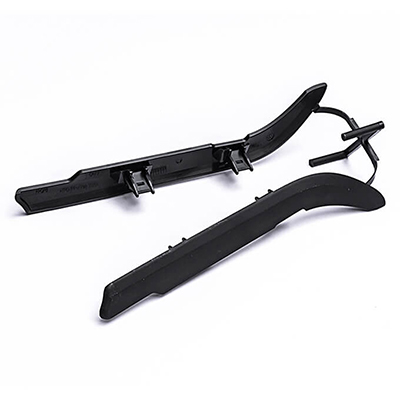

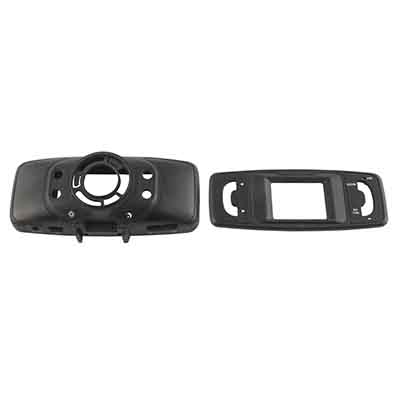

Automotive injection molding is a manufacturing process where molten plastic is injected into a specially designed mold cavity, cooled, and solidified to form a finished part. Its precision and repeatability make it ideal for producing high volumes of consistent automotive components.

In the automotive sector, the parts created through this process must withstand extreme conditions, including high temperatures, mechanical stress, vibration, and exposure to chemicals. Therefore, the science behind automotive injection molding revolves around ensuring strength, durability, and dimensional stability.

Material Science: Choosing the Right Polymers

The foundation of high-quality automotive injection molding lies in material selection. Automotive parts are exposed to varied stresses, so engineers select polymers based on specific performance requirements.

Commonly Used Materials:

• Polypropylene (PP): Lightweight, chemical-resistant, and used for interior and exterior trim.

• Acrylonitrile Butadiene Styrene (ABS): Offers strength and impact resistance, ideal for dashboard panels.

• Polyamide (Nylon): Known for high mechanical strength, often used for under-the-hood components.

• Polycarbonate (PC): High impact strength and optical clarity, used for headlamp lenses.

• Thermoplastic Elastomers (TPE): Provide flexibility and durability for seals and gaskets.

The science involves selecting a polymer with the right balance of mechanical strength, thermal resistance, and manufacturability while ensuring compliance with automotive safety regulations.

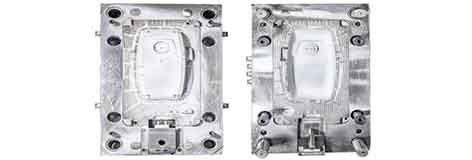

The Role of Mold Design in Quality

A high-quality automotive injection-molded part starts long before the plastic is injected—it begins with a precision-engineered mold. The mold is the heart of the production process, directly influencing the part’s final shape, dimensional accuracy, surface finish, and even mechanical performance.

In automotive manufacturing, where tolerances can be as tight as microns and appearance standards are exceptionally high, mold design plays a decisive role in determining whether a component meets the required specifications.

Key Mold Design Factors:

• Flow Simulation – Modern Computer-Aided Engineering (CAE) tools allow engineers to simulate how molten plastic will flow inside the mold. These simulations can identify potential defects such as air traps, weld lines, sink marks, or short shots before production even begins. By adjusting runner dimensions, gate design, or vent placement in the virtual environment, manufacturers can prevent costly trial-and-error cycles.

• Cooling System Optimization – Uniform cooling is essential for preventing internal stresses and dimensional warping. Advanced cooling designs, such as conformal cooling channels created with additive manufacturing, help maintain consistent temperatures across the mold cavity. This not only improves part uniformity but also reduces cycle time, boosting productivity.

• Gate Placement – The location and type of gates—whether edge gates, submarine gates, or hot runners—have a direct impact on material flow balance and stress distribution. Well-positioned gates ensure even filling, reduce cosmetic defects, and improve the mechanical integrity of the final part.

• Material Shrinkage Compensation – Every polymer shrinks differently as it cools. Mold designers must account for these shrinkage rates when determining cavity dimensions. In automotive applications, even a fraction of a millimeter’s deviation can cause assembly issues, so precise shrinkage compensation is critical.

Beyond these technical factors, mold engineering in automotive injection molding is both an art and a science. It requires precise calculations, deep knowledge of material behavior under high pressure and temperature, and creative problem-solving skills. A well-designed mold not only produces high-quality parts but also reduces waste, lowers production costs, and ensures consistent results across thousands or even millions of cycles.

Advanced Machinery and Process Control

The machinery used in automotive injection molding is as important as the materials and molds. High-quality machines integrate advanced controls, automation, and monitoring systems to achieve consistent results.

Features of Advanced Injection Molding Machines:

• Precision Injection Units: Control injection speed, pressure, and volume with high accuracy.

• Closed-Loop Control Systems: Continuously monitor process parameters to ensure stability.

• Servo-Driven Technology: Reduces energy consumption and improves repeatability.

• Automated Part Handling: Robots and conveyors enhance efficiency and reduce contamination risks.

The process itself involves precise control over temperature, pressure, and cooling time—small deviations can lead to part defects or performance issues.

Process Optimization for Automotive Standards

Automotive components require a zero-defect approach. Manufacturers use scientific molding principles to optimize the process.

Scientific Molding Steps:

• Material Drying: Removes moisture to prevent defects such as splay or bubbles.

• Melt Flow Control: Ensures uniform viscosity for consistent filling.

• Pressure Profiling: Balances packing pressure to minimize sink marks and voids.

• Cycle Time Optimization: Improves efficiency without compromising quality.

Statistical process control (SPC) tools are used to monitor production in real time, ensuring every part meets automotive industry standards.

Quality Control and Testing

The automotive industry demands stringent quality control. Defective parts are unacceptable because they can lead to safety risks and costly recalls.

Common Quality Assurance Methods:

• Dimensional Inspection: Using coordinate measuring machines (CMM) to verify dimensions.

• Material Testing: Checking tensile strength, impact resistance, and heat deflection.

• Visual Inspection: Detecting surface defects such as scratches, warpage, or sink marks.

• Functional Testing: Ensuring the part performs as intended under simulated conditions.

Automotive manufacturers often require suppliers to comply with quality management standards, which integrates continuous improvement practices.

Innovations Driving the Future of Automotive Injection Molding

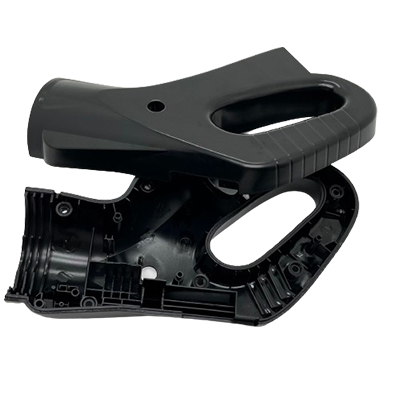

The automotive industry is rapidly evolving, especially with the rise of electric vehicles (EVs) and lightweight design requirements. Innovations in automotive injection molding are focused on sustainability, efficiency, and performance.

Notable Trends:

• Lightweighting: Using fiber-reinforced plastics to reduce vehicle weight and improve fuel efficiency.

• Overmolding and Insert Molding: Combining multiple materials or embedding components directly into plastic parts.

• Recycled Materials: Integrating post-consumer and post-industrial recycled plastics without sacrificing quality.

• In-Mold Decoration (IMD): Enhancing aesthetics with integrated designs and textures.

• Industry 4.0 Integration: Using real-time data analytics and IoT-enabled machines for predictive maintenance and process optimization.

Environmental Considerations and Sustainability

Sustainability is now a major focus for automotive injection molding. Manufacturers are reducing energy use, minimizing waste, and incorporating recyclable materials into production. Advanced machines with energy-efficient servo motors and optimized heating systems help lower carbon footprints while maintaining high output.

Why Quality Matters in Automotive Injection Molding

High-quality automotive injection molding is more than just making a part that fits—it’s about ensuring long-term safety, reliability, and brand reputation. Poor-quality components can result in:

• Mechanical failures under stress.

• Poor fit and finish affecting aesthetics.

• Increased warranty claims and recalls.

• Regulatory compliance issues.

This is why the science of automotive injection molding combines engineering precision, advanced technology, and strict quality control to meet the industry's expectations.

Conclusion

The science behind high-quality automotive injection molding lies in a combination of material expertise, precision mold engineering, advanced machinery, and rigorous quality assurance. Each step of the process is designed to deliver components that meet the extreme demands of the automotive industry, ensuring both performance and safety.

For manufacturers seeking reliable, high-performance automotive injection molding solutions, partnering with an experienced and technologically advanced supplier is key. Yeeshine Tech has the expertise, equipment, and commitment to quality to meet the most demanding automotive standards. Whether you require complex interior components or durable under-the-hood parts, their team can help you achieve excellence in every product.
