How to Use Vacuum Casting for Pre-Production Market Testing

Introduction

Before investing in full-scale tooling, companies often need physical parts to test a product in realistic conditions. Vacuum casting provides a practical solution for pre-series production, allowing manufacturers to produce small batches of detailed parts with properties and appearance close to the intended production version. These high-quality prototypes can be used for customer evaluation, assembly checks, functional testing, and early market feedback.

Compared with 3D printing or CNC machining, vacuum casting can be useful when teams need multiple consistent samples for prototype testing and production validation. The process supports rapid prototyping while providing a cost-effective way to produce several functional parts without immediately building expensive production molds. This makes it valuable during product development, especially when designs need to be tested before mass production.

By using vacuum casting for early market testing, companies can identify design issues, collect user feedback, and confirm product performance before committing to larger manufacturing investments.

What Is Vacuum Casting and How Does It Work?

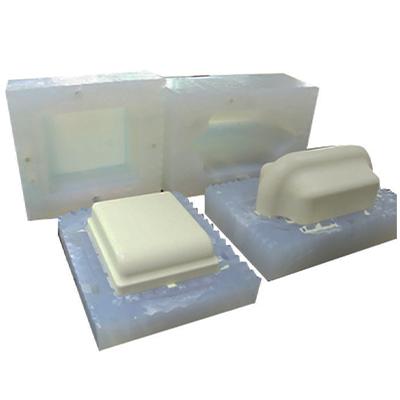

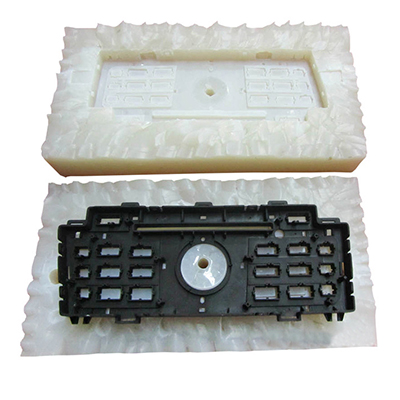

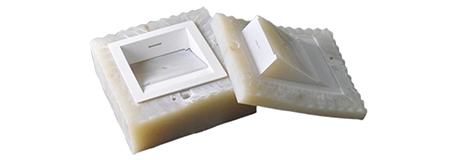

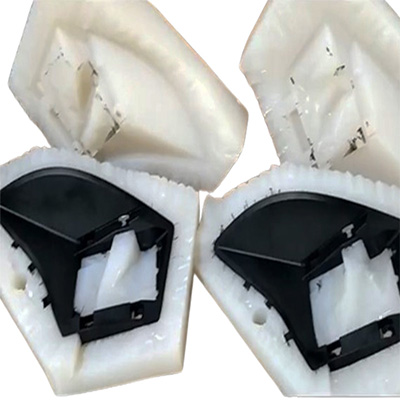

Vacuum casting is a replication process used to produce detailed prototypes and plastic parts in small quantities. The process usually begins with a master model, which can be created through 3D printing or CNC machining. A flexible silicone material is then formed around the master to create silicone molds. After the mold is cured and carefully opened, the original model is removed, leaving a cavity that reproduces its shape and surface details.

During production, liquid polyurethane casting material is mixed and poured into the silicone mold under vacuum conditions. The vacuum helps reduce trapped air and supports accurate reproduction of fine features. After curing, the molded part is removed and finished as required. This method can produce prototypes, functional parts, and other components for small production runs without the cost and lead time of hard production tooling. Because silicone molds can be prepared relatively quickly, vacuum casting offers a cost-effective manufacturing option when companies need consistent samples and quick turnaround during product development.

Why Vacuum Casting Works Well for Pre-Series Production and Testing

Cost-Effective for Low-Volume Production

Vacuum casting is a practical option when companies need a limited number of parts before committing to mass production. Building hard tooling for a small order can create a high upfront cost, especially when the product design is still being evaluated. With reusable silicone molds, manufacturers can produce multiple parts from one master model without investing in a full production mold. This makes the process suitable for low-volume production, pilot runs, customer samples, and early market testing. Compared with 3D printing or CNC machining, vacuum casting can provide a more efficient way to create a group of consistent parts when the required quantity increases beyond a few samples. The lower tooling investment also gives development teams more flexibility to adjust the design before mass production. For companies managing limited quantities, this approach supports cost-effective manufacturing while providing useful physical parts for evaluation and testing.

Material Versatility for Realistic Testing

Another advantage is material versatility. Vacuum casting can use different polyurethane formulations to reproduce properties required for specific prototype applications. Depending on the selected material, parts can be produced with different levels of hardness, flexibility, strength, or visual appearance. This makes it possible to create functional prototypes that provide more realistic feedback than a simple visual model. Silicone itself is mainly used to create the mold rather than the final plastic component, while polyurethane is commonly selected for the cast parts. Engineers can therefore choose a suitable formulation based on whether the prototype needs to demonstrate assembly, handling, impact resistance, or other basic functions. This flexibility is valuable during pre-series production, when teams need to understand how a product may behave before investing in production tooling. By selecting appropriate materials, vacuum casting can support practical functional testing and more meaningful design decisions.

Faster Turnaround for Product Development

Speed is important when a project requires several rounds of testing or customer feedback. Once the master model and silicone mold are ready, additional cast parts can usually be produced without repeating the entire tooling process. This supports a faster turnaround than many conventional production methods and allows development teams to receive physical samples sooner. A shorter lead time is particularly useful when a product needs to pass through several stages of review before production approval. Designers can evaluate a batch, identify issues, update the design, and prepare another version without creating expensive hard tooling for every change. 3D printing can also provide very fast individual prototypes, while CNC machining offers accurate material removal for certain applications. Vacuum casting becomes especially useful when multiple identical samples are required with a production-like appearance. This helps companies maintain development momentum and complete production testing within a shorter project schedule.

High-Quality Prototypes for Functional Validation

For pre-series production, prototype quality matters because the parts need to provide useful information about the final product. Vacuum casting can reproduce detailed surfaces, textures, curves, and other features from the master model, making it suitable for producing high-quality prototypes. The resulting parts can be used for assembly checks, appearance reviews, customer demonstrations, and selected functional testing before production tooling is finalized. Compared with some 3D printing methods, cast parts can offer a more production-like surface appearance and material feel. CNC machining can provide excellent dimensional accuracy, but it may become less practical for certain complex shapes or multiple low-volume samples. Vacuum casting provides another balance between detail, quantity, cost, and speed. By testing these functional prototypes before mass production, manufacturers can identify design problems, confirm important features, and make necessary changes while the project remains flexible.

Vacuum Casting Benefits for Pre-Series Production

Vacuum casting provides a useful bridge between early prototype development and full-scale manufacturing. For pre-series production, it allows companies to produce a small batch of consistent parts without immediately investing in expensive hard tooling. This makes low-volume production more practical when product demand is still being evaluated.

Speed is another important advantage. Once the master model and silicone mold are prepared, parts can be produced with a relatively fast turnaround, supporting rapid prototyping and repeated design changes. Teams can therefore review physical samples sooner and keep the product development process moving.

Part quality is equally important. Vacuum casting can reproduce fine surface details, textures, and complex shapes from the original model, helping create high-quality prototypes. With suitable polyurethane materials, material replication can also provide useful similarities in hardness, flexibility, and appearance. These samples can support assembly checks, functional testing, and design validation before production tooling is finalized, helping reduce development risk and support cost-effective manufacturing.

Using Vacuum Casting Before Full-Scale Production

Vacuum casting provides a practical step between early prototyping and mass production. Its ability to produce high-quality parts in limited quantities makes it suitable for pre-series production, especially when a product still requires physical evaluation before final tooling is approved. Compared with more expensive production methods, it can support cost-effective manufacturing while maintaining useful detail and material characteristics.

For low-volume production, manufacturers can create multiple functional prototypes for assembly checks, customer evaluation, and prototype testing. The relatively rapid production cycle also allows engineers to make design changes and repeat testing without significantly slowing the development schedule. This helps companies complete product validation before committing to larger investments.

The process can be applied across industries such as automotive, medical devices, and electronics, where samples are often needed for design and functional review. By combining speed, controlled costs, and reliable part quality, vacuum casting can help companies move from validated prototypes to full-scale manufacturing with greater confidence and fewer unexpected production changes.
