Choosing the Right Steel for Plastic Injection Molds: P20, H13, or S136?

Introduction

Selecting the right mold steel is one of the most important decisions in injection mold design, as it directly affects tooling life, product quality, manufacturing efficiency, and overall project cost. Many engineers compare P20 mold steel, H13 mold steel, and S136 mold steel, but the best choice depends on more than material price alone. Factors such as production volume, resin type, surface finish requirements, corrosion resistance, and expected maintenance all play a role in successful injection mold steel selection.

A proper mold steel comparison should also consider long-term performance rather than only the initial mold steel cost. For example, a lower-cost tooling material may be suitable for short production runs, while premium grades can reduce wear, improve dimensional stability, and extend mold service life in demanding applications. Choosing the wrong steel may lead to premature cavity wear, corrosion, longer maintenance intervals, or inconsistent part quality, ultimately increasing manufacturing costs.

Understanding the strengths and limitations of each material helps manufacturers make better mold material selection decisions. This guide compares the characteristics of P20, H13, and S136 for different injection mold tooling applications, explaining when each steel provides the best balance of durability, machinability, tooling investment, and production performance. By matching mold steel to both the plastic material and production goals, companies can reduce risk while achieving more reliable and cost-effective molding results.

Why Does Mold Material Selection Matter?

Choosing the right mold material selection is about far more than purchasing the least expensive steel. Different injection mold steel grades directly influence mold life, machining efficiency, maintenance frequency, and the quality of molded parts. When comparing P20 vs H13 vs S136, each material offers a different balance of hardness, toughness, wear resistance, and corrosion protection. Selecting the wrong steel may shorten tool life, increase downtime, and raise production costs even if the initial tooling investment is lower.

The performance of a mold depends on how well the steel matches the molding application. High-volume production requires excellent tool wear resistance and injection mold durability, while corrosive resins or flame-retardant materials demand corrosion resistance mold steel to prevent cavity damage. Projects with strict cosmetic requirements also rely on superior mold surface finish, as the steel determines how well polished textures and glossy surfaces can be maintained over long production runs.

Instead of focusing only on purchase price, manufacturers should evaluate the total cost of ownership tooling. A higher-grade steel may reduce mold maintenance, extend service life, and improve process stability, lowering the overall tooling lifecycle cost. Effective production mold steel selection balances performance, maintenance, and budget, ensuring that plastic injection tooling materials deliver the required product quality while keeping long-term manufacturing costs under control. This approach helps optimize mold quality vs cost throughout the entire production lifecycle.

When Is P20 the Better Choice?

P20 mold steel is an excellent option when production goals prioritize fast delivery, moderate tooling cost, and reliable performance. As a pre-hardened mold steel with a typical P20 hardness of 28–34 HRC, it offers good machinability and eliminates the need for additional heat treatment after machining. This shortens mold manufacturing time and makes P20 a popular choice for prototype injection mold projects, bridge tooling, and low volume injection molding where production demand is expected to remain below approximately 300,000 shots.

A typical P20 steel application involves molding non-abrasive thermoplastics such as ABS, PP, PE, and PS. These materials create relatively low cavity wear, allowing P20 to achieve consistent performance while maintaining a semi-cosmetic mold finish suitable for many consumer and industrial products. Because the steel is easy to machine and repair, it also provides flexibility when product designs are still evolving or engineering changes are expected.

From an injection mold material selection perspective, P20 delivers an attractive balance between performance and investment. Its lower initial tooling price often results in a competitive tooling cost per part for short and medium production runs. However, compared with P20 vs H13 S136, P20 is less suitable for glass-filled resins, highly abrasive plastics, or applications requiring mirror-polished surfaces and maximum wear resistance. In these situations, upgrading to H13 or S136 can provide longer mold life and lower maintenance costs over extended production cycles.

What is the best choice for H13?

H13 mold steel is the preferred option when injection molds are exposed to high production volumes, high temperatures, and abrasive engineering resins. As a hardened H13 tool steel injection molding material with a typical hardness of 44–52 HRC, it provides significantly better strength and thermal stability compared with softer grades like P20. This makes it ideal for high volume injection molding steel applications where molds are expected to exceed 500,000 cycles with consistent performance.

In plastic molding of engineering materials such as glass-filled nylon or other reinforced resins, H13 delivers strong mold wear resistance steel properties. Its superior toughness helps protect the injection mold cavity steel from erosion and surface fatigue caused by long production runs. It is also widely used in high temperature injection molding steel applications where heat buildup can affect dimensional stability and accelerate tool degradation.

From a P20 vs H13 comparison, H13 clearly outperforms P20 in durability and long-term stability, especially under continuous production stress. While P20 is suitable for low to medium volumes, H13 is designed for demanding environments where mold life and reliability are critical. Although machining and polishing are more challenging, the extended tool life and reduced maintenance make H13 a more cost-effective solution for high-performance, high-volume manufacturing projects.

What Is S136 Best For?

S136 mold steel is the preferred choice when superior corrosion resistance and exceptional surface quality are critical to product performance. As a premium stainless tool steel S136, it is widely used for molds processing corrosive resins such as PVC and flame-retardant plastics, where ordinary tool steels may suffer from rust or cavity damage. Its excellent resistance to corrosion also makes it a reliable option for long production runs with reduced maintenance requirements.

Another major advantage of S136 is its outstanding polishing capability. It can achieve a high-quality mirror polish SPI finish, making it the industry standard for optical mold steel applications. Manufacturers producing lenses, light guides, transparent covers, and other transparent plastic molds benefit from its ability to deliver excellent injection mold surface finish with minimal polishing defects. Consistent cavity quality also helps maintain part clarity and dimensional stability throughout production.

Compared with S136 vs H13 P20, S136 is better suited for food grade injection mold steel and medical injection molding steel applications, where clean molding environments, corrosion resistance, and long-term surface integrity are essential. Although its initial tooling investment is higher, S136 offers lower maintenance, longer mold life, and superior cosmetic performance. For transparent products, high-gloss consumer parts, or applications requiring strict hygiene standards, S136 is often the most reliable mold steel choice.

P20 vs H13 vs S136 Comparison

A clear mold steel comparison table helps engineers quickly understand how different injection mold steel grades perform under real production conditions. The right mold material selection guide should consider hardness, corrosion resistance, surface finish capability, mold life, and overall tooling cost instead of focusing only on initial price. Each steel grade—P20, H13, and S136—serves a different production scenario depending on resin type and expected cycle life.

From a mold performance comparison, P20 offers the lowest tooling cost comparison, making it suitable for prototype or bridge tooling. H13 provides a strong balance between durability and cost, especially for abrasive resins and long production runs. S136 stands out for corrosion resistance, mirror polishing capability, and compliance requirements in food and medical industries.

When evaluating mold life vs cost analysis, engineers should consider not only steel price but also maintenance frequency, production stability, and surface quality requirements. Differences in pre-hardened vs hardened steel selection can significantly impact lead time and final injection mold specification, making steel grade selection a critical decision in any injection mold project.

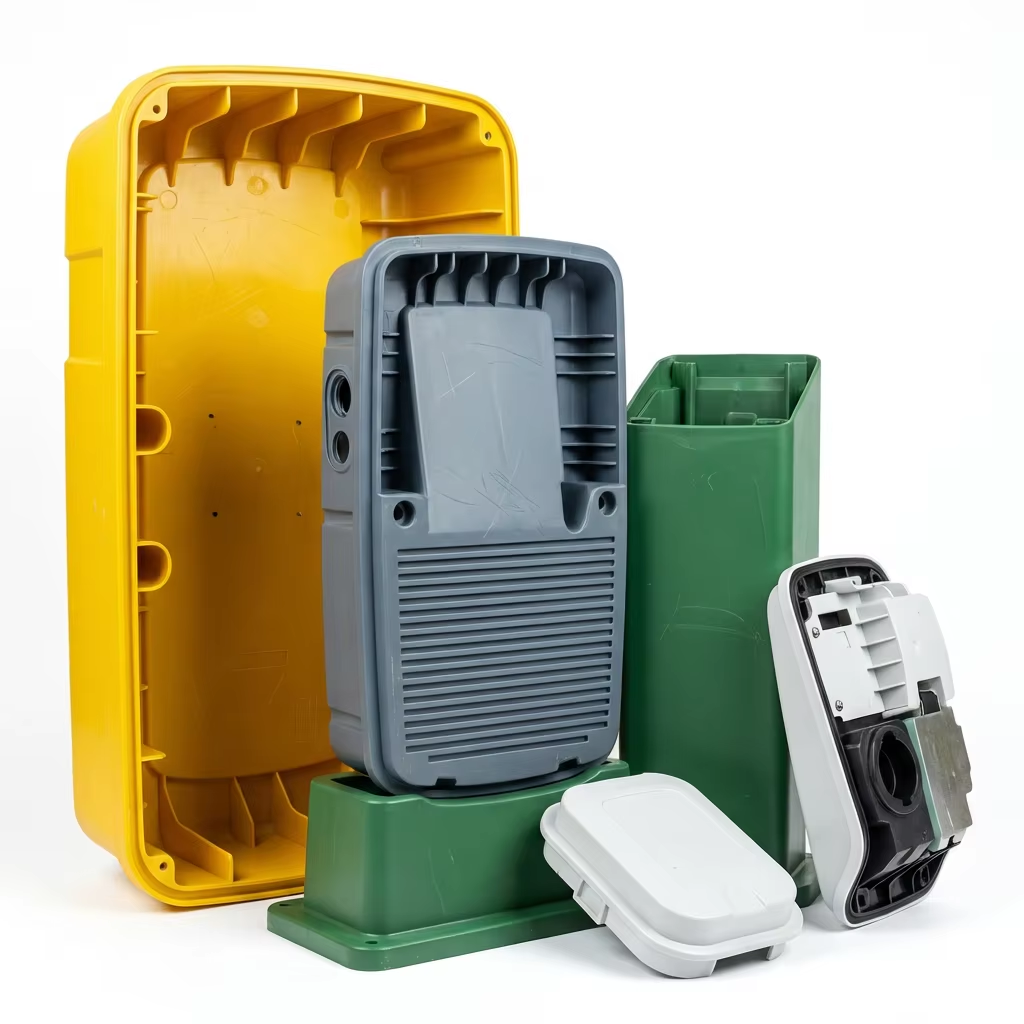

How Do Volume and Resin Affect Mold Steel Choice?

How Resin Type Affects Wear Rate by Steel Grade

Mold steel selection is strongly influenced by both production volume and resin type, because these two factors directly determine wear rate and mold life. A practical mold steel selection by volume approach shows that low-volume production can often use P20, while medium to high-volume runs require stronger options like H13 or S136. As cycle count increases, injection molding wear rate becomes more important, and softer steels lose accuracy faster. This is why production volume threshold molding is a key rule in engineering decisions, helping balance cost and durability across different project stages.

Resin type also plays a critical role in tooling material selection criteria. The How Resin Type Affects Wear Rate by Steel Grade principle explains that abrasive materials like glass-filled nylon or PBT significantly increase cavity erosion, making abrasive plastic tooling steel such as H13 more suitable. For corrosive materials like PVC or flame-retardant compounds, corrosion resistant mold steel S136 is preferred to prevent surface degradation. This direct interaction between resin and steel strongly affects injection mold steel by production volume and overall mold performance.

What Is the Simplest Rule for Choosing Mold Steel?

A simple mold steel decision guide can be summarized as:

P20: low volume and standard resin;

H13: medium to high volume and abrasive resin;

S136: corrosive environments or applications requiring high surface finish;

This rule helps engineers quickly evaluate P20 H13 S136 selection rules without complex calculations. It also supports faster early-stage decisions in engineering mold steel selection, especially when balancing tooling cost and expected mold life.

From an injection mold cost optimization perspective, the goal is to minimize cost per shot mold steel while ensuring stable production quality. P20 offers low initial cost but shorter lifespan, H13 improves durability for demanding resins, and S136 provides the longest life in corrosive or high-finish applications. By combining resin behavior with production volume, manufacturers can achieve the most efficient balance between tooling investment and long-term mold performance.
