Medical plastics are not simply melted and pushed into a mold.
They must be identified, prepared, processed, cooled, and inspected under controlled conditions. Small changes in moisture, temperature, pressure, or cooling can affect the finished component.
The correct process also depends on the exact resin grade.
Polypropylene behaves differently from polycarbonate. A flexible elastomer requires different settings from a high-performance polymer. Additives, fillers, and colorants can change processing behavior further.
For this reason, the medical plastic injection molding process begins before the machine starts.
Manufacturers must confirm:
Approved resin grade
Material supplier documentation
Drying requirements
Melt temperature limits
Mold design conditions
Cleanliness requirements
Inspection criteria
Material traceability
The actual molding sequence converts plastic pellets into finished components.
It includes resin drying, melting, mold filling, packing, cooling, ejection, and inspection.
This guide explains how medical plastics are injection molded. It also shows how material properties, mold design, and machine parameters influence each stage.
Note: Medical plastic molding is a controlled material-conversion process, not only a mold-filling operation.
The medical plastic injection molding process follows a defined sequence.
Each step affects component quality, dimensional stability, and production consistency.
The manufacturer first confirms the exact resin grade.
Identifying only the polymer family is not enough. Two grades from the same family may behave differently.
They may contain different:
Stabilizers
Reinforcements
Colorants
Processing aids
Impact modifiers
Flame-retardant additives
These differences can affect strength, shrinkage, appearance, and sterilization performance.
The production team should review:
Resin manufacturer
Commercial grade name
Material lot number
Supplier technical data
Approved colorant
Permitted additives
Regrind restrictions
Storage requirements
The selected resin should match the component’s intended environment.
Important properties may include chemical resistance, transparency, flexibility, impact strength, or heat resistance.
Patient contact and sterilization requirements also need review where applicable.
Material approval should occur before mold trials begin. Changing the resin later may alter flow, shrinkage, dimensions, and qualification results.
Medical resin preparation often includes controlled drying.
Some plastics absorb moisture from surrounding air. This moisture may remain inside the pellets before processing.
During molding, trapped moisture can cause:
Bubbles
Silver streaks
Surface defects
Voids
Reduced strength
Material degradation
Dimensional variation
Polycarbonate, nylon, and several high-performance polymers usually require careful drying. Other materials may be less moisture-sensitive.
However, one drying condition cannot be used for every resin.
The manufacturer should follow the approved material specification. It should control drying temperature, drying time, and allowable exposure after drying.
A typical material-handling sequence includes:
Confirm the resin grade and lot.
Inspect the packaging condition.
Load the material into an approved dryer.
Apply the defined drying cycle.
Transfer the resin through a controlled system.
Limit exposure before molding.
Record the drying information.
Open containers may absorb moisture or collect dust. Uncontrolled transfer can also increase contamination and material-mixing risks.
Tip: Buyers should request drying records for moisture-sensitive resins, not only a general material certificate.
Prepared pellets enter the injection molding machine through a hopper.
A rotating screw moves the resin through a heated barrel. Heater bands provide external heat. Screw rotation also creates shear energy.
Together, they soften and melt the pellets.
The screw performs several functions:
Moves resin forward
Compresses the pellets
Mixes molten plastic
Produces a consistent melt
Meters the required shot volume
Molten resin collects in front of the screw.
Once the correct shot volume is ready, the machine prepares for injection.
Medical plastic melt temperature control is critical during this stage.
A temperature that is too low may cause:
Poor flow
Incomplete filling
Visible flow lines
High injection pressure
Weak weld lines
Excessive temperature may cause:
Discoloration
Odor
Gas formation
Polymer degradation
Reduced mechanical properties
Residence time also matters.
Resin left inside a hot barrel for too long may degrade, even when the displayed temperature remains within range.
Operators should control both temperature and production interruptions.
The mold closes before injection begins.
The clamping unit applies enough force to keep the mold closed. The screw then moves forward and pushes molten plastic through the nozzle.
The melt travels through:
The machine nozzle
The mold sprue
The runner system
The gate
The mold cavity
This sequence forms the medical plastic mold-filling process.
Injection speed affects how quickly the flow front moves. Injection pressure provides the force required to fill the cavity.
The settings depend on:
Resin viscosity
Wall thickness
Flow length
Gate size
Mold temperature
Part geometry
Number of cavities
Thin walls and long flow paths may require faster filling. Complex geometry may need a more carefully balanced flow pattern.
Air inside the cavity must escape during filling.
Mold vents allow displaced air to leave. Blocked or undersized vents may create burn marks, incomplete filling, or weak weld lines.
Short shots occur when resin cannot fill the entire cavity.
Potential causes include:
Low melt temperature
Low injection pressure
Restricted gates
Blocked vents
Premature material freezing
Unsuitable resin viscosity
The cavity becomes nearly full during injection.
The machine then changes from filling control to packing control.
Packing pressure pushes additional resin into the cavity. This material compensates for shrinkage during early cooling.
Holding pressure continues until the gate freezes.
Correct packing can improve:
Part weight
Dimensional stability
Surface quality
Feature definition
Sink-mark control
Insufficient packing may cause:
Sink marks
Internal voids
Low part weight
Dimensional variation
Weak structural areas
Excessive packing may create:
Flash
Internal stress
Difficult ejection
Excessive part weight
Distorted dimensions
Holding time must also match the gate and material behavior.
Continuing pressure after gate freeze usually adds no useful material. It may only increase cycle time.
Note: Packing pressure compensates for shrinkage; it does not replace correct mold filling.
Plastic begins cooling as soon as it contacts the mold.
Cooling channels circulate temperature-controlled fluid through the tool. They remove heat from the core, cavity, and molded component.
Cooling time depends on:
Resin type
Wall thickness
Part geometry
Mold temperature
Cooling-channel layout
Required dimensional stability
Thicker sections generally cool more slowly.
Uneven cooling can create different shrinkage rates across the component. This imbalance may cause warping or dimensional drift.
Mold temperature also affects:
Surface finish
Weld-line appearance
Shrinkage
Crystallization
Residual stress
Ejection stability
A lower mold temperature does not always improve production.
It may reduce cooling time, but it can also weaken flow or surface quality. The correct setting must match the resin and component requirements.
Cooling often represents a large part of the total cycle time.
Reducing it too far may produce deformed components. The plastic must become stable enough for ejection.
The mold opens after the component reaches sufficient stability.
Ejection systems then remove the part.
Common systems include:
Ejector pins
Ejector sleeves
Stripper plates
Air-assisted release
Robotic removal
Draft angles help the component leave the mold.
Poor draft or weak ejection design may cause scratches, stress marks, deformation, or visible ejector marks.
Early ejection can distort warm plastic. Excessive force may also damage thin walls or delicate features.
After removal, the component may require:
Gate trimming
Flash removal
Visual inspection
Dimensional measurement
Functional testing
Controlled storage
Secondary assembly
Protective packaging
Inspection results should remain linked to the material lot, machine, mold, cavity, and production batch.
Only approved components should proceed to later operations.
Medical polymer injection molding parameters must match the selected resin.
A setting suitable for one plastic may damage another.
Material Property | Process Impact | Main Control |
|---|---|---|
Moisture sensitivity | Streaks, voids, or degradation | Resin drying and sealed transfer |
Thermal stability | Discoloration or property loss | Melt temperature and residence time |
Shrinkage | Dimensional change or warping | Packing, cooling, and mold dimensions |
Viscosity | Incomplete filling or high pressure | Temperature, speed, gate, and wall design |
Moisture-sensitive polymers require controlled storage and drying.
Poor storage may change how the resin flows or reacts under heat.
Sealed containers, desiccant dryers, and closed transfer systems reduce this risk.
Less moisture-sensitive materials still require clean storage and correct identification.
Every resin has a suitable processing range.
Low melt temperature can limit flow. Excessive temperature can damage the polymer.
Thermal stability also affects allowable residence time.
Operators should not increase temperature automatically when filling becomes difficult. The real cause may involve the gate, venting, injection speed, or wall thickness.
Plastic contracts as it cools.
Shrinkage depends on resin type, mold temperature, packing, geometry, and cooling rate.
Fiber-filled materials may shrink differently along and across the flow direction. This behavior can affect flatness and tolerance planning.
Mold dimensions should account for expected shrinkage. Actual trial results must then confirm the calculations.
Viscosity describes resistance to flow.
A lower-viscosity resin may fill thin walls more easily. A higher-viscosity resin may need more pressure or larger flow paths.
Temperature and shear can change viscosity during molding.
Some polymers are sensitive to high shear. Excessive injection speed may damage them or create appearance defects.
Tip: Review material properties and mold design together, not as separate decisions.

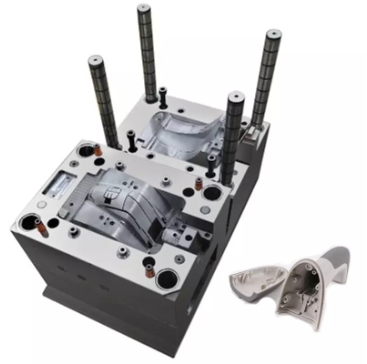

The mold does more than create the final shape.
It controls how resin enters, flows, cools, and leaves.
The gate is the final passage into the cavity.
Its size, shape, and location influence flow direction, pressure loss, packing, and surface appearance.
Common systems include:
Direct gates
Edge gates
Submarine gates
Pin gates
Hot-runner systems

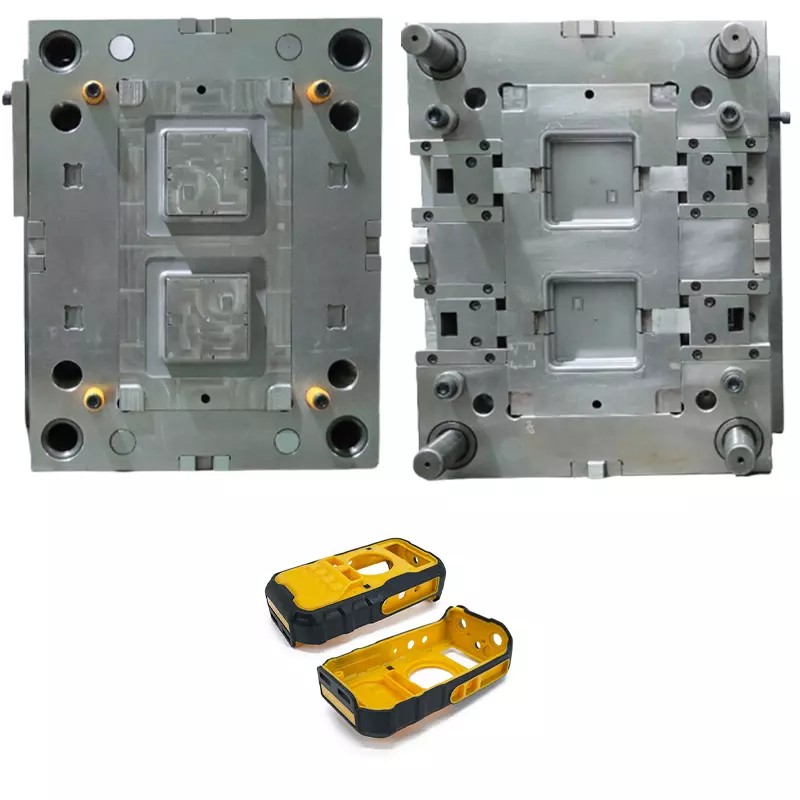

Runner balance is especially important in multi-cavity molds.
Each cavity should receive material under similar pressure and temperature conditions. Poor balance can create weight or dimensional differences.
Hot-runner systems may reduce runner waste. However, they add tooling complexity and thermal-control requirements.
Air must leave as resin fills the cavity.
Vents provide controlled escape paths.
Poor venting can create:
Burn marks
Short shots
Trapped gas
Weak weld lines
Unstable dimensions
Vents may collect residue during production. Regular cleaning helps maintain consistent mold filling.
Cooling channels control heat removal.
Conventional channels follow drilled paths. Conformal channels can follow complex cavity geometry more closely.
Balanced cooling supports:
Shorter stable cycles
Lower warping
Consistent shrinkage
Better cavity balance
More predictable dimensions
The best system depends on component shape, production volume, and tooling budget.
The mold must release the component without damage.
Draft angles reduce friction during ejection. Ejector locations should distribute force across suitable surfaces.
Undercuts may require sliders, lifters, or collapsible cores.
These systems increase tooling complexity and maintenance needs.
Different polymers require different processing strategies.
Material Group | Key Processing Focus | Typical Considerations |
|---|---|---|
Polypropylene | Shrinkage and cooling | Chemical resistance and grade selection |
Polyethylene | Flow and dimensional control | Density, flexibility, and heat limits |
Polycarbonate | Drying and thermal stability | Clarity, stress, and chemical exposure |
High-performance polymers | High processing temperatures | Tooling, equipment, and strict controls |
Thermoplastic elastomers | Bonding and ejection | Flexibility, sealing, and overmolding |
Polypropylene and polyethylene are used in many containers, housings, and disposable components.
They generally offer useful chemical resistance and efficient processing.
However, their shrinkage requires careful control.
Specific grades may differ in stiffness, clarity, flexibility, and sterilization compatibility.
The exact grade should be approved for the intended application.
Polycarbonate is often selected for clear housings and diagnostic components.
It usually requires careful resin drying and melt temperature control.
Surface defects become more visible in transparent parts.
Flow lines, contamination, trapped gas, and internal stress may affect appearance or performance.
Chemical and sterilization compatibility should be reviewed before use.
PEEK, PPSU, PEI, and related materials may support demanding applications.
They can offer heat resistance, strength, chemical resistance, or repeated sterilization performance.
However, they often require:
Higher melt temperatures
Suitable mold steel
Accurate thermal control
Specialized processing experience
Careful residence-time management
Higher material performance does not remove processing risk. It usually requires tighter control.
Thermoplastic elastomers can produce grips, seals, cushions, and flexible surfaces.
They may be molded alone or over a rigid substrate.
Overmolding requires compatible materials and suitable surface conditions.
The supplier should test bonding strength and dimensional stability.
Liquid silicone rubber molding uses a different material system. It should not be treated as standard thermoplastic injection molding.
Cleanliness and material traceability support reliable medical production.
The manufacturer should record:
Resin supplier
Exact resin grade
Material lot
Additive lot
Colorant lot
Drying records
Production batch
Unapproved substitutions should not occur.
Permitted regrind should also be clearly defined. Some projects may prohibit it.
Material exposure should remain limited during transfer.
Containers, tools, dryers, and work surfaces should follow defined cleaning controls.
After molding, unnecessary manual contact should be reduced.
Parts should remain protected during storage and movement.
Some products require controlled manufacturing environments.
Controls may include:
Filtered air
Restricted access
Gowning procedures
Cleaning schedules
Environmental monitoring
Controlled material entry
A dust-controlled workshop is not automatically a classified cleanroom.
Cleanroom molding also does not make a component sterile.
Sterilization remains a separate validated process when required.
Approved injection molding parameters should be documented.
Changes involving materials, molds, machines, or settings require formal review.
Inspection and nonconformance records should remain traceable.
Significant changes may require new testing, process review, or qualification before routine production continues.
Tip: Request actual material-control and cleanliness records instead of relying on general “medical-grade” claims.
Defects often reveal problems in material preparation, mold design, or machine settings.
Defect | Possible Causes | Areas to Review |
|---|---|---|
Short shot | Low temperature or restricted flow | Gate, venting, pressure, viscosity |
Flash | Excessive pressure or weak clamping | Clamp force, mold condition, packing |
Burn marks | Trapped air or overheating | Vents, speed, temperature |
Sink marks | Insufficient packing or thick walls | Holding pressure, geometry, cooling |
Warping | Uneven shrinkage or cooling | Cooling layout, material, ejection |
Short shots occur when the cavity does not fill completely.
Potential causes include low melt temperature, insufficient injection pressure, blocked vents, or restrictive gates.
Thin walls and long flow paths may also contribute.
Machine data and mold inspection should guide troubleshooting.
Flash appears when resin escapes between mold surfaces.
Excessive pressure, inadequate clamp force, or mold wear may cause it.
Burn marks often indicate trapped air or material degradation.
Flow marks may result from unstable filling or early material cooling.
Thick sections cool more slowly than surrounding walls.
This difference may create sinks or internal voids.
Packing pressure and holding time affect these defects.
Part weight can provide a useful process-stability indicator.
Uneven cooling and shrinkage can distort the component.
Mold-temperature imbalance may also change dimensions.
Early ejection can introduce residual stress.
Recurring drift may indicate material, tooling, cooling, or equipment changes.
The first acceptable sample does not prove production readiness.
The process must remain stable across repeated cycles and batches.
Mold trials test:
Filling
Packing
Cooling
Ejection
Dimensions
Surface quality
Engineers may adjust gates, vents, cooling, or machine settings.
They also confirm whether the selected resin performs as expected.
Yeeshine-Tech states that it conducts DFM reviews covering gate position, parting lines, ejection, shrinkage, and other mold requirements before manufacturing.
The team defines suitable operating ranges for:
Melt temperature
Mold temperature
Injection speed
Injection pressure
Packing pressure
Holding time
Cooling time
Critical parameters should produce acceptable results across the planned range.
Approved settings should then be documented.
Routine monitoring may include:
Cycle time
Injection pressure
Melt temperature
Mold temperature
Part weight
Critical dimensions
Cavity variation
The team should respond before process drift creates widespread scrap.
Post-molding operations may include:
Gate removal
Flash trimming
Printing
Welding
Assembly
Cleaning
Packaging
These operations should follow suitable handling controls.
Only components meeting approved visual, dimensional, and functional criteria should be released.
Yeeshine-Tech supports product development through DFM analysis, CNC prototyping, mold manufacturing, and injection molding production. Buyers should confirm project-specific material controls, cleanliness requirements, validation support, and documentation before production begins.
Explore Yeeshine-Tech’s plastic injection mold and manufacturing capabilities.
How are medical plastics injection molded?
The process follows a controlled sequence:
The approved resin is identified.
Moisture-sensitive material is dried.
The screw melts and meters the resin.
Molten plastic fills the mold.
Packing pressure compensates for shrinkage.
Cooling solidifies the component.
The mold opens and ejects the part.
Inspection confirms acceptable quality.
Medical plastic molding requires more control than basic material shaping.
Important controls include:
Exact resin-grade approval
Material traceability
Defined drying conditions
Stable melt temperatures
Controlled mold filling
Correct packing pressure
Balanced cooling
Documented inspection
Formal change control
Before production begins, buyers should ask:
Is the exact resin grade approved?
How is the material dried?
How is resin transferred?
Which temperatures are controlled?
How is mold filling monitored?
Which defects are inspected?
How are material lots traced?
What cleanliness controls apply?
How are production changes reviewed?
Medical plastics are injection molded through controlled preparation, melting, filling, packing, cooling, ejection, and inspection.
The process becomes reliable when resin behavior, mold design, machine parameters, cleanliness, and documentation are managed together.
A: Medical Injection Molding includes resin drying, melting, mold filling, packing, cooling, ejection, and inspection.
A: Medical Injection Molding uses controlled drying to prevent streaks, voids, weakness, and material degradation.
A: Medical Injection Molding may become unstable because of wet resin, poor venting, incorrect melt temperature, or injection settings.
A: Tooling is costly, but medium- and high-volume production usually lowers the unit cost.
A: Medical Injection Molding suits repeat production, while CNC machining suits prototypes and low-volume parts.
