Vacuum Casting vs Injection Molding

Introduction

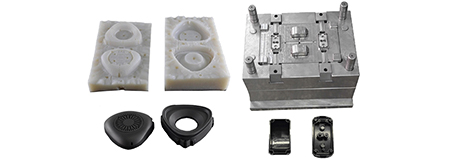

When comparing vacuum casting vs injection molding, it's important to understand the key differences between the two processes. The difference between vacuum casting and injection molding lies in their production scale, cost structure, and application scenarios. Vacuum casting is better suited for small to medium production runs, offering flexibility and faster turnaround for complex or prototype parts. In contrast, injection molding is ideal for mass production, with higher upfront tooling costs but lower per-unit expenses. Choosing the right method depends on your project's volume, budget, and design complexity.

What Is Vacuum Casting?

Vacuum casting process is a method that uses silicone molds to form plastic parts in a vacuum environment, making it suitable for low-volume production and prototype validation. The process involves creating a master model, duplicating it into a silicone mold, injecting liquid resin, applying vacuum to remove bubbles, and finally curing the part. Compared to traditional methods, vacuum casting for prototyping and complex parts offers a faster way to produce high-quality components. Its advantages include low tooling costs, short lead times, and excellent surface finishes. However, its limitations lie in the shorter mold lifespan and unsuitability for large-scale production. Understanding how vacuum casting works helps evaluate its role in product development more effectively.

Cost Advantages of Vacuum Casting

In low-volume production, vacuum casting offers significant cost advantages. Compared to injection molding, the silicone mold tooling cost is much lower, eliminating the need for expensive metal molds, making it ideal for early-stage testing or customized parts. For quantities ranging from a few dozen to a few hundred units, the low-volume vacuum casting cost is more affordable while still ensuring fast turnaround. The difference in vacuum casting vs injection tooling cost is especially noticeable, making vacuum casting suitable for startups, or short-cycle projects, helping reduce initial investment risks.

Limitations of Vacuum Casting

Although vacuum casting offers clear advantages for prototyping and low-volume manufacturing, there are notable vacuum casting limitations to consider. First, there are material restrictions—it primarily supports polyurethane-based resins and may not meet the performance needs of high-grade engineering plastics. Second, the production capacity of vacuum casting is limited, making it unsuitable for high-volume or continuous production. Additionally, while it delivers good surface quality, there are still surface finish limitations of vacuum casting, such as difficulty achieving high-gloss or intricate textures. Therefore, it's important to evaluate vacuum casting based on product function, quantity, and appearance requirements.

What Is Injection Molding?

Injection molding process is a highly efficient manufacturing method where molten plastic is injected into a metal mold, then cooled and solidified to form the final product. It is widely used for mass production due to its speed and consistency. The process involves heating plastic materials, injecting them into the mold, cooling, and then ejecting the finished part. Understanding how injection molding works helps reveal its advantages in repeatability and low unit cost. Compared to other forming methods, injection molding ensures excellent part uniformity. Moreover, it offers a wide range of injection molding material options, including ABS, PP, and PC, meeting diverse performance requirements.

Speed and Volume Contrast

In terms of molding speed, injection molding offers a clear advantage. Each molding cycle typically takes only a few seconds to a few minutes, making it ideal for continuous high-volume production and significantly reducing overall lead time. In contrast, vacuum casting has a much longer production cycle—each part may take several hours, especially due to the time needed for mold duplication and resin curing. Therefore, in the injection molding vs vacuum casting lead time comparison, injection molding is better suited for time-sensitive projects.

Regarding production volume, injection molding is also more scalable. Its molds can be reused thousands of times, making it ideal for long-term, high-volume manufacturing. Vacuum casting, however, is limited by the shorter lifespan of silicone molds—usually only good for a few dozen parts—making it unsuitable for large-scale output. Overall, the cycle time comparison of molding methods shows that injection molding supports efficient, high-volume production, while vacuum casting is more flexible for low-volume manufacturing.

Material Options Comparison

In terms of molding material choices, injection molding offers a wider range of options. It supports various engineering plastics, such as ABS, PC and POM, making it suitable for products that require high strength, heat resistance, or dimensional stability. Thermoplastics are commonly used, and some thermosets can also be processed, meeting the needs of industrial-grade applications. When comparing material variety in injection molding vs vacuum casting, injection molding clearly provides more control and consistency in material performance.

On the other hand, vacuum casting mainly uses polyurethane resins. These materials can simulate different plastic characteristics, such as flexibility or transparency, but typically offer lower mechanical strength and heat resistance than injection molding materials. In the comparison of thermosets vs vacuum casting resin, thermosets are better suited for high-temperature or chemically resistant environments, while vacuum casting resins are more ideal for quick prototyping or visual model verification. Therefore, for high-performance production, injection molding is preferred, while vacuum casting is better for small-batch custom parts.

Surface Finish & Design Flexibility

In terms of molding finish & flexibility, both injection molding and vacuum casting have their strengths. Injection molding offers superior surface quality—ideal for high-volume products with demanding appearance requirements, such as glossy finishes, fine textures, or mirror-like surfaces. However, once the mold is made, design changes can be costly, making it less suitable for frequent modifications.

By contrast, vacuum casting may deliver slightly lower detail resolution, but it excels in design tweaks and quick iteration. Its high prototyping flexibility makes it ideal for testing different structures or shapes across multiple development cycles. For projects that prioritize development speed and frequent adjustments, vacuum casting provides a more agile solution.

Decision Guide: When to Choose Which

When deciding between vacuum casting or injection molding, it's important to evaluate your project based on production volume, budget, timeline, and performance requirements. If your product is in the early design stage, requires prototype testing, or only needs a small batch, the answer to when to use vacuum casting vs injection molding often leans toward vacuum casting due to its lower mold cost and faster turnaround, making it ideal for rapid iteration. On the other hand, if the design is finalized and large-scale production is needed, injection molding offers better cost-efficiency and higher output.

This process selection guide for molding recommends choosing injection molding when consistency and low unit cost are priorities, while vacuum casting is better for flexibility and speed. Making the right manufacturing decision between vacuum casting and injection molding helps improve development efficiency and reduce production risk.
