Understanding The Characteristics of Vacuum Casting

In the field of rapid manufacturing, vacuum casting is a versatile molding process that balances precision and flexibility, making it ideal for prototype validation and small-batch production. Based on silicone molds, this method accurately replicates surface finish and structural details, allowing parts to closely resemble mass-produced components within a short lead time. By pouring resin materials under vacuum conditions, air bubbles and defects are minimized, resulting in improved consistency and performance. Understanding the characteristics of vacuum casting helps clarify its role at different product development stages and provides a solid foundation for subsequent process selection.

What is Vacuum Casting?

Basic Concept of Vacuum Casting

Vacuum casting is a replication process focused on high precision, widely used for rapid prototyping and functional sample production. It accurately reproduces the dimensions, textures, and fine details of the master model, allowing finished parts to closely resemble injection-molded components. This makes it especially suitable for product validation stages.

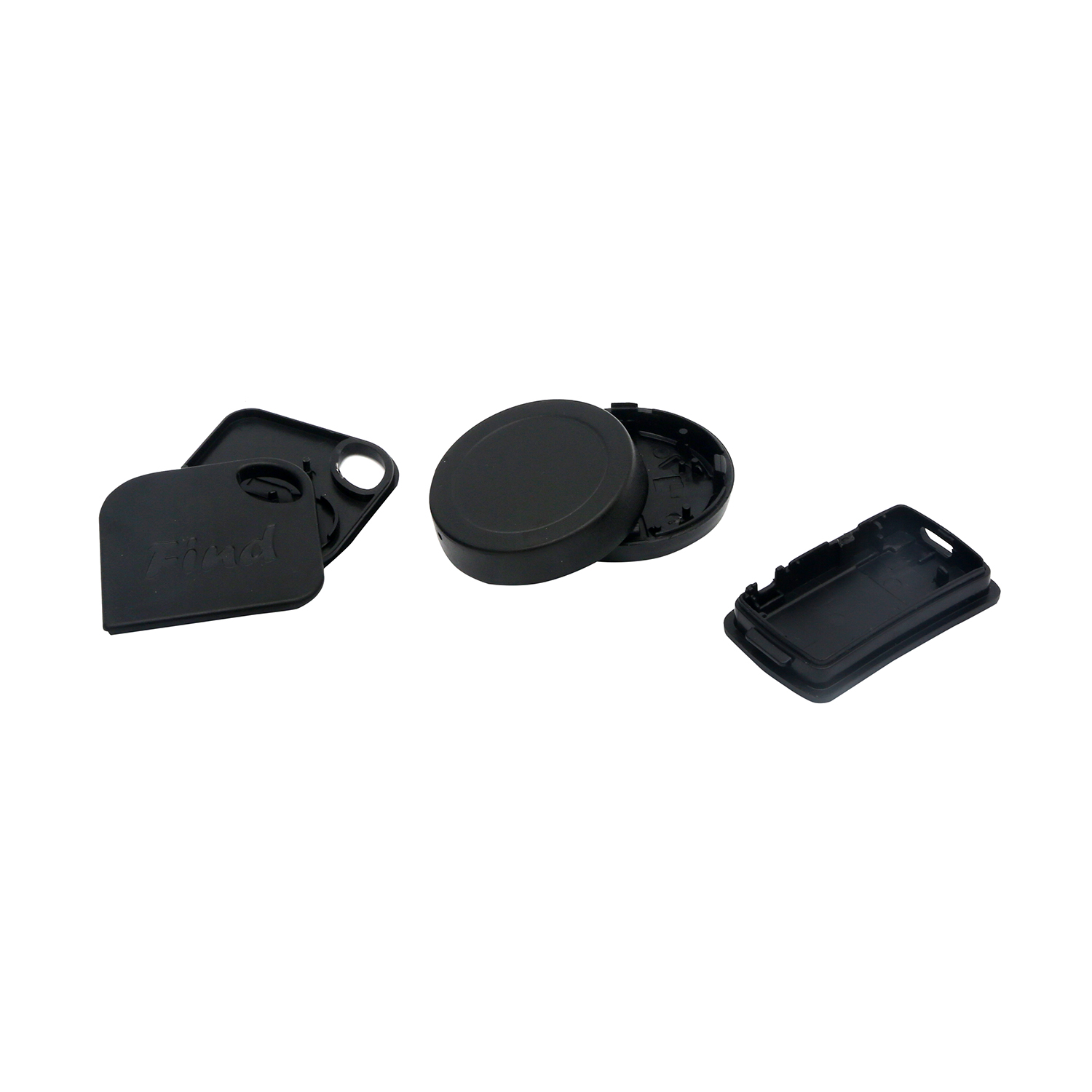

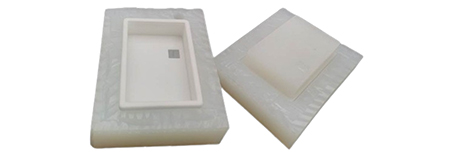

Role of Silicone Molds

This process relies on silicone molds as the core tooling, enabling complete duplication of the master model’s details. Silicone molds are quick to produce, cost-effective, and offer excellent flexibility and release properties. They provide a reliable foundation for achieving high surface quality while supporting multiple casting cycles.

Common Materials Used

Vacuum casting typically uses polyurethane resins, which can simulate the properties of various engineering plastics such as ABS, PP, or rubber-like materials. This material flexibility allows parts to deliver not only realistic appearance but also sufficient strength for basic functional testing.

Advantages of a Vacuum Environment

Casting in a vacuum environment effectively removes trapped air, minimizing bubbles and surface defects. This significantly improves part density and visual quality, resulting in components that look and feel much closer to injection-molded parts, suitable for both display and evaluation purposes.

Suitable Production Scale

Vacuum casting is especially well suited for small-batch production, typically ranging from dozens to a few hundred parts. Compared to injection molding, it avoids the high cost of steel tooling while delivering high-quality results, making it an ideal solution for cost-effective, small-to-medium volume manufacturing with fast turnaround.

Key Characteristics of Vacuum Casting

Material Versatility

Vacuum casting is well known for its strong material versatility, allowing the use of a wide range of resins to simulate the properties of common engineering plastics. Whether a part requires strength, toughness, or a rubber-like feel, suitable resin formulations can meet different needs. This flexibility helps product validation better reflect real applications and reduces the risk of changing processes during early development.

High-Quality Surface Finish

Thanks to the vacuum process, vacuum casting delivers an excellent surface finish. Silicone molds accurately replicate the texture and details of the master model, resulting in smooth and refined surfaces with minimal post-processing. For appearance parts, display samples, or components requiring painting, this high-quality finish significantly enhances visual appeal and product credibility.

Precision and Detail

Vacuum casting provides reliable precision and detail reproduction, accurately capturing complex geometries, fine features, and critical assembly dimensions. Even thin walls and intricate structures can be produced with consistent quality. This capability makes the process ideal for functional testing and design validation, producing small-batch parts that closely resemble injection-molded components.

Speed and Efficiency

Compared with traditional injection molding, vacuum casting offers clear advantages in speed and efficiency. Silicone molds can be produced quickly without the need for expensive steel tooling, enabling fast transition from model to finished parts. For time-sensitive projects, this efficient workflow shortens lead times while maintaining cost control and reliable output.

Applications of Vacuum Casting

Automotive Applications

In the automotive industry, vacuum casting is widely used to produce functional prototypes and appearance validation parts, such as interior components, housings, and connector structures. The process delivers parts with quality close to injection molding in a short time, helping engineering teams verify assembly and evaluate designs, especially during early vehicle development stages with small-batch requirements.

Medical Applications

The medical sector demands high precision and surface quality, which vacuum casting can effectively provide. It is commonly used for medical device housings, operating handles, and functional test samples. With flexible material options, the process supports rapid iteration and low-volume production while keeping costs under control.

Consumer Products Applications

In the consumer products industry, vacuum casting is widely applied to appearance models and market testing products, such as electronic enclosures, household items, and innovative design concepts. This method balances quality and efficiency, allowing companies to validate designs and launch small batches without investing in expensive tooling.

Advantages of Vacuum Casting

Balance Between Cost and Quality

Vacuum casting achieves near injection-molded quality in a highly cost-effective way. Compared with steel tooling, it eliminates high mold investment while still delivering high-quality surface finish and consistent dimensions. This makes it ideal for prototyping and small-batch production where both budget control and product quality are important.

Material Flexibility and Customization

With strong material versatility, vacuum casting supports a wide range of resin options to adjust color, hardness, and mechanical performance. This high level of customization allows prototypes and functional parts to better reflect real-world applications, making the process well suited for diverse and low-volume product development needs.

Fast Turnaround Speed

Vacuum casting offers a clear advantage in speed. Silicone molds can be produced quickly, enabling an efficient workflow from design to finished parts. For projects requiring rapid response or frequent design iterations, this fast turnaround significantly improves overall development efficiency.

Limitations and Considerations

Material Limitations

Although vacuum casting delivers excellent surface quality and precision, it does have certain material limitations. The resins used are mainly designed to simulate plastic properties and generally cannot fully match injection-molded engineering plastics or metals in terms of high-temperature resistance, long-term strength, and fatigue life. For parts subjected to high stress, harsh environments, or long-term use, vacuum casting is better suited for validation and testing rather than final mass production.

Production Scale Considerations

In terms of production scale, vacuum casting is best suited for small to medium volumes. Silicone molds have a limited service life, and as quantities increase, unit costs rise while efficiency becomes less competitive compared to injection molding. For products with large-volume or long-term production needs, vacuum casting is often used as a transitional process before moving to manufacturing methods better suited for mass production.

Conclusion

In conclusion, vacuum casting stands out for its clear advantages in surface quality, detail reproduction, and production efficiency, making it a valuable manufacturing process for prototyping and small-batch production. Although certain limitations exist in terms of material performance and production scale, its flexibility and cost benefits remain highly attractive during early product development. As materials and processes continue to evolve, future trends in vacuum casting will focus on improved performance and broader application scenarios, enabling companies to transform ideas into high-quality finished products more quickly.
