Insert Molding Vs. Overmolding: What’s The Difference?

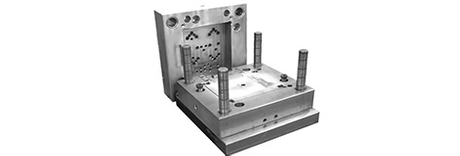

Injection molding is a common plastic processing method for the mass production of plastic parts with complex structures and high dimensional accuracy. It forms products of the desired shape by melting plastic raw materials at high temperatures and injecting them into steel molds for cooling and shaping. This process offers advantages such as high molding efficiency, good repeatability, and automation, making it particularly suitable for industrial-grade parts manufacturing. For companies looking for a stable, economical solution for high-volume plastic production, injection molding is a reliable option for achieving large-scale output, standing as one of the most important and indispensable processes in modern manufacturing.

What is Insert Molding?

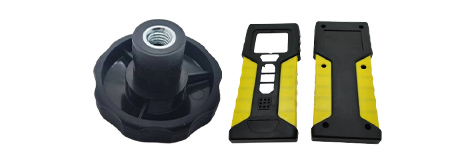

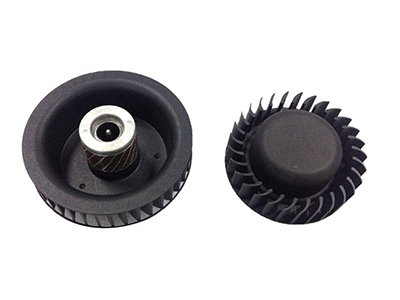

Insert molding is a process in which metal or other non-plastic parts are embedded into plastic components, and it is commonly used to manufacture metal-plastic composite parts. The principle involves placing prefabricated inserts (e.g., nuts, metal pieces, electronic components) in a designated location within the mold prior to injection. The thermoplastic material is then injected into the mold cavity to form an integrated structure after cooling. Compared with traditional assembly methods, insert molding not only improves the structural strength and durability of the product but also reduces subsequent assembly processes and enhances production efficiency. This technology is widely used in automotive components, electronic connectors, home appliance housings, and other fields, and is particularly suitable for products that require high bond strength and dimensional accuracy. Understanding how insert molding works can help in choosing a more suitable manufacturing process solution.

Insert Molding Benefits

Insert molding has a number of advantages and is an effective means of improving product performance and reducing manufacturing costs. Firstly, it creates a compact structure and solid connection by molding metal inserts and plastics in a single step, which effectively enhances the mechanical strength and wear resistance of the parts. Secondly, compared with traditional post-assembly methods, insert molding can eliminate additional bonding, screwing, or welding processes, significantly reducing labor costs and assembly time. In addition, the process improves product consistency and reliability, reducing assembly errors and the risk of potential failure. For applications that require electrical connections, reinforced structures, or high-precision fits, insert molding provides a more efficient and stable solution. Overall, the choice of insert molding can improve part functionality while optimizing the production process and achieving more competitive manufacturing results.

Disadvantages of Insert Molding

Although insert molding offers many advantages, it does come with some limitations in practical application.

Firstly, the precise positioning of inserted parts demands higher requirements for mold design and production; even a slight deviation can lead to defective finished products and increase the scrap rate.

Secondly, because metal parts need to be pre-positioned into the mold, either manually or with automated equipment, the process is more complex than standard injection molding, which can extend the molding cycle.

Furthermore, the cost of the metal inserts themselves is higher, especially in high-volume production, impacting the overall manufacturing budget. Additionally, the mold structure for insert molding is more complex, raising design and maintenance costs.

For first-time developers or projects that are more sensitive to cost control, it's crucial to consider these factors. Therefore, when deciding whether to use insert molding, you should carefully evaluate the balance between product performance requirements and available manufacturing resources to select the most suitable production method.

What is Overmolding?

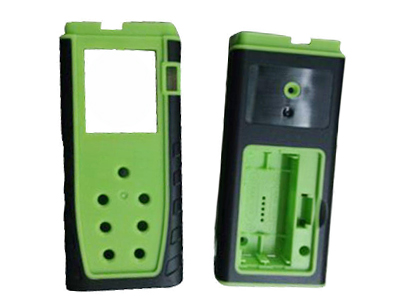

Overmolding is a process in which two or more different materials are combined through multiple injection molding steps, usually to coat a base part with a layer of soft or functional material. The process begins with the injection molding of a base material (usually a rigid plastic or metal), which is then placed into another mold for a second injection, where a soft rubber or other material is applied to the surface to create a strong bond between the materials. Unlike insert molding, overmolding is used to enhance the grip, slip resistance, or texture of products such as power tool handles, toothbrushes, and sealing gaskets. Overmolding does not require the embedding of prefabricated metal parts; instead, it focuses more on the physical adhesion or chemical bonding of materials. Understanding how it works can help determine which process is better suited for a particular structural design or functional need.

Overmolding Benefits

Overmolding is a process in which two or more different materials are combined through multiple injection molding steps, usually to coat a base part with a layer of soft or functional material. The process begins with the injection molding of a base material (usually a rigid plastic or metal), which is then placed into another mold for a second injection, where a soft rubber or other material is applied to the surface to create a strong bond between the materials. Unlike insert molding, overmolding is used to enhance the grip, slip resistance, or texture of products such as power tool handles, toothbrushes, and sealing gaskets. Overmolding does not require the embedding of prefabricated metal parts, focusing instead on the physical adhesion or chemical bonding of materials. Understanding how it works can help determine which process is better suited for a particular structural design or functional need.

Disadvantages of Overmolding

Despite the obvious advantages of overmolding in multi-material combination, there are some limitations in practical application.

Firstly, material selection must be compatible, otherwise problems such as delamination and poor bonding are likely to occur, affecting product performance and service life.

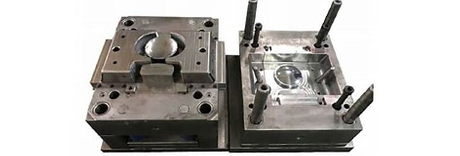

Second, the mold structure required for overmolding is complex, usually requiring double or multiple molds to match, resulting in higher mold development costs and longer cycle times.

In addition, the entire molding process requires strict temperature control, injection pressure and material fluidity, which may cause molding defects if not properly done.

It may not be economical to use the overmolding process for small quantities or simple structures. At the design stage, the accuracy and stability of the pre-molded substrate should also be considered to ensure the accuracy and bonding effect of the subsequent overmolding.

Therefore, when deciding whether or not to use overmolding, the difficulty of the process, the cost of production and the functional requirements of the final product should be evaluated comprehensively.

Conclusion: Choosing the Right Molding Technique

Understanding the difference between insert molding and overmolding is critical when choosing the right manufacturing process.

Insert molding is better suited for embedding metal or other functional parts into plastic for structural reinforcement or electrical connections, making it ideal for applications requiring high-strength bonding.

Overmolding, on the other hand, excels in multi-material integrations, especially for products with enhanced feel, slip resistance, or sealing properties.

Each process has its own characteristics in terms of mold design, complexity, and material requirements. Insert molding is generally better suited for functional components, while overmolding offers more advantages for consumer products and parts designed for comfort.

Ultimately, the choice of which molding method to use should be based on a comprehensive evaluation of the product structure, functional requirements, production costs, and batch sizes. This will help you find the most suitable injection molding solution for your project, achieving an optimal balance between performance and efficiency.
