Rubber-to-Metal Bonded Parts: How Custom Components

Introduction

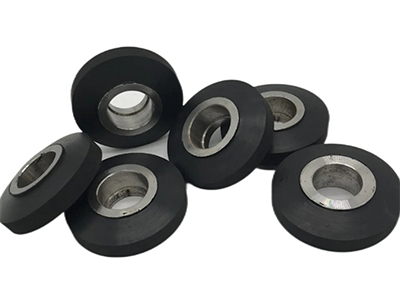

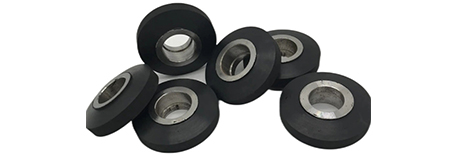

Rubber-to-metal bonded parts combine the flexibility of elastomers with the strength and dimensional stability of metal in one engineered component. Through rubber-to-metal bonding, a rubber layer is permanently attached to prepared metal inserts, creating a strong interface that can withstand mechanical loads, vibration, pressure, and environmental exposure.

Depending on the product structure and production requirements, manufacturers may use an overmoulding process or other bonding methods to form the rubber around the metal substrate. This approach allows engineers to place sealing, cushioning, insulation, or vibration-control functions directly where they are needed.

Unlike separate rubber and metal pieces assembled afterward, rubber and metal composite components can reduce part count and improve structural integration. With suitable material selection, surface preparation, and process control, these components can deliver excellent durability and reliability in demanding industrial applications, including automotive systems, machinery, energy equipment, and fluid-control assemblies.

Understanding the Rubber-to-Metal Overmoulding Process

Rubber-to-metal overmoulding begins with careful metal insert preparation, because the bond depends heavily on the condition of the substrate. The metal surface is first cleaned to remove oil, dirt, oxidation, and other contaminants. Depending on the material and application, sandblasting may be used to create a controlled rough texture and improve contact between the metal and elastomer. A bonding primer or adhesive system is then applied to the prepared surface. During molding, the rubber flows around the insert and contacts the treated surface. For materials such as EPDM, NBR, and silicone, heat and pressure activate the bonding system while the elastomer undergoes rubber vulcanisation. Proper temperature, pressure, and curing time are essential for consistent elastomer adhesion.

The final connection can rely on both chemical bonding and mechanical interlocking. Chemical bonding creates adhesion at the rubber-metal interface, while grooves, holes, knurls, or other insert features can provide additional physical retention. With thermoset elastomers, compression overmoulding is commonly used to form and cure the rubber around the insert. By contrast, thermoplastic materials such as TPE and TPU can typically be processed through injection overmoulding, where the heated material flows around the metal insert and solidifies after cooling. The appropriate process depends on the elastomer, geometry, bonding requirements, production volume, and operating environment.

Advantages of Rubber-to-Metal Overmoulding

Stronger Integration and Better Production Efficiency

Rubber-to-metal overmoulding combines elastomer and metal into one integrated component, reducing the need for separate fastening, adhesive application, or secondary assembly. Compared with relying only on mechanical bonding, a properly designed interface can provide both retention and reliable structural bonding between the two materials. This integrated approach supports better material integration and can simplify the overall manufacturing process. With suitable tooling and controlled molding conditions, manufacturers can improve production efficiency while reducing handling steps and potential assembly errors. Process monitoring and process optimisation can further improve bonding consistency, dimensional stability, and curing performance. For high-volume applications, eliminating unnecessary assembly operations can contribute to a reduced assembly cost. The result is a more streamlined production route that combines multiple functions into a single custom component.

Greater Design Flexibility and Long-Term Performance

Another advantage is the ability to create customised components that combine metal strength with rubber flexibility, sealing, cushioning, or vibration isolation. This design flexibility allows engineers to integrate protective layers, or mounting features directly around a metal insert. In some applications, this material integration can reduce the number of individual parts and support lighter, more compact designs, creating opportunities for lightweight components without sacrificing required structural support. A well-designed bonded interface also reduces unwanted movement between the elastomer and substrate, supporting component reliability during repeated loading and vibration. Depending on the selected materials and operating conditions, the finished part can provide improved durability, sealing performance, and resistance to environmental exposure. This makes the process attractive for demanding automotive, machinery, energy, and industrial applications.

Industrial Uses of Rubber-to-Metal Bonded Parts

Automotive and Railway Applications

In automotive and railway systems, rubber-to-metal overmoulding is widely used where vibration control, sealing, and structural support must work together. Typical products include anti-vibration mounts, silent blocks, bushings, and suspension-related components. Metal inserts provide the required mounting strength, while the rubber layer absorbs vibration, limits shock transmission, and helps reduce operating noise. In vehicles and railway equipment, these parts may experience repeated loads, temperature changes, moisture, and road or track vibration. A bonded construction helps maintain the position of the elastomer during service and can reduce the number of separate components. By selecting an appropriate rubber compound, insert material, and bonding system, manufacturers can develop durable components suited to specific mechanical and environmental conditions.

Hydraulic and Industrial Manufacturing

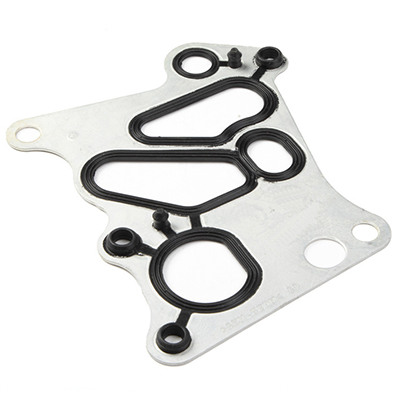

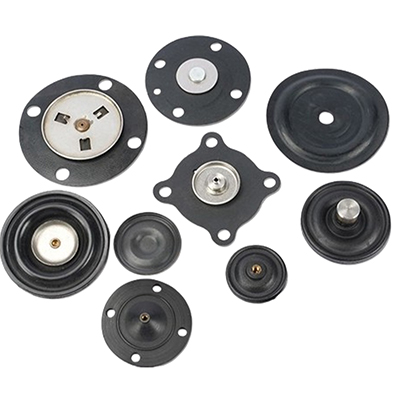

Hydraulic equipment and industrial machinery often require reliable sealing systems that can withstand pressure, movement, and exposure to fluids. Rubber-metal composite components can be used in gaskets, valves, pumps, membranes, and specialized sealing assemblies. The metal substrate can provide dimensional support, while the molded rubber creates the flexible sealing surface. In manufacturing equipment, similar designs can also serve as damping components or protective interfaces around moving and fixed assemblies. The use of metal inserts allows engineers to integrate mounting or reinforcement features directly into the molded part. Depending on operating temperature, pressure, fluid exposure, and movement, materials such as NBR, EPDM, FKM, or silicone can be considered. This flexibility makes the process suitable for demanding industrial applications requiring repeatable sealing and long service life.

Furniture and Lighting Components

The process is not limited to heavy industrial equipment. In furniture and lighting products, rubber-to-metal molding can provide practical solutions for mounting, cushioning, insulation, and surface protection. Metal inserts can provide a secure connection to frames, brackets, or hardware, while the molded rubber helps prevent scratching, reduce vibration, and improve contact between components. Lighting assemblies may use rubber-metal parts for cable protection, mounting interfaces, seals, or vibration-resistant supports. Furniture manufacturers can apply similar designs to adjustable feet, connection elements, shock-absorbing mounts, and protective fittings. Because the rubber geometry can be customized around different insert shapes, manufacturers can create compact components that combine several functions. This helps simplify assembly while supporting a cleaner product design and improved durability during repeated use.

Marine and Environmental Protection

Marine equipment requires components that can withstand moisture, salt exposure, vibration, and changing environmental conditions. Rubber-to-metal overmoulding can support applications such as marine mounts, bushings, gaskets, pump components, valve seals, and other protective or damping components. The bonded rubber layer can help isolate metal surfaces, limit vibration transmission, and provide sealing around connection points. For outdoor and marine environments, material selection is particularly important because the rubber must remain stable under prolonged exposure to water, temperature changes, and environmental contaminants. Engineers can also modify the insert geometry and rubber profile to meet specific installation requirements. This combination of structural reinforcement, sealing, and vibration control makes the technology useful across marine, industrial, and other harsh-environment applications where conventional separate-part assemblies may be less efficient.

Conclusion

Rubber-to-metal overmoulding offers an effective way to combine the complementary properties of two different materials in one engineered component. Rubber provides elasticity, cushioning, sealing, and vibration absorption, while metal contributes strength, dimensional stability, and structural support. When these materials are integrated through controlled overmoulding, the resulting composite components can achieve the reliability and durability required for demanding industrial applications. A properly engineered interface can also support greater mechanical precision than a simple assembly of separate parts. By reducing component count and integrating multiple functions into one product, manufacturers can create compact solutions that are easier to install and maintain. The final performance depends on more than the molding process itself. Careful material selection, accurate metal insert design, surface preparation, and process control are all essential for achieving consistent bonding and long-term performance.

Every rubber-metal application has different requirements for load, temperature, chemicals, movement, sealing, and vibration. For this reason, standard components may not always provide the right fit or performance. A capable supplier can develop custom solutions by reviewing the rubber compound, hardness, insert geometry, bonding method, and molding conditions at the early design stage. Professional technical consultation can also identify potential manufacturing issues before tooling begins, helping reduce development changes and production risks. From initial metal insert design and material evaluation to prototype testing, mold development, and series production, an integrated engineering approach creates a smoother path from concept to finished part. For customers requiring reliable sealing, damping, mounting, or structural functions, custom rubber-to-metal components can provide a practical combination of flexibility, strength, stability, and long-term service performance.
