Views: 0 Author: Site Editor Publish Time: 2026-08-03 Origin: Site
Medical device manufacturers face several production pressures at once.
They need accurate components, reliable quality, controlled costs, and predictable delivery. They must also meet project-specific safety, documentation, and regulatory requirements.
A manufacturing process may work well during prototyping. However, it may become too slow or expensive during commercial production.
CNC machining can produce accurate prototypes and low-volume parts. Additive manufacturing supports fast design changes and complex custom shapes. Neither process always provides the best economics for repeated, high-volume production.
Medical plastic injection molding offers a different value.
It uses precision tooling and controlled production parameters. Once the process is established, it can produce large quantities of consistent components.
Manufacturers often choose it for:
Precision medical parts
Disposable medical devices
Medical device housings
Diagnostic components
Integrated plastic assemblies
High-volume consumables
Lightweight clinical equipment
However, injection molding is not automatically suitable for every medical project.
The product design should be stable enough for tooling. Forecast production demand should also justify the initial investment.
This guide explains why manufacturers choose medical plastic injection molding. It also shows when another production method may provide a better fit.
Note: The right manufacturing process should match the complete product lifecycle, not only the prototype stage.
The main value of medical injection molding comes from its combined capabilities.
It supports precision, repeatability, production scalability, and design flexibility within one manufacturing process.
Medical injection molding for precision medical parts starts with an accurately manufactured mold.
The mold cavity reproduces defined dimensions, surfaces, and functional features during each production cycle.
Precision matters for components such as:
Fluid connectors
Diagnostic housings
Snap-fit covers
Sealing components
Device controls
Internal supports
Cartridge components
A connector may need a reliable fit during assembly. A housing may require stable alignment around electronic components. A sealing surface may need controlled dimensions to prevent leakage.
Precision molding depends on several connected factors:
Part geometry
Resin behavior
Mold construction
Gate position
Cooling design
Machine stability
Process monitoring
Buyers should avoid assuming every molded feature can use the same tolerance.
Material shrinkage and wall thickness affect achievable dimensions. Complex geometry may also create local stress, distortion, or warping.
The supplier should identify critical dimensions before tooling begins. It should also explain how those features will be controlled and inspected.
Medical components often need consistent fit and function.
One acceptable sample does not prove long-term production stability. Manufacturers must consider cavity-to-cavity, cycle-to-cycle, and batch-to-batch variation.
A controlled injection molding process can repeatedly reproduce approved geometry.
Stable quality supports:
Predictable assembly
Consistent device performance
Lower rejection rates
Reliable functional testing
Easier production planning
Better traceability
Process monitoring can detect changes before defects become widespread.
Teams may track:
Cycle time
Injection pressure
Part weight
Melt temperature
Mold temperature
Critical dimensions
Visual defects
The required controls depend on component risk, design requirements, and customer specifications.
Medical injection molding quality also depends on mold maintenance.
Worn gates, blocked vents, damaged ejectors, or unstable cooling channels may gradually change component quality. Preventive maintenance helps protect long-term consistency.
Medical injection molding for high-volume production can support thousands or millions of components.
The exact output depends on cavity count, machine capacity, cycle time, automation, and demand.
A single-cavity mold produces one component during each cycle. A multi-cavity mold produces several matching components at once.
Multi-cavity tooling can increase output significantly. However, every cavity should fill, pack, cool, and eject consistently.
Automation can improve production scalability through:
Automatic material feeding
Robotic part removal
Vision inspection
Controlled part handling
Automated assembly
Production data collection
These systems can reduce manual variation. They may also support cleaner handling and faster production.
Scaling should still follow controlled procedures.
Adding another machine, mold, production line, or cavity may affect process behavior. The supplier should assess and approve these changes before full production begins.
Injection molding requires an initial tooling investment.
The mold may include precision cavities, sliders, cooling channels, polished surfaces, or hot-runner systems. These features increase upfront costs.
However, tooling cost is distributed across the total production quantity.
As production volume rises, tooling cost per component usually falls.
Unit economics also depend on:
Number of mold cavities
Cycle time
Resin price
Part weight
Scrap rate
Labor requirements
Automation level
Secondary operations
A simple unit-price comparison may be misleading.
Buyers should calculate the lifetime production cost. This calculation should include tooling, maintenance, qualification, assembly, packaging, and expected demand.
Injection molding may be unattractive for several dozen components. It may become highly competitive across repeated medium- or high-volume production runs.
Medical injection molding for complex medical components supports detailed three-dimensional geometry.
The mold can form several functional features during one production cycle.
Examples include:
Snap-fits
Ribs
Bosses
Threads
Clips
Living hinges
Sealing features
Cable guides
These features may reduce separate hardware or assembly steps.
Part consolidation can provide several advantages:
Fewer individual components
Lower assembly labor
Reduced inventory
Fewer joining operations
Lower alignment risk
Simpler supply management
Insert molding places another prepared component inside the mold before injection.
It may integrate:
Metal contacts
Threaded inserts
Tubes
Electronic elements
Preformed plastic components
Overmolding can add a flexible grip or seal over a rigid base. Two-shot molding can combine two materials during an automated sequence.
These methods expand design flexibility. They also require careful evaluation of materials, bonding, tooling, and process control.
Injection molding supports many thermoplastic materials.
Manufacturers can select rigid, flexible, transparent, heat-resistant, or chemical-resistant options.
Common material considerations include:
Mechanical strength
Impact resistance
Transparency
Flexibility
Cleaning chemicals
Sterilization method
Patient contact
Color stability
Dimensional stability
Supplier documentation
The polymer name alone does not prove suitability.
Two polycarbonate grades may contain different additives. They may also have different test data, processing windows, and sterilization performance.
Some components require documented medical-grade resins. Others may use approved engineering plastics supported by project-specific testing and traceability.
The selected grade should match the complete device environment.
Plastic can reduce component weight compared with many metal alternatives.
Lower weight may benefit:
Handheld instruments
Wearable monitors
Portable diagnostic equipment
Emergency equipment
Device enclosures
Repeated-use controls
A lighter instrument may reduce handling fatigue. A lighter wearable may improve patient comfort.
Plastic components can also resist impact, vibration, chemicals, and repeated cleaning.
However, durability depends on the selected resin and actual application environment.
A material suitable for a dry enclosure may not tolerate steam sterilization. A transparent resin may react poorly to certain disinfectants.
Note: The strongest reason to choose medical plastic injection molding is its combination of precision, repeatability, and scale.
Injection molding performs best under specific project conditions.
Medical injection molding for disposable medical devices can support stable, repeated demand.
Potential applications include:
Syringe components
Diagnostic cartridges
Pipette parts
Sample containers
Fluid connectors
Drug-delivery components
These products often require consistent dimensions and efficient output.
Production tooling becomes easier to justify when lifetime demand is predictable.

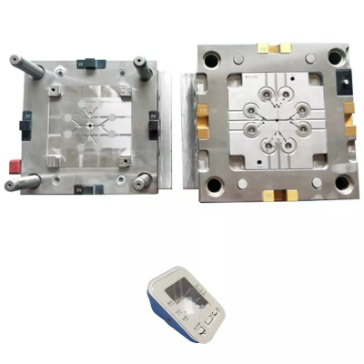

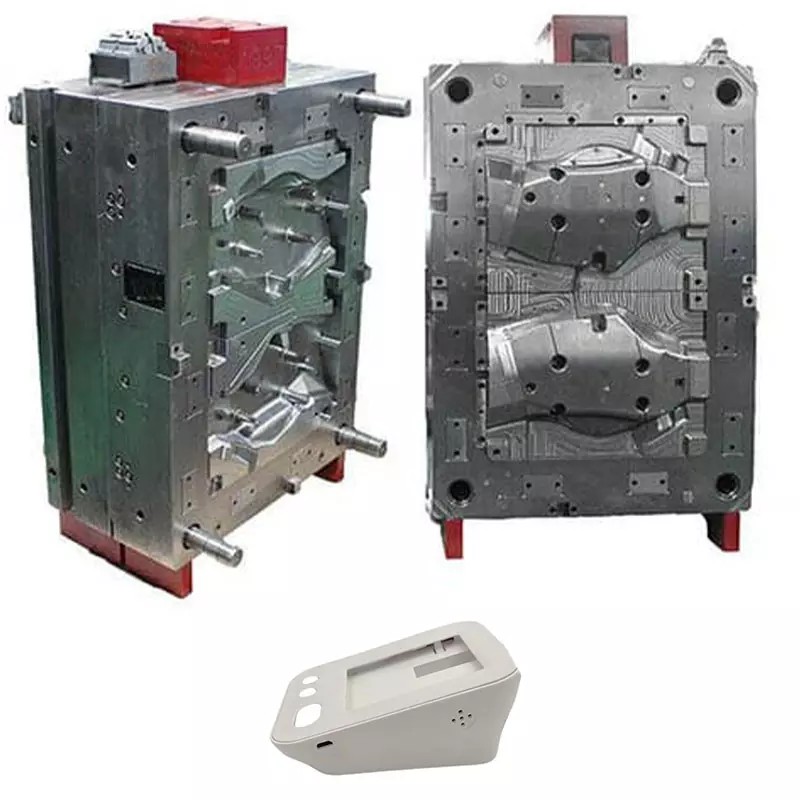

Medical injection molding for medical device housings supports structural, functional, and cosmetic requirements.
Typical components include:
Monitor enclosures
Diagnostic equipment housings
Internal frames
Buttons
Controls
Protective covers
Connector bodies
The mold can reproduce surface textures, assembly features, and internal support geometry.
This capability may reduce later machining, fastening, and assembly work.
Injection molding suits components requiring several molded features.
A housing may include clips, ribs, screw bosses, and cable guides. A cartridge may include channels, alignment features, and sealing surfaces.
Producing these features together may reduce assembly risk.
However, the product design must follow molding principles. Draft, wall thickness, gate location, cooling, and ejection still matter.
Production tooling works best after the design reaches sufficient maturity.
Late geometry changes may require:
Tool modification
New sampling
Updated inspection
Repeated testing
Additional qualification
Demand forecasts also guide cavity and tooling decisions.
Bridge tooling may support an early market launch. Hardened production tooling may suit stable, long-term demand.
Tip: Confirm design maturity and lifetime volume before approving production tooling.
Each manufacturing process solves a different production problem.
CNC machining requires little or no dedicated molding tooling.
It suits prototypes, low volumes, and features that are difficult to mold.
However, each component requires additional machine time. Per-part cost often remains high as production volume increases.
Injection molding requires more upfront investment. It usually provides faster repeated production after tooling approval.
3D printing supports fast design iteration and customized components.
It works well during early development. It may also suit patient-specific products.
However, printed parts may have different surfaces, strength, and material behavior. They may not fully represent final molded production components.
Injection molding usually provides stronger production scalability, repeatability, and material consistency.
Thermoforming suits trays, covers, and simpler thin-wall shapes.
Extrusion suits tubes and continuous profiles.
Injection molding supports more detailed three-dimensional components. It can form internal supports, clips, bosses, and complex surfaces.
Process | Best Fit | Main Limitation |
|---|---|---|
Injection molding | Repeatable medium- to high-volume parts | High initial tooling cost |
CNC machining | Prototypes and low-volume precision parts | Higher unit cost at scale |
3D printing | Fast iterations and custom components | Slower high-volume production |
Thermoforming | Trays and simple thin-wall shells | Limited detailed geometry |
Extrusion | Tubes and continuous profiles | Limited final part shape |
Several application groups gain clear value from injection molding.
Diagnostic and disposable products often need repeatable high-volume output.
Examples include:
Diagnostic cartridges
Test components
Sample-handling products
Drug-delivery parts
Fluid-management components
Injection molding helps maintain consistent dimensions across large production quantities.
Clinical equipment may require strong, lightweight, and cleanable parts.
Injection molding can produce:
Instrument handles
Equipment controls
Protective covers
Connectors
Structural housings
Material selection should reflect repeated use, cleaning chemicals, mechanical loads, and sterilization conditions.
Wearable products need compact, lightweight, and comfortable components.
Injection molding can create:
Sensor housings
Attachment clips
Battery covers
Monitor enclosures
Soft-touch areas
Overmolding may add grip, sealing, shock resistance, or patient-contact comfort.
High-performance polymers may replace metal in selected applications.
Possible benefits include:
Lower weight
Chemical resistance
Imaging performance
Electrical insulation
Design flexibility
However, not every molded plastic is suitable for implants.
Implant-related parts require stricter material, biological, regulatory, and process evaluation.
Medical injection molding selection criteria should cover the entire product program.
Buyers should estimate:
Annual volume
Lifetime demand
Product life
Required cavities
Tool maintenance
Replacement risk
Qualification costs
The lowest tooling quote may not provide the lowest total cost.
DFM should review:
Wall thickness
Draft
Undercuts
Tolerances
Gate location
Ejection
Cooling
Parting lines
It should also identify opportunities for part consolidation.
A strong review reduces tool changes after manufacturing begins.
The material should match patient contact, cleaning, sterilization, and mechanical needs.
Buyers should confirm the exact approved resin grade.
Colorants, fillers, and additives may also affect:
Biocompatibility
Strength
Appearance
Sterilization resistance
Process stability
Quality requirements should be defined before supplier selection.
Buyers should clarify:
Critical dimensions
Inspection frequency
Material traceability
Change control
Process validation
Cleanliness controls
Packaging requirements
Regulatory compliance support
Not every medical component requires a classified cleanroom.
The required production environment depends on device risk, patient contact, intended use, and customer requirements.
Tip: Base the decision on volume, risk, design maturity, and quality requirements—not part price alone.
Medical plastic injection molding also has important constraints.
Precision molds require specialized engineering and machining.
Cost rises through:
Additional cavities
Sliders and lifters
Surface textures
Cooling systems
Optical polishing
Hot-runner systems
Prototype or bridge tools may reduce early investment. However, they may provide shorter service life.
Design changes become more expensive after mold construction.
A small geometry update may affect gates, cooling, ejection, or cavity steel.
It may also require new samples, inspection updates, or repeated qualification.
Early DFM and formal design approval reduce this risk.
Very low-volume products may favor CNC machining or 3D printing.
Patient-specific products may not justify conventional tooling.
Some internal channels, lattice structures, or inaccessible undercuts may also resist standard injection molding.
Medical projects may restrict regrind or recycled materials.
Waste may come from:
Runners
Startup parts
Purging
Rejected components
Material changes
Manufacturers can reduce waste through efficient cavity layouts, stable process control, and optimized component design.
They should not assume every medical plastic can be recycled internally.
Choosing a medical injection molding supplier requires more than checking machine lists.
Review the supplier’s experience with comparable components.
Ask about:
Medical device housings
Precision small parts
Functional assemblies
Material traceability
Change control
Nonconforming product management
Regulatory compliance support
Supplier qualification should match the actual project scope.
The supplier should explain its approach to:
DFM
Mold design
Tool trials
Mold maintenance
Process development
Inspection
Production scale-up
Yeeshine-Tech publicly presents integrated capabilities covering engineering design, CNC prototyping, mold manufacturing, and injection molding production. Its published capabilities also include medical injection molding, 2K molding, overmolding, and medical device enclosure applications.
Buyers should verify project-specific validation, material control, cleanliness, and regulatory documentation requirements before supplier approval.
Ask how the supplier controls:
Resin grades
Material lots
Drying conditions
Parameter changes
Mold transfers
Machine changes
Inspection records
Nonconforming components
A capable supplier should explain these controls clearly.
A complete supplier comparison should include:
Evaluation Area | Buyer Question |
|---|---|
Tooling quality | Can the mold support expected production volume? |
Validation support | Which qualification activities are available? |
Material control | How are grades and lots traced? |
Regulatory support | Which records support customer compliance needs? |
Capacity | Can production scale reliably? |
Maintenance | How is mold condition managed? |
Communication | How are changes reviewed and approved? |
Supply continuity | What happens during equipment failure? |
Explore Yeeshine-Tech’s plastic injection mold solutions.
Tip: Choose a supplier that explains its process controls, not only its equipment.
Why choose medical plastic injection molding?
It provides a practical combination of:
High precision
Repeatable quality
Production scalability
Lower unit costs at volume
Complex design capability
Broad material selection
Lightweight components
Reduced assembly opportunities
It performs best when production volume justifies tooling.
The product design should also be stable and suitable for molding.
Before selecting the process, buyers should ask:
How many parts are required?
Is the design ready for tooling?
Which material grade is suitable?
What sterilization method applies?
Can molded features reduce assembly?
What validation is required?
Which cleanliness controls apply?
What regulatory compliance support is available?
Can the supplier support future production volume?
Medical plastic injection molding is a strong choice for precise, repeatable, and scalable components.
Its value becomes greatest when design, tooling, materials, quality controls, supplier capability, and lifetime economics are considered together.
A: Medical Injection Molding offers repeatable quality, production scalability, and lower unit costs after tooling approval.
A: Medical Injection Molding combines precision tooling, stable parameters, and inspection to reproduce critical features.
A: Medical Injection Molding requires upfront tooling, but larger volumes usually improve cost efficiency.
A: Injection molding integrates ribs, clips, threads, and bosses more efficiently at scale.
A: Review regulatory compliance support, traceability, material control, process validation, capacity, and mold maintenance.
