Views: 0 Author: Site Editor Publish Time: 2025-09-18 Origin: Site
Have you ever wondered how complex parts are made with precision? Vacuum casting is a fascinating process that revolutionizes manufacturing.
In this article, we will explore the definition and importance of vacuum casting. You'll learn about its history, applications in various industries, and how the process works step-by-step.
Vacuum casting is a manufacturing process used to create high-quality parts. It involves pouring liquid material into a mold while under vacuum pressure. This method minimizes air bubbles and ensures a smooth finish.
The roots of vacuum casting can be traced back to the 20th century. Initially used for prototyping, it has evolved significantly. Over the years, advancements in materials and techniques have made it popular in various industries.
Vacuum casting plays a crucial role in modern manufacturing. Here’s why it matters:
● Prototyping: It allows for rapid prototyping, helping designers test their ideas quickly.
● Small-Batch Production: Ideal for small production runs, it reduces costs compared to traditional methods.
Vacuum casting is widely used across different sectors, including:
● Automotive: For creating parts like dashboards and prototypes.
● Aerospace: To produce lightweight components that require precision.
● Consumer Goods: In manufacturing items like electronic casings and toys.
The vacuum casting process can be broken down into several steps:
1. Mold Creation: First, a master model is made, typically from a durable material.

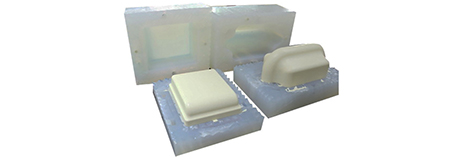

2. Silicone Mold: A silicone mold is created around the master model.
3. Vacuum Setup: The mold is placed in a vacuum chamber to remove air.
4. Pouring Material: Liquid material is poured into the mold under vacuum pressure.
5. Curing: The material cures, forming the final part.
6. Demolding: Once cured, the part is removed from the mold.
Each step is crucial for achieving high precision and quality in the final product.
This overview of vacuum casting highlights its significance and versatility in manufacturing. It’s a process that continues to evolve, shaping the future of production.
Vacuum casting is renowned for its ability to produce highly detailed parts. But how does it achieve this level of precision? The key lies in the combination of advanced techniques and high-quality materials.
● Vacuum Environment: By removing air from the mold, it prevents bubbles and imperfections.

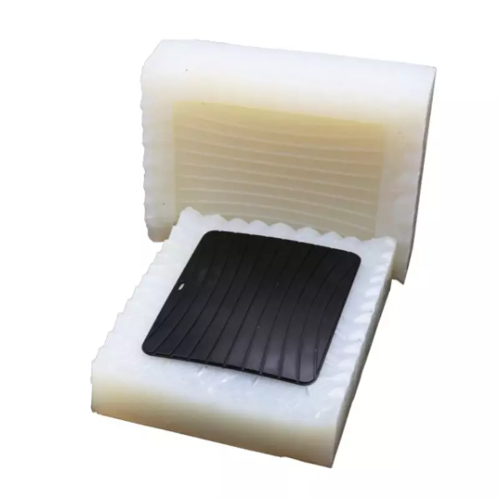

● Silicone Molds: These molds can capture fine details, making them ideal for intricate designs.
The vacuum casting process involves several critical steps:
1. Master Model Creation: A highly accurate master model is crafted, often from durable materials.

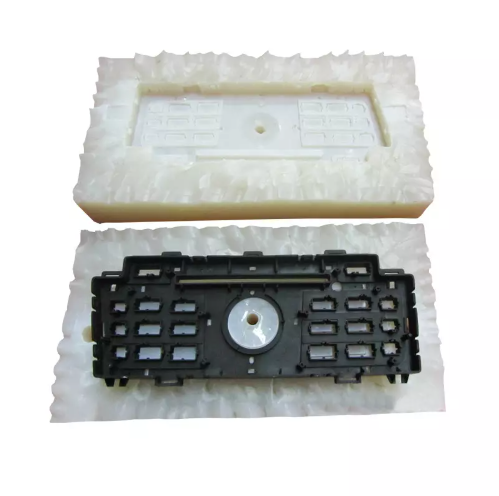

2. Mold Production: A silicone mold is made around the master model. This mold has excellent flexibility and detail capture.
3. Material Pouring: Liquid resin is poured into the mold under vacuum conditions, ensuring it fills every nook and cranny.
4. Curing: The resin hardens, forming a precise replica of the master model.
Materials: Common materials include polyurethane and silicone, known for their ability to replicate details accurately.
When comparing vacuum casting to other methods, its precision stands out. Here’s a quick look:
Casting Method | Precision Level | Surface Finish | Best Use Cases |
Vacuum Casting | High | Excellent | Prototypes, small batches |
Sand Casting | Moderate | Rough | Large, simple parts |
Die Casting | High | Good | High-volume production |
Investment Casting | Very High | Excellent | Complex, high-precision parts |
As shown, vacuum casting offers a balance of precision and surface quality, making it ideal for detailed applications.
Many industries benefit from the high precision of vacuum casting. Here are a few examples:
● Aerospace Components: Parts must meet strict tolerances, and vacuum casting delivers the required accuracy.
● Medical Devices: Items like surgical tools require precision for safety and effectiveness.
● Consumer Electronics: High-end products often use vacuum-cast components for a sleek finish and precise fit.
These examples illustrate how vacuum casting meets the demanding standards of various fields, showcasing its exceptional capabilities.
Vacuum casting is celebrated for its outstanding surface finish. So, what makes it so effective? The combination of advanced materials and meticulous processes plays a crucial role.
● Vacuum Environment: By eliminating air during the pouring phase, it reduces defects like bubbles.
● Mold Quality: High-quality silicone molds provide a smooth surface, allowing for a flawless final product.
The choice of materials and techniques is vital for achieving excellent finishes. Here’s a breakdown:
1. Silicone Molds: These molds are flexible and can capture intricate details while maintaining a smooth surface.
2. Casting Techniques: The vacuum process ensures that the liquid resin flows evenly, filling all areas of the mold without leaving gaps.
Key Points:
● Silicone molds are reusable, making them cost-effective for multiple casts.
● The vacuum technique enhances the mold's ability to produce high-quality surfaces.
A superior surface finish does more than look good; it also enhances product functionality. Here’s how:
● Visual Appeal: Products with excellent finishes are often more attractive to consumers, increasing marketability.
● Performance: A smooth surface can improve the fit and function of components, especially in mechanical applications.
Benefits:
● Better aesthetics lead to higher customer satisfaction.
● Improved functionality can result in longer-lasting products.
Many industries utilize vacuum casting to achieve superior finishes. Here are some notable examples:
● Consumer Electronics: Devices like smartphones and tablets benefit from sleek, polished surfaces that enhance their appeal.
● Automotive Parts: Components such as dashboards require smooth finishes for both aesthetics and ease of cleaning.
● Medical Equipment: Items like surgical instruments need smooth surfaces to ensure safety and ease of sterilization.
These examples highlight how vacuum casting's excellent surface finish can greatly impact various products, making them more desirable and functional.
When it comes to small production runs, vacuum casting shines as a cost-effective solution. But why is that? The answer lies in its efficient process and lower overhead costs.
● Reduced Tooling Costs: Unlike traditional methods, vacuum casting requires less expensive molds.
● Faster Turnaround: It allows for quicker production times, saving both time and money.
Let's break down the costs:
Method | Tooling Costs | Production Speed | Ideal Batch Size |
Vacuum Casting | Low | Fast | Small to Medium |
Injection Molding | High | Moderate | Large |
As shown, vacuum casting has significantly lower tooling costs. This makes it a smart choice for projects that don’t require mass production.
Consider a few real-world scenarios where vacuum casting saved money:
1. Prototyping: A tech startup needed a prototype for a new gadget. Using vacuum casting, they saved 40% on costs compared to injection molding.
2. Small Batch Orders: A company wanted to produce 100 custom parts. Vacuum casting allowed them to complete the project at a fraction of the cost of traditional methods.
Key Takeaway: In both cases, vacuum casting proved to be the most economical option.
There are specific situations where vacuum casting is the clear winner:
● Limited Quantities: When only a few pieces are needed, vacuum casting is more viable.
● Rapid Prototyping: It allows for quick adjustments and iterations without breaking the bank.
● Complex Designs: For intricate designs that require high detail, vacuum casting often outperforms injection molding.
Why Choose Vacuum Casting?
● Lower initial investment.
● Flexibility in design changes.
● Faster production for small runs.
These factors make vacuum casting an attractive option for businesses looking to minimize costs while maintaining quality.
One of the standout features of vacuum casting is its material versatility. This technique can accommodate a wide range of materials, making it suitable for various applications.
● Polyurethane: Commonly used for its flexibility and durability.
● Silicone: Ideal for creating intricate designs due to its excellent detail reproduction.
Here’s a closer look at some popular materials used in vacuum casting:
Material | Properties | Applications |
Polyurethane | Flexible, strong, and durable | Automotive parts, prototypes |
Silicone | High detail, flexible | Molds, medical devices |
Epoxy Resins | Rigid, high-strength | Industrial components |
Thermoplastics | Reusable, versatile | Consumer products, packaging |
These materials allow for significant customization based on project needs.
The ability to use various materials provides several advantages:
● Tailored Solutions: Different projects require different properties. Versatile materials mean we can choose the best fit.
● Cost Efficiency: Selecting the right material can lead to reduced costs and improved performance.
● Enhanced Functionality: Certain materials can provide specific benefits, like heat resistance or flexibility.
Innovation is key in vacuum casting. Here are some cutting-edge materials making waves:
● Bio-based Resins: Eco-friendly options that reduce environmental impact.
● Conductive Plastics: Used in electronics, these materials can conduct electricity while maintaining the benefits of plastic.
● Composite Materials: Combining different materials for enhanced strength and lightweight properties.
Why It Matters: Using innovative materials opens doors to new applications and improves existing products.
The versatility in materials is one of the many reasons vacuum casting is a preferred choice across industries. It allows for creativity and practicality, catering to diverse project requirements.
Vacuum casting is a game-changer for rapid prototyping. It allows designers to quickly create high-quality prototypes without the lengthy delays associated with traditional methods.
● Speedy Mold Creation: Molds can be made in a fraction of the time.
● Quick Turnaround: From design to prototype, the process is streamlined.
Here's a look at the typical timeline for vacuum casting compared to other methods:
Process | Vacuum Casting | Injection Molding |
Design Phase | 1 week | 2-4 weeks |
Mold Creation | 1-2 weeks | 4-8 weeks |
Prototype Production | 1 week | 1-2 weeks |
Total Time | 3-4 weeks | 7-14 weeks |
As you can see, vacuum casting significantly reduces the total time from concept to prototype.
Let’s explore some real-world examples where vacuum casting excelled in rapid prototyping:
● Electronics Start-up: They needed a prototype for a new gadget. Using vacuum casting, they went from design to prototype in just three weeks, enabling them to secure funding quickly.
● Automotive Industry: A company required rapid testing of a new component. Vacuum casting allowed them to produce multiple prototypes in a short time, leading to faster design iterations.
Iterative design is essential for refining products. Vacuum casting supports this process in several ways:
● Fast Feedback: Designers receive prototypes quickly, allowing for immediate testing and adjustments.
● Cost-Effective Iterations: Each iteration can be produced without significant costs, encouraging experimentation.
● Flexibility: Changes can be made easily, adapting to new insights or requirements.
In Summary: Vacuum casting accelerates the prototyping process, making it an invaluable tool for designers and engineers. Its speed and flexibility provide a competitive edge in product development.
Vacuum casting is known for its efficiency, particularly in reducing waste. This method allows for precise control over material usage, which leads to less scrap and fewer byproducts.
● Minimal Excess Material: The process uses only what is necessary for each mold.
● Reusability: Leftover materials can often be reused in future projects.
Material efficiency is a key advantage of vacuum casting. Here’s how it works:
● Accurate Measurements: Precise calculations ensure that the right amount of material is used.
● Low Tolerance for Errors: The controlled environment reduces the chances of defects, minimizing wasted materials.
Aspect | Vacuum Casting | Traditional Methods |
Material Waste | Low | High |
Reusability of Materials | High | Low |
Environmental Impact | Minimal | Significant |
When comparing vacuum casting to other manufacturing methods, its sustainability shines through:
● Injection Molding: Often generates more waste due to excess material and defects.
● CNC Machining: Can produce significant scrap from cutting processes.
Vacuum casting stands out as a more sustainable option.
Beyond material efficiency, vacuum casting incorporates various eco-friendly practices:
● Use of Recyclable Materials: Many materials used in vacuum casting are recyclable, further reducing environmental impact.
● Energy Efficiency: The process typically requires less energy than traditional methods, contributing to lower carbon footprints.
In Conclusion: Vacuum casting is an environmentally friendly choice, minimizing waste and promoting sustainable practices. Its efficient use of materials makes it a responsible option for modern manufacturing.
Vacuum casting excels at producing intricate shapes. This method allows for the creation of:
● Thin Walls: Perfect for lightweight components.
● Intricate Patterns: Detailed designs that enhance aesthetics.
● Hollow Structures: Useful for reducing weight while maintaining strength.
Here are some examples of complex geometries achievable through vacuum casting:
1. Automotive Parts: Components like air intake manifolds feature complex curves and channels.
2. Consumer Electronics: Housing for gadgets often includes unique shapes for better ergonomics.
3. Medical Devices: Intricate designs allow for functional and user-friendly products.
Industry | Example | Complexity Level |
Automotive | Air intake manifold | High |
Consumer Electronics | Smartphone cases | Medium |
Medical Devices | Surgical instruments | High |
Creating complex geometries offers several advantages:
● Enhanced Functionality: Intricate designs can improve product performance.
● Aesthetic Appeal: Unique shapes attract customers and stand out in the market.
● Optimized Weight Distribution: Complex structures can lead to better balance and usability.
While vacuum casting is versatile, there are limitations:
● Mold Complexity: Extremely intricate designs may require complex molds, which can be costly.
● Material Constraints: Some materials may not support very fine details or sharp edges.
● Production Time: More complex shapes might extend the production timeline.
In summary, vacuum casting is a powerful tool for creating complex geometries, offering significant benefits in design and functionality, while also facing some limitations.
Consistency is crucial in manufacturing for several reasons:
● Quality Assurance: Consumers expect the same quality in every product.
● Brand Reputation: Consistent products build trust and loyalty.
● Operational Efficiency: Reduces errors and rework, saving time and resources.
Vacuum casting is renowned for its reliability. Here’s why:
● Controlled Environment: The vacuum process minimizes variables that can lead to inconsistencies.
● Precision Engineering: Each mold is crafted with high accuracy, ensuring uniform results.
Factor | Impact on Consistency |
Environmental Control | Reduces defects |
Material Quality | Ensures uniformity |
Process Repetition | Maintains standardization |
Reproducibility is a hallmark of vacuum casting. It achieves this through:
● Standardized Processes: Each step follows strict guidelines to ensure uniform outputs.
● Batch Monitoring: Regular checks during production help maintain quality across different batches.
Quality control is integral to vacuum casting. Here are some key measures:
● Regular Inspections: Each batch undergoes thorough inspections for defects.
● Testing Samples: Random samples are tested to verify consistency and quality.
● Feedback Loops: Continuous improvement practices help identify and rectify issues quickly.
In essence, vacuum casting stands out for its consistency and reproducibility, making it a reliable choice for manufacturers aiming for high-quality products.
Vacuum casting is known for its short lead times. Several factors contribute to this efficiency:
● Rapid Prototyping: Quick mold creation speeds up the initial phases.
● Efficient Material Usage: Minimal waste means less time spent on cleanup and rework.
● Streamlined Processes: The method involves fewer steps compared to traditional manufacturing.
Factor | Impact on Lead Time |
Prototyping Speed | Accelerates project start |
Reduced Waste | Saves time in production |
Process Efficiency | Shortens overall timeline |
Here’s a typical timeline for vacuum casting projects:
1. Order Confirmation: 1-2 days
2. Mold Creation: 3-5 days
3. Casting Production: 2-4 days
4. Quality Control: 1-2 days
5. Delivery Preparation: 1 day
This means projects can often be completed in just one to two weeks from order to delivery.
In industries like automotive, aerospace, and consumer electronics, lead times are critical. Here’s why:
● Market Demand: Quick turnaround meets customer expectations.
● Competitive Edge: Faster delivery can differentiate a brand from its competitors.
● Adaptability: Short lead times allow companies to respond quickly to market changes.
Many successful projects highlight the speed of vacuum casting. Here are a few examples:
● Automotive Components: Parts delivered within one week for urgent repairs.
● Consumer Products: Prototypes developed in five days for product launches.
● Medical Devices: Critical devices produced in under two weeks to meet regulatory deadlines.
With its ability to deliver quickly, vacuum casting proves to be an invaluable asset in fast-paced industries.
Vacuum casting is a fantastic choice for customization. Here’s how it works:
● Flexible Mold Design: Molds can be tailored to meet specific client needs.
● Material Variety: A wide range of materials allows for unique properties in each project.
● Adjustable Dimensions: Products can be made to precise specifications, accommodating various requirements.
Customization Aspect | Benefit |
Mold Design | Tailored shapes and sizes |
Material Selection | Unique characteristics |
Dimensional Adjustments | Perfect fit for applications |
The beauty of vacuum casting lies in its ability to create tailored solutions. Clients often seek specific features, and vacuum casting delivers:
● Unique Designs: Custom shapes and aesthetics to match branding.
● Functional Modifications: Adjustments to enhance usability or performance.
● Rapid Prototyping: Quick iterations allow clients to refine their designs efficiently.
Here are some notable projects showcasing the power of customization:
1. Custom Automotive Parts: A manufacturer needed specific engine components that fit perfectly. Vacuum casting provided the precise dimensions and material properties required.
2. Bespoke Electronics Housings: A tech company wanted unique casings for their devices. They received custom designs that matched their branding and functional needs.
3. Medical Device Prototypes: A healthcare startup required prototypes for a new device. Vacuum casting enabled them to create tailored models quickly for testing.
Clients rave about the customization options available through vacuum casting. Here are a few testimonials:
● Automotive Client: “The custom parts fit perfectly, and the turnaround was impressive! Vacuum casting allowed us to innovate quickly.”
● Tech Company: “We loved how we could tweak the designs until they were just right. The flexibility was a game-changer.”
● Healthcare Startup: “Thanks to vacuum casting, we had our prototypes ready in no time. It helped us get to market faster.”
With its extensive customization options, vacuum casting stands out as a versatile solution for various industries.
Vacuum casting offers numerous advantages for manufacturers.
Key benefits include short lead times, customization options, and high-quality results.
These features make it an excellent choice for various industries.
Consider vacuum casting for your next project.
For quotes or more information, feel free to contact us!
A: Vacuum casting uses a vacuum to eliminate air bubbles, resulting in higher quality and precision compared to traditional casting.
A: The process typically takes one to two weeks from order to delivery, depending on complexity.
A: Industries such as automotive, aerospace, electronics, and medical devices benefit significantly from vacuum casting.
A: While vacuum casting is ideal for small to medium runs, it can be adapted for larger production with limitations.
A: Limitations include mold durability and the maximum size of parts that can be produced.
A: Consider the product's intended use, required properties, and compatibility with the casting process to select the appropriate material.
