CNC machining is an advanced manufacturing process used to produce parts with high precision and intricate designs. One of the core methods in CNC machining is CNC turning, which is widely used in the production of cylindrical parts. This article will provide a comprehensive guide on CNC turning, detailing its process, operations, and key advantages. Additionally, we will explore its relationship with CNC machining as a whole, its applications, and frequently asked questions (FAQs) related to the subject.
CNC turning is a subtractive manufacturing process that involves rotating a workpiece while a cutting tool is applied to it, removing material to create the desired shape. It is performed using a CNC (Computer Numerical Control) machine, which automates the turning process. The CNC machine precisely controls the toolpath, ensuring that the material is cut and shaped with high accuracy. The process is often used for creating parts with cylindrical, conical, or rounded geometries.
In CNC turning, the workpiece is held firmly on a rotating spindle, while the cutting tool moves along various axes to remove material. The CNC turning process can produce parts in a variety of materials, including metals such as aluminum, steel, brass, copper, and stainless steel, as well as plastics.

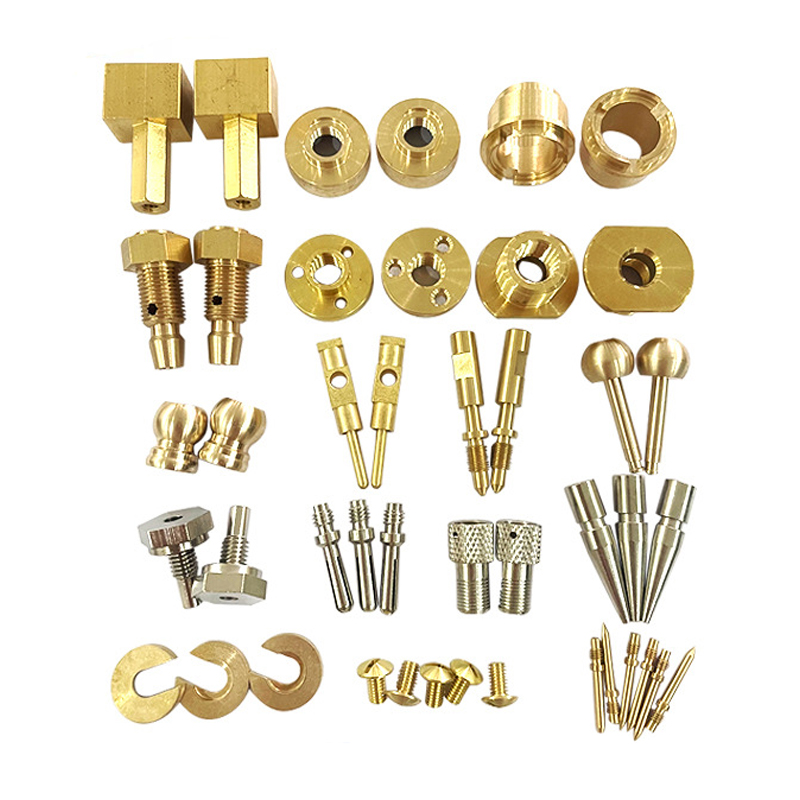

CNC turning is typically used to create parts such as shafts, gears, bushings, and rods, which are common in industries like automotive, aerospace, medical, and electronics. The precision of CNC turning allows for the production of parts with tight tolerances, ensuring they meet the strict requirements of these industries.
The process begins with the selection of raw material. The material is usually provided in the form of bars or rods and is chosen based on the part's design specifications and the material's suitability for the intended application. For example, metals like aluminum and stainless steel are common choices due to their excellent machinability and durability.
Once the material is selected, the CNC turning machine operator loads the workpiece into the chuck or collet. The workpiece is securely clamped, ensuring that it remains stable throughout the cutting process. In some cases, the workpiece may be mounted on a fixture to hold it in place, especially for parts with more complex geometries.
Before starting the operation, the CNC machine is programmed with the necessary cutting parameters. These include the cutting speed, feed rate, and depth of cut, as well as the tool path. The operator inputs these parameters into the CNC system through a computer or controller. The machine’s program is created using CAD/CAM software, which translates the design into machine-readable instructions.
Once the machine is set up, the CNC turning process begins. The workpiece is rotated at high speeds while the cutting tool moves along predefined paths to remove material. The tool can perform various cutting operations, such as facing, turning, drilling, threading, and parting, depending on the desired geometry. CNC turning machines can operate on multiple axes, providing high flexibility and precision in cutting complex shapes.
After the machining process is completed, the workpiece may undergo secondary operations, such as polishing, deburring, or surface treatments. The part is then carefully inspected to ensure it meets the specified tolerances and surface finish. Inspection tools like coordinate measuring machines (CMM) and optical microscopes are commonly used to verify the dimensions of the finished part.
Both CNC turning and CNC milling are popular machining methods, but they differ in terms of the operation and the type of parts they produce. Here's a comparison:
| Feature | CNC Turning | CNC Milling |
|---|---|---|
| Tool Movement | Tool moves linearly; workpiece rotates | Workpiece remains stationary; tool moves along multiple axes |
| Part Shape | Primarily cylindrical and conical shapes | Can produce complex, irregular shapes |
| Applications | Shafts, rings, bushings, rods | Flat surfaces, cavities, 3D shapes |
| Speed | Generally faster for cylindrical parts | More versatile, but slower for complex parts |
| Surface Finish | Smooth finishes for cylindrical parts | Can achieve fine finishes on irregular shapes |
While CNC turning is ideal for creating round or cylindrical parts, CNC milling is better suited for parts with more intricate geometries or non-circular shapes. The choice between the two depends on the part's design and the specific requirements of the application.
CNC turning offers high precision and can produce parts with tight tolerances, often within ±0.01 mm. The CNC system controls the movement of the tool and workpiece with extreme accuracy, ensuring consistent results across production runs.
Since the workpiece is constantly rotating, CNC turning can be faster than other machining methods, especially for parts with simple geometries. The machine can also perform multiple operations in one setup, reducing the time required for tool changes and reloading of the workpiece.
The subtractive nature of CNC turning means that material is only removed where necessary, resulting in minimal waste. This is particularly beneficial when working with expensive materials such as titanium or exotic alloys.
With CNC turning, the entire process is automated, reducing the need for manual labor and human error. Once programmed, the CNC machine can run continuously, making it ideal for large-scale production. Additionally, automation allows for consistent quality across all parts, ensuring that each piece meets the same high standards.
CNC turning can be used with a wide range of materials, from soft metals like aluminum to hard materials like stainless steel and titanium. This makes it suitable for industries with diverse material requirements, including aerospace, automotive, medical, and electronics.
While CNC turning is primarily used for cylindrical parts, advanced CNC turning machines can handle more complex geometries, including grooves, threads, and off-center machining. Multi-axis CNC turning machines can also perform operations that would typically require multiple setups.
CNC turning is widely used across various industries due to its versatility and precision. Some of the key applications include:
In the automotive industry, CNC turning is used to produce components such as gears, shafts, pistons, and brake parts. The high precision of CNC turning ensures that these critical components meet strict performance and safety standards.
The aerospace sector relies on CNC turning for the production of parts like turbine blades, engine components, and structural elements. The lightweight yet durable materials used in aerospace manufacturing require precision machining, which CNC turning delivers.
The medical industry uses CNC turningto create parts such as surgical instruments, implants, and medical device housings. The ability to work with biocompatible materials and maintain tight tolerances is essential for ensuring the safety and effectiveness of medical devices.
In electronics, CNC turning is used to manufacture components such as connectors, housings, and heat sinks. The ability to work with metals like aluminum and copper makes CNC turning ideal for producing parts that require both precision and conductivity.
CNC turning is widely used in the production of industrial machinery components, such as valves, bearings, and housing units. The precision of CNC turning ensures that these parts perform reliably in demanding industrial environments.
CNC turning is a machining process that involves rotating a workpiece while a cutting tool removes material to create cylindrical shapes. It is performed using a CNC machine, which provides high precision and automation.
Some key advantages of CNC turning include high precision, fast production speeds, reduced material waste, and the ability to machine a wide variety of materials.
The main difference between CNC turning and CNC milling lies in the movement of the tool and workpiece. CNC turning rotates the workpiece, while CNC milling moves the tool along multiple axes. CNC turning is best for cylindrical parts, while CNC milling is ideal for complex, irregular shapes.
Yes, advanced CNC turning machines can handle complex geometries, including off-center machining, grooves, and threads, making it suitable for intricate parts.
CNC turning can be used with a wide range of materials, including metals like aluminum, stainless steel, brass, copper, and titanium, as well as plastics and composites.
Yes, CNC turning is highly suitable for mass production due to its automation capabilities, allowing for continuous, high-precision production with minimal manual intervention.
In conclusion, CNC turning is an essential process in the world of precision manufacturing. It offers numerous advantages, including high precision, speed, and material versatility, making it a go-to choice for industries such as automotive, aerospace, medical, and electronics. Understanding the CNC turning process, its operations, and its benefits can help businesses make informed decisions about how to incorporate this technology into their production lines. Whether you are producing prototypes or large-scale batches, CNC turning provides a reliable and efficient solution for creating high-quality parts with tight tolerances.
