Ever wonder why your stamped parts cost more than expected? Many teams overlook the true price of dies and tryouts. For small-to-mid runs, that mistake adds up fast.
In this post, you’ll learn what drives stamping die cost, how to plan tooling and tryouts smartly, and how early ROI thinking can protect your budget.
Tooling is the die that actually shapes your metal parts. It's the custom-built equipment that gets installed in a press. Once it's in place, it cuts, forms, or punches your design from sheet metal at high speed. That speed is why stamping is so cost-efficient long-term. But up front, tooling takes a big bite out of your budget.
There are different types of dies, and each affects cost. Progressive dies do multiple steps in one press stroke, great for high volumes. Compound dies can also handle multiple features but in one strike. Transfer dies move parts between stations and give more room for deep forms. Single-station dies? They just do one thing at a time. The more steps a die includes, the more complex it gets—and that means a higher price tag.
Expect a simple die to run between $3,000 and $30,000. For complex or multi-stage tooling, the range jumps to $20,000–$200,000 or more. What makes it more expensive? The material you're using and how thick it is. Thicker, tougher materials need stronger dies. That’s why the grade of tool steel, like D2 or A2, really matters. Higher-grade steels last longer but cost more up front.
Your part design has a huge impact on tooling cost. Every extra bend, sharp corner, or deep draw adds stress to the die. It means more time to build it, more wear per hit, and more downtime for maintenance. The more complex your part, the more expensive the tooling gets.
That’s why simplifying your part before you ask for quotes saves money. Use DFM (Design for Manufacturability) guidelines. Keep hole edges at least 1.5 times the thickness from any part edge. Set your bend radius to at least the thickness of the material. Align holes to a shared datum so punches can be standardized. Skip fancy micro features that require EDM cutting unless they’re absolutely essential.
Standardizing helps a lot. If your hole sizes match off-the-shelf punches, you avoid custom tooling. And when your sheet thickness matches coil stock mills already use, material costs drop too. These decisions may seem small, but they really add up once production starts.
Before production starts, the die has to be tested. This process is called a tryout. It's the phase where teams check if the tooling works as planned. They look for problems like part distortion, springback, or slug pull. It’s where they fine-tune things like lubrication, strip alignment, and pierce location. Without it, you risk costly fixes later on.
So, who pays for this? It depends. Some suppliers include tryout in the tooling quote. Others charge extra based on time or press hours. For small-to-mid runs, these costs matter because each trial hit adds to the bottom line. And if specs keep changing, the tryout might stretch over multiple rounds.
Tryouts also help uncover hidden issues early. Springback from high-strength steel, burrs on edges, or misfeeds from poor pilot design. If you’re not catching these in the first try, expect longer delays and more tool adjustments. That’s why planning for tryout isn’t optional. It’s part of the real cost of stamping dies.
Some shops build tools and send them off for testing elsewhere. Others do it all in one place. When your supplier has an in-house toolroom, things move way faster. You can try a tool today, make changes tonight, and run it again tomorrow. There’s no email trail, no shipping delay, no waiting on a test press three cities away.
These in-house setups usually have CNC, EDM, grinders, and a press line right next door. Engineers walk between stations. They spot sharp corners that slow polishing or tweak a form insert without redrawing the entire die. Small fixes get handled in minutes, not days. The debug loop stays short and tight.
If problems pop up—misfeed alarms, burrs, galling—you’re already at the press. You can test solutions on the spot instead of guessing through screenshots or videos. That saves time, labor, and even material. For small or mid-volume projects, this hands-on speed is a real cost advantage. And when deadlines are tight, it might be the difference between hitting your launch or missing it.
If your run isn’t in the millions, paying full tooling cost up front can hurt. That’s where amortization comes in. Instead of swallowing the full die cost before production, you break it up. Most teams use 3 to 5 volume gates spread over the year. Each gate has a firm release quantity and date. As each one hits, a portion of the tooling cost is recovered.
Picture this. A 250,000-part program, split into four quarterly releases. Each gate chips away at the die cost. Suppliers hold capacity for each round, so there’s no panic on delivery. You don’t pay for the entire tool on day one, and your per-piece price stays stable.
There are three main models buyers use:
| Amortization Model | Typical Use Case | Unit Impact | Risk Level |
|---|---|---|---|
| Full waiver at MOQ | Mature demand (100k+) | Tooling cost is waived if MOQ is met | Medium |
| Step amortization | New programs | Cost spread across gates | Low |
| Per-piece adder | Pilots or test runs | Adds $0.01–$0.05 per part | Low |
Each model depends on confidence in your volume and forecast accuracy. For small-to-mid runs, step amortization usually gives the best balance.
Amortization works only when both sides stay clear. That means locking in numbers. Set firm quantities and delivery dates per gate. Don’t leave specs open or say "we’ll confirm later." That kills your price lock and delays production.
Line up material and packaging too. If you wait to book coil stock until the week before shipping, you might lose your pricing window. Keep it aligned with each release. Some teams even match packaging rules to gate weeks so everything stays on track.
Pricing needs to be simple. A slider chart that shows how unit cost changes by quantity helps everyone see the plan. And when the supplier hits each volume gate, they can invoice the tooling portion cleanly. Avoid fuzzy schedules or sliding windows. It’s better to plan tightly, then adjust, than to build around a maybe.
Make sure every agreement includes a playbook—dates, specs, and packaging instructions all tied to the same gates. That’s how you keep your tooling cost predictable and avoid surprises later.
Before investing in tooling, you need to know if it actually pays off. There's a simple way to start:
(CNC cost – stamping cost) × volume – tooling cost. That gives a rough idea of what you save per year.
Say your CNC part costs $12 each, but stamping brings that down to $4. If you make 25,000 parts, that’s $200,000 in savings. Subtract $40,000 for tooling, and you still come out way ahead. But if you only make 2,000 parts, it may not pencil out. Volume is everything.

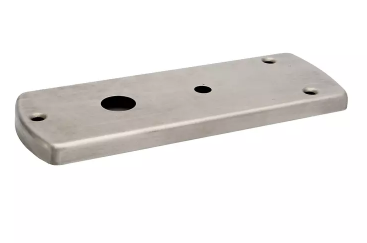

Stamping really starts to win once you pass 10,000 parts per year. The more consistent the geometry, the better. Flat blanks with holes? Stamping works great. Complex 3D shapes? Still doable, but you’ll need more tooling and might hit longer payback times.
When teams plan right, the math usually works. You get lower unit costs and better consistency. The key is knowing where that tipping point sits based on your part and your process.

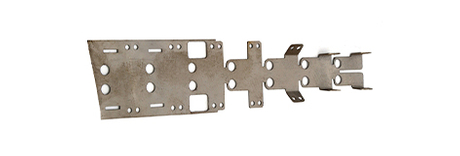

Progressive dies punch out parts at top speed. Multi-stage setups move slower, need more labor, and take longer to dial in. That means more time per part—and more chances for something to go wrong.

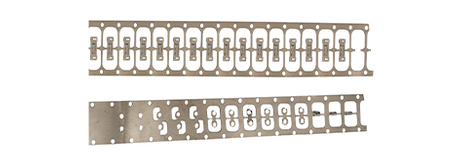

Scrap is another hidden cost. Poor nesting or unstable strip layout can waste a lot of material. With a well-designed progressive tool, scrap drops fast. That helps especially when you're working with pricey alloys or thick stock.
Setup time also matters. Progressive dies have one setup. Multi-station lines need multiple changeovers, which adds downtime. Less setup, more uptime. You keep presses running instead of tweaking dies.
Repeatability is what keeps quality tight across shifts. A single strip path in a progressive die reduces variation between operators. That stability directly lowers inspection time and rework cost.
One buyer needed 600,000 parts annually. The team proposed a progressive die with three modular inserts. By building it that way, they cut the cycle time by 32 percent. Scrap dropped by 18 percent due to better strip layout. The part quality stayed in spec without extra inspections.
That meant faster runs, less wasted steel, and fewer tool breakdowns. Even though the die had a higher initial cost, the payback was fast. Unit cost fell sharply and stayed consistent through the year. For programs with repeat orders or steady demand, that kind of ROI can lock in serious long-term savings.
Material decisions seem simple at first, but they can wreck your budget later. When you lock in grade and thickness early, you give mills time to plan. That means better coil pricing, stable delivery, and fewer last-minute rush fees. If you're still adjusting material specs after the die is designed, you're burning time and money.
Thickness drives strip yield. A slight change in gauge can shift your pitch layout, increasing scrap or forcing a die redesign. Always run yield simulations before locking your blank. That way, you can spot where moving one hole or shifting a bend improves nesting.
Exotic coatings sound great until you see the MOQ. Many coatings also require special handling or increase die wear. Unless corrosion is a real issue, skip them unless validated by testing. And over-thick specs often add cost without adding value. They slow forming, raise press loads, and hurt cycle times. Use the lightest spec that meets strength and safety needs.
A die that runs hard without maintenance won’t last long. That’s why smart shops tie preventive maintenance to hit counts, not calendar dates. Every press stroke is tracked. Crews know when it’s time to polish edges or check vents. This approach avoids surprises and keeps production flowing.
Modular inserts are another key. Instead of pulling the whole die for a small worn-out form, you just swap the insert. Changeover time drops from hours to minutes. If you're running different part variants, inserts let you adapt fast without rebuilding the whole tool.
Sensors help too. Feed sensors, misfeed detectors, and part-out checks stop the press before damage spreads. Add in a counter that tracks hits, and you’ve got a system that predicts wear. This isn't just about uptime—it also protects the tool and reduces rework.
Die life isn't just about material or polish. It's about planning. When you combine smart design, clean maintenance logs, and a few smart sensors, you extend tool life and keep your cost per part consistent.
Stamping die cost isn’t just a number—it shapes your entire production strategy. For small-to-mid volume runs, knowing where your money goes helps avoid hidden costs and delays. Smart planning around tooling, tryouts, and ROI ensures smoother launches and better margins. At our company, we provide in-house tooling and transparent pricing. Visit our website to see our metal stamping solutions to explore how we can support your next stamping project with confidence.
Simple dies can cost $3,000–$30,000. Complex progressive or transfer dies can go up to $200,000 or more.
Usually not. The upfront tooling cost is too high unless you plan to produce 10,000+ parts per year.
Simplify part design, use standard material sizes, and work with suppliers that offer amortization options.
It speeds up fixes and feedback. You can make changes and re-run tests without shipping tools back and forth.
Use: (CNC cost – stamping cost) × volume – tooling cost. ROI grows as volume increases.
