Progressive Vs Transfer Vs Compound Die

Metal stamping dies shape modern products with precision and speed. They control costs, accuracy, and production quality. Choosing between progressive, transfer, and compound dies can be challenging. Each has unique strengths and trade-offs.

In this post, you’ll learn their differences, advantages, and best applications for manufacturing success.

What Is a Metal Stamping Die?

A metal stamping die is a special tool used in manufacturing. It helps shape, cut, or form metal sheets into parts. The process works by pressing the sheet between matched tool parts. This tool is often custom-made for specific products, from car parts to electronics.

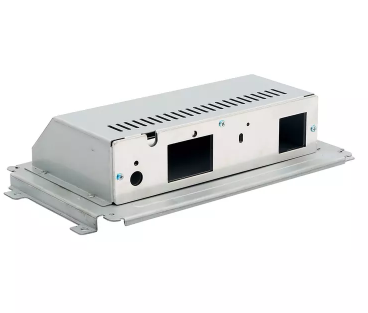

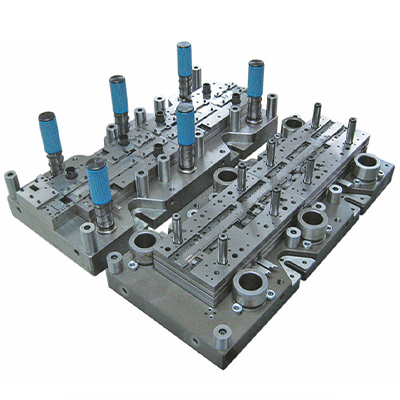

Most dies include a punch and a die block. The punch pushes the metal into the die block’s cavity. You’ll also find parts like strippers, which remove material from the punch, and pilots, which guide metal into place. Together, they form clean, repeatable parts fast.

Stamping dies work on many materials. These include steel, aluminum, copper, stainless steel, brass, and even tough alloys like Inconel. Some even handle noble metals for high-end electronics. Each material needs the right die setup for accuracy and durability.

Besides the three major types—progressive, transfer, and compound—there are others too. Simple dies handle basic cuts. Combination dies do cutting and forming in one step. Multiple or gang dies make several parts at once. All these types support different needs in cost, complexity, and speed.

Progressive Dies

What Is a Progressive Die?

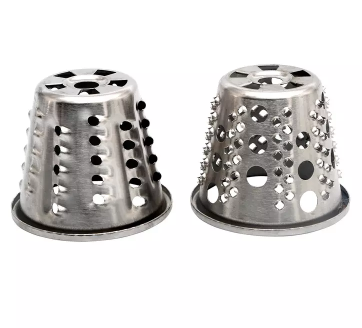

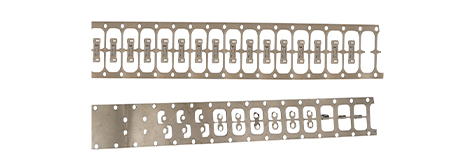

A progressive die forms parts in stages as the metal strip moves through a series of stations. It starts when the coil feeds into the press. At each stop, a different tool cuts, bends, or punches the metal. After several cycles, the finished part separates from the strip. Every press stroke makes one new part, so it keeps moving fast.

The metal strip stays connected as it moves from station to station. That’s how alignment stays tight. This design works well for small to medium-sized parts that don’t need deep forming. Progressive dies are set up for speed and precision across long runs.

Advantages of Progressive Dies

Progressive dies are known for fast output. They produce one part per stroke once running at full speed. That makes them perfect for high-volume jobs. Since every cycle forms a complete part, they’re also easy to automate. Less labor is needed, and fewer errors happen along the way.

They also make financial sense over time. Even though the tooling costs more upfront, it pays off if you’re making thousands or millions of parts. That’s why they’re popular in industries where speed and scale really matter.

Disadvantages of Progressive Dies

These dies aren’t cheap to start. Tooling design and build take time and money. That can be a problem for short production runs or if the part design changes often. Maintenance can also be tricky. The more stations you have, the more things can go wrong.

Progressive dies don’t handle every shape well. Deep-drawn parts or large components may require other methods. For example, parts with complex curves or deep cavities often can’t be made this way.

Typical Applications of Progressive Dies

Many auto parts are made using progressive dies. Think of metal clips, brackets, and small frame components. You’ll also see them in appliance hardware and light fixtures. Anything that’s flat or has simple bends, made in huge quantities, fits this method.

Long-run consumer products—like battery tabs, connector plates, or hinges—also rely on this process. It’s used when speed, consistency, and repeatable quality all matter more than flexibility.

Transfer Dies

What Is a Transfer Die?

A transfer die setup works differently from progressive dies. Instead of feeding a metal strip through connected stations, each part is separated early. It gets moved between stations by a transfer mechanism. That mechanism can be mechanical arms or robotic systems. Each station does a different job like forming, trimming, or piercing.

Since the part is free from the strip, it can be reoriented or repositioned between operations. That gives more control over complex shaping. It also lets the die handle deeper draws or forms that can’t be done in one pass while attached to a strip.

Advantages of Transfer Dies

Transfer dies are made for large and complex parts. They’re especially useful when the part needs deep forming or multiple operations in different orientations. Unlike progressive dies, the tooling isn't limited by strip movement or connection.

The flexibility is a big win. It’s easier to design custom shaping or combine bending, drawing, and punching in one cycle. You can also adjust stations without rebuilding the entire system. That helps when part designs change or new variations are needed.

Disadvantages of Transfer Dies

That flexibility comes at a cost. Setup is more complex and takes longer. You’ll need proper alignment of all stations and smooth transfer movement. If something goes wrong in one station, the whole process may stop.

Compared to progressive dies, transfer dies are slower for high-volume runs. The extra movement between stations adds time. Also, robotic or mechanical transfers mean higher costs in equipment and maintenance. It’s a tradeoff between flexibility and speed.

Typical Applications of Transfer Dies

Transfer dies show up in industries like automotive, aerospace, and electronics. They help shape big parts such as body panels, frames, or housings. Anything deep-drawn or built in layers is a good fit.

In electronics, transfer dies form cases with curves, tabs, or holes in tight spaces. They also work well for heavy machinery parts where thickness or size matters. If the part can’t be formed while staying attached to a strip, transfer dies are usually the answer.

Compound Dies

What Is a Compound Die?

A compound die performs multiple actions in one press stroke. That means it can punch and blank a part at the same time. All operations happen while the metal is held in a fixed position. This setup works best for flat parts that don’t need forming or drawing.

It’s built for simplicity and speed. Instead of moving the metal between stations, everything happens in one shot. That helps when you want a clean shape with tight tolerances, especially for smaller, flat components.

Advantages of Compound Dies

Compound dies offer great accuracy. Since the workpiece doesn’t move between steps, alignment stays perfect. That boosts repeatability and lowers part variation. If you care about tight tolerances, this die is a solid choice.

They’re also cost-friendly. Tooling is simpler than progressive or transfer systems. You don’t need feed strips or robotic arms. That cuts both build and maintenance costs. And because one stroke finishes the part, production is quicker than running separate tools.

Disadvantages of Compound Dies

They aren’t designed for complex parts. If your part needs depth, forming, or multiple angles, a compound die won’t work. It’s limited to shapes that stay flat. For anything deep or large, other dies make more sense.

They also don’t scale as well for massive runs. In high-volume settings, the speed may fall behind progressive systems. And if the metal is thick, you’ll need more tonnage from the press. That can raise your equipment cost and limit press options.

Typical Applications of Compound Dies

You’ll find compound dies in places that need flat, high-precision parts. Aerospace and electronics industries use them for shims, contact plates, and small brackets. They’re also popular for washers, gaskets, and tags.

Anytime you need perfect circles, sharp corners, or symmetrical cuts in thin stock, this method fits. It’s also useful when you’re making medium batches where quality matters more than automation or forming depth.

Progressive vs Transfer vs Compound Die: Key Differences

Speed and Efficiency

If speed is the goal, progressive dies take the lead. They form a new part with every press stroke. Once setup is done, the machine runs fast and steady. That’s why they’re great for high-output production lines. The part stays attached to the strip until the final cut, which keeps everything moving without delay.

Transfer dies, on the other hand, are slower. Each part must be transferred from station to station. That movement adds time. Still, they allow shaping that progressive dies can’t do. If the part is large, curved, or deep-drawn, this method may be the only option. Speed is traded for flexibility.

Compound dies land somewhere in the middle. They’re quick for small, flat parts since everything is done in one stroke. But they don’t handle complex geometries. If you need simple shapes fast, this method works well. Just don’t expect the output to match the automation of progressive systems.

Tooling and Cost

Tooling for progressive dies costs more upfront. The design is complex and each station must align perfectly. But over time, the cost per part drops. Once running, it’s efficient for huge orders. That makes the high investment worth it for mass production.

Transfer dies need even more investment. Not just for the die, but also the automation system that moves each part. Robots, sensors, and alignment tools all add to the bill. Running the system also takes more energy and skilled operators. So it’s best suited for complex parts where other methods won’t work.

Compound dies are the most affordable to tool. Since all steps happen in one station, there’s less material and less time spent building it. That means lower setup costs. If the volume is medium to high and the part is flat, it’s often the most cost-effective solution.

Complexity and Capabilities

Progressive dies shine in doing many steps at once. They pierce, bend, notch, and form shapes in a line. But they don’t handle deep forming or reorientation. If your part is flat and simple, they work perfectly. If you need something drawn or shaped in 3D, they won’t do the job.

Transfer dies offer more freedom. The part can move independently through the press. That means it can be flipped, shifted, or reshaped in ways that progressive tools can’t manage. They’re used when a part has curves, holes, folds, or changes in depth across its shape.

Compound dies are all about precision. They can punch, cut, and blank all at once. That’s helpful when tolerances are tight and you want perfect repeatability. But their abilities stop at flat parts. They’re not built for forming or folding.

Production Volume Suitability

If you're making millions of parts, go with progressive dies. They’re built for long runs and low cost per unit. Once running, they rarely stop unless for maintenance or part changeover. That’s what makes them popular in automotive and appliance manufacturing.

Transfer dies suit mid to high volumes when part geometry is complex. They may not match progressive dies in speed, but they make up for it in what they can do. When the design calls for multiple 3D operations, transfer is the only practical option.

Compound dies are great when you need flat parts in decent quantities. They're not ideal for massive runs, but not for small batches either. If you need thousands to hundreds of thousands of simple, high-precision parts, this die offers a good balance. It's often used in aerospace and electronics for that reason.

Choosing Between Progressive, Transfer, and Compound Dies

Key Factors: Part Design, Complexity, Material Type, Batch Size, Budget

The right die depends on the part itself. If the shape is flat or simple, compound dies are often enough. But if you’re working on a deep-drawn part or something with complex geometry, transfer dies give you more freedom. For parts that involve multiple cuts and bends in sequence, progressive dies can finish them quickly.

Material also plays a role. Thin metals like aluminum or brass may work well with any die type. But thicker steel or high-strength alloys may require stronger presses, especially for compound operations. Batch size matters too. For high volumes, progressive dies are usually the most cost-effective. But if the part volume is small or changes often, tooling costs may not be worth it.

Budget always shapes the decision. Progressive dies require more upfront investment. Transfer dies demand automation systems. Compound dies cost less but offer fewer capabilities. You’ll want to match the tooling to both the project needs and the available resources.

Long-Term vs Short-Term Cost Considerations

Progressive dies win over time. They’re built for repeat jobs where every part is the same. Once the die is made and running, the cost per part drops fast. That’s great for automotive or appliance makers churning out parts by the million.

Transfer dies, while flexible, bring higher ongoing costs. They require more setup time, more space, and more maintenance. Still, they might be the best option if you need flexibility now and can reuse the tooling across similar parts later.

Compound dies sit in the middle. You don’t spend much to get started. But if the order grows or the part design changes, you may outgrow what they can handle. These dies are usually chosen for jobs that won’t change and don’t need much shaping.

Quality and Precision Requirements

If you’re chasing perfect repeatability, compound dies are hard to beat. Since every feature is made in one hit, alignment is tight. For connectors, shims, or electronic tabs, that matters a lot. Progressive dies also hold good tolerances, but some variation can occur over time if not maintained well.

Transfer dies give you more options to adjust geometry or orientation, but that flexibility adds room for error. Operators need to monitor alignment, part handling, and transfer timing closely. The more stations you add, the more you risk slight inconsistencies.

Precision starts in the design phase. You’ll want to know your tolerances before choosing your tooling. If they’re loose, all three dies may work. If they’re tight, compound or progressive may be your best bet.

Examples of Industry-Specific Decision-Making

In the automotive industry, progressive dies are everywhere. They produce brackets, mounts, clips, and more at high speeds. For body panels or complex structural parts, transfer dies are common because of the large sizes and multiple forming needs.

Aerospace often chooses compound dies for flat components needing tight tolerances. Materials like titanium or high-grade steel are expensive, so minimizing waste is key. Compound dies do that well when parts don’t need depth.

Electronics manufacturers prefer compound and progressive dies depending on part size. For intricate, flat parts like battery tabs or signal contacts, compound works. But when multiple features are needed in sequence, progressive setups become more practical.

Consumer goods vary. Kitchen tools or hardware often come from progressive dies due to volume. But if a product has a decorative or functional shell with curves or depth, transfer dies might be used. It all depends on the product’s design, life cycle, and price point.

Conclusion

Progressive dies offer unmatched speed for high-volume runs. Transfer dies handle complex, deep-formed parts with flexibility. Compound dies shine in flat, precision work. Choosing the right one depends on your part’s shape, volume, and budget. If you need further assistance, welcome to see our company's metal stamping solutions.

FAQs

What is the main difference between progressive and transfer dies?

Progressive dies form parts in sequence using a strip. Transfer dies move individual parts between stations.

When should I use a compound die?

Use compound dies for flat, simple parts that need high precision in one press stroke.

Is a progressive die good for deep-drawn parts?

No. Progressive dies are not ideal for deep forming. Transfer dies are better for that task.

Which die type is most cost-efficient for large batches?

Progressive dies. They have high setup costs but offer low per-part costs in long runs.

Can one product use more than one type of die?

Yes. Complex products may use progressive for small parts and transfer or compound for others.
