Metal Injection Molding (MIM) Vs Plastic Injection Molding

Injection Molding is a cornerstone of modern manufacturing, enabling the production of precise, high-volume components for industries ranging from automotive to medical. Within this broad category, Plastic Injection Molding and Metal Injection Molding (MIM) stand out as two distinct processes, each tailored to specific material and application needs. While Plastic Injection Molding is renowned for creating lightweight, versatile Plastic Injection Molding Parts, MIM excels at producing small, complex metal components with high strength. This article delves into the differences between MIM and Plastic Injection Molding, exploring their processes, applications, advantages, and limitations, with a focus on aligning with user search intent for Injection Molding and Plastic Injection Mold. By incorporating data-driven comparisons and the latest trends, we aim to provide a comprehensive guide for manufacturers and engineers.

With the global Injection Molding market valued at over $280 billion in 2025 and projected to grow at a CAGR of 5.5% through 2032, understanding the nuances of these processes is critical. Whether producing Plastic Injection Molding Parts for consumer goods or intricate metal parts for aerospace, choosing the right Injection Molding method can significantly impact cost, quality, and performance.

Overview of Injection Molding

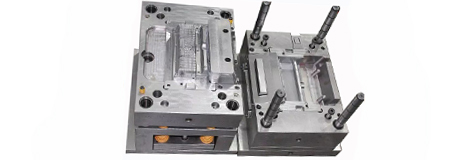

Injection Molding is a manufacturing process where molten material is injected into a Plastic Injection Mold or metal mold under high pressure, cooled, and solidified to form a finished part. The versatility of Injection Molding makes it ideal for producing complex geometries with tight tolerances, serving industries such as automotive, electronics, medical, and consumer goods. Plastic Injection Molding typically uses thermoplastic or thermoset polymers, while MIM employs metal powders mixed with a binder to create metal components.

Both processes share a similar workflow: material preparation, injection into a mold, cooling, and ejection. However, the materials, equipment, and post-processing requirements differ significantly, affecting their suitability for specific applications. Below, we explore the mechanics of MIM and Plastic Injection Molding, followed by a detailed comparison to guide decision-making.

What is Plastic Injection Molding?

Plastic Injection Molding is the most widely used Injection Molding process, accounting for approximately 70% of the global Injection Molding market in 2025. It involves melting polymer granules (e.g., ABS, polyethylene, or nylon) in a heated barrel, injecting the molten plastic into a Plastic Injection Mold, and cooling it to form Plastic Injection Molding Parts. The molds, typically made from steel or aluminum, are precision-engineered to produce parts with intricate details and consistent quality.

Process Steps in Plastic Injection Molding

1. Material Preparation: Polymer pellets are dried to remove moisture and fed into the injection molding machine’s hopper.

2. Melting: A screw within the barrel heats and compresses the pellets, transforming them into molten plastic at temperatures of 300–800°F.

3. Injection: The molten plastic is injected into the Plastic Injection Mold at pressures of 10–30 MPa, filling the mold cavity.

4. Cooling: The mold, cooled by water channels, solidifies the plastic in 10–60 seconds, depending on part thickness.

5. Ejection: The mold opens, and ejector pins release the finished Plastic Injection Molding Parts.

Applications of Plastic Injection Molding

Plastic Injection Molding is used to produce Plastic Injection Molding Parts for:

• Automotive: Dashboards, bumpers, and interior components.

• Electronics: Housings for smartphones and connectors.

• Medical: Syringes, surgical tools, and device enclosures.

• Consumer Goods: Toys, kitchenware, and packaging.

Data Insight: A 2025 industry report indicates that Plastic Injection Molding accounts for 85% of plastic part production globally, driven by its cost-effectiveness and versatility.

What is Metal Injection Molding (MIM)?

Metal Injection Molding (MIM), developed in the 1970s, combines the principles of Plastic Injection Molding with powdered metallurgy to produce small, complex metal parts. MIM uses a feedstock of fine metal powder (e.g., stainless steel, titanium) mixed with a thermoplastic binder, which is injected into a mold, debound, and sintered to achieve high strength and density.

Process Steps in Metal Injection Molding

1. Feedstock Preparation: Metal powder (60–70% by volume) is mixed with a binder (e.g., wax or polypropylene) to create a flowable feedstock.

2. Injection: The feedstock is heated (300–400°F) and injected into a mold, similar to a Plastic Injection Mold, forming a “green part.”

3. Debinding: The binder is removed via solvents, catalysts, or thermal processes, leaving a porous “brown part.”

4. Sintering: The brown part is heated in a furnace (up to 2,500°F) to fuse metal particles, resulting in a dense, strong part that shrinks by 15–30%.

Applications of Metal Injection Molding

MIM is ideal for producing small, intricate metal parts for:

• Aerospace: Engine components and seatbelt mechanisms.

• Medical: Surgical instruments and dental implants.

• Electronics: Smartphone frames and camera brackets.

• Automotive: Gears and fuel injector nozzles.

Data Insight: MIM parts typically weigh 15–20 grams, with a market share of $3.8 billion in 2025, growing at a CAGR of 11.2% due to demand for precision components.

Key Differences Between MIM and Plastic Injection Molding

While both MIM and Plastic Injection Molding rely on Injection Molding principles, their differences in materials, processes, and applications are significant. Below, we compare them across critical attributes to highlight their strengths and limitations.

Comparison Table: MIM vs Plastic Injection Molding

Data Insight: A 2025 study found that MIM’s multi-step process increases production time by 20–30% compared to Plastic Injection Molding, but its ability to handle high-melt-temperature metals makes it indispensable for specific applications.

Detailed Comparison

1. Materials:

• MIM: Uses metal powders, including stainless steel, titanium, and superalloys, enabling high-strength, corrosion-resistant parts for demanding applications like medical implants.

• Plastic Injection Molding: Employs polymers like ABS and nylon, which are lightweight and cost-effective but less durable than metals. Fillers (e.g., glass fibers) can enhance strength for Plastic Injection Molding Parts.

2. Part Complexity and Size:

• MIM: Excels at producing small, intricate parts with thin walls (as low as 0.1 mm), ideal for complex geometries in electronics and aerospace.

• Plastic Injection Molding: Suitable for a broader range of sizes, from small connectors to large automotive panels, but struggles with ultra-thin walls below 0.5 mm.

3. Tolerances and Precision:

• MIM: Offers tighter tolerances (±0.002”), critical for precision components in medical and aerospace industries.

• Plastic Injection Molding: Provides moderate tolerances (±0.005”), sufficient for most Plastic Injection Molding Parts but less precise than MIM.

4. Process Complexity:

• MIM: Requires multiple steps (injection, debinding, sintering), increasing complexity and cost but enabling unique material properties.

• Plastic Injection Molding: A simpler, single-step process reduces production time and cost, making it ideal for high-volume Plastic Injection Molding Parts.

5. Cost Considerations:

• MIM: Higher tooling and material costs, with molds costing 20–50% more than those for Plastic Injection Molding due to the abrasive nature of metal powders.

• Plastic Injection Molding: Lower material and labor costs, with plastic resins being 5–10 times cheaper than metal powders.

List: Factors Influencing Process Choice

1. Material requirements (metal vs. plastic).

2. Part size and complexity.

3. Production volume and budget.

4. Tolerance and strength specifications.

5. Industry-specific standards (e.g., biocompatibility for medical).

Advantages and Disadvantages

Metal Injection Molding (MIM)

Advantages:

• Produces high-strength, durable metal parts for demanding applications.

• Enables complex geometries and thin walls (0.1–3 mm).

• Supports a wide range of materials, including high-melt-temperature alloys.

• High precision with tolerances as tight as ±0.002”.

Disadvantages:

• High tooling costs ($10,000–$50,000) and mold wear due to abrasive metal powders.

• Multi-step process increases production time and cost.

• Significant shrinkage (15–30%) requires precise mold design.

• Limited to small parts (<50 g), restricting applications.

Plastic Injection Molding

Advantages:

• Cost-effective for high-volume production of Plastic Injection Molding Parts.

• Wide material versatility, with polymers tailored for flexibility, strength, or insulation.

• Simpler process reduces lead times (2–4 weeks for mold production).

• Suitable for large parts, up to 10 kg, for automotive and consumer applications.

Disadvantages:

• Lower strength compared to metal parts, limiting use in high-stress environments.

• Moderate tolerances (±0.005”) may not meet precision requirements for some industries.

• Environmental concerns due to plastic waste, though recycling is improving.

• Mold finishing often required for aesthetic Plastic Injection Molding Parts.

Data Insight: A 2025 environmental report noted that Plastic Injection Molding generates 15% less waste than MIM due to recyclable thermoplastics, aligning with sustainability trends.

Latest Trends in Injection Molding

The Injection Molding industry is evolving rapidly, driven by technological advancements and sustainability demands. These trends impact both MIM and Plastic Injection Molding, influencing defect prevention and process efficiency.

1. Smart Molding Systems:

• IoT-enabled Plastic Injection Molds and MIM molds monitor temperature, pressure, and cycle time in real-time, reducing defects like flash and short shots by up to 65% (2025 industry data).

• Example: Predictive maintenance in Plastic Injection Molding extends mold life by 20–30%.

2. Sustainable Materials:

• Plastic Injection Molding increasingly uses biodegradable polymers and recycled plastics, reducing environmental impact by 25% in consumer goods applications.

• MIM is exploring eco-friendly binders to minimize emissions during debinding and sintering.

3. Micro-Injection Molding:

• Both MIM and Plastic Injection Molding are adopting micro-molding for tiny components in medical and electronics, with MIM leading due to its precision for metal parts.

4. Automation and AI:

• AI-driven defect detection systems in Injection Molding identify issues like flow lines and weld lines with 95% accuracy, improving quality control for Plastic Injection Molding Parts.

List: Emerging Technologies in Injection Molding

1. Real-time process monitoring with IoT sensors.

2. AI-based defect detection and correction.

3. Advanced simulation software for mold optimization.

4. Sustainable material integration for eco-friendly production.

Applications Across Industries

Metal Injection Molding (MIM)

• Aerospace: Lightweight, high-strength parts like turbine blades, with MIM reducing weight by 15–20% compared to traditional machining.

• Medical: Biocompatible components like orthodontic brackets, where MIM’s precision ensures tolerances of ±0.002”.

• Electronics: Miniature connectors and frames, with MIM enabling 0.1 mm wall thickness for compact designs.

• Automotive: Small gears and nozzles, where MIM’s durability withstands high temperatures and wear.

Plastic Injection Molding

• Automotive: Large, lightweight Plastic Injection Molding Parts like bumpers, reducing vehicle weight by 10–15% compared to metal alternatives.

• Consumer Goods: Aesthetic products like kitchenware, where Plastic Injection Molding offers vibrant colors and textures.

• Medical: Disposable syringes and device housings, with Plastic Injection Molding ensuring cost-effective, high-volume production.

• Electronics: Insulating housings for circuit boards, leveraging Plastic Injection Molding’s versatility with filled polymers.

Comparison Table: Industry Applications

Choosing Between MIM and Plastic Injection Molding

Selecting between MIM and Plastic Injection Molding depends on project requirements, including material, part size, volume, and budget. Below are guidelines to aid decision-making:

• Choose MIM When:

• High-strength, durable metal parts are required.

• Parts are small (<50 g) with complex geometries or thin walls.

• Applications demand high precision (±0.002”) and corrosion resistance.

• Examples: Medical implants, aerospace components.

• Choose Plastic Injection Molding When:

• Lightweight, cost-effective Plastic Injection Molding Parts are needed.

• Parts range from small to large (up to 10 kg) with moderate tolerances.

• High-volume production is critical, and plastic’s versatility is advantageous.

• Examples: Automotive interiors, consumer packaging.

Data Insight: A 2025 survey found that 60% of manufacturers choose Plastic Injection Molding for cost-driven projects, while 35% opt for MIM for precision and strength requirements.

Addressing Common Defects in Injection Molding

Both MIM and Plastic Injection Molding face similar Injection Molding defects, such as flash, short shots, and sink marks, but their causes and prevention differ due to material properties.

• Flash:

• MIM: Caused by high injection pressure and worn molds; prevented by increasing clamping force by 10–15 tons.

• Plastic Injection Molding: Results from excessive pressure; mitigated by reducing injection pressure by 5–10%.

• Short Shots:

• MIM: Due to high feedstock viscosity; addressed by increasing injection volume by 5–10%.

• Plastic Injection Molding: Caused by inadequate material flow; prevented by widening gates by 0.5–1 mm.

• Sink Marks:

• MIM: Occur in thick sections; reduced by extending cooling time by 5–10 seconds.

• Plastic Injection Molding: Common in thicker Plastic Injection Molding Parts; mitigated by reducing wall thickness to 2–3 mm.

List: Defect Prevention Strategies

1. Optimize injection pressure and speed for material type.

2. Ensure uniform wall thickness in Plastic Injection Mold or MIM mold.

3. Regular mold maintenance to prevent wear and flash.

4. Use simulation software to predict and address defects.

Conclusion

Injection Molding remains a vital manufacturing process, with Plastic Injection Molding and Metal Injection Molding (MIM) serving distinct yet complementary roles. Plastic Injection Molding excels in producing cost-effective, versatile Plastic Injection Molding Parts for high-volume applications, while MIM delivers high-strength, precision metal components for specialized industries. By understanding their differences in materials, processes, and applications, manufacturers can make informed decisions to optimize quality and cost.

As Injection Molding evolves with smart systems, sustainable materials, and micro-molding, both MIM and Plastic Injection Molding will continue to drive innovation. Whether crafting Plastic Injection Molding Parts for consumer goods or intricate metal parts for aerospace, mastering these processes ensures success in the competitive world of Injection Molding.
