Common Defects in Injection Molding And How To Avoid Them

Injection Molding is a cornerstone of modern manufacturing, enabling the mass production of precise, high-quality components across industries such as automotive, medical, electronics, and household goods. By injecting molten material into a Plastic Injection Mold, manufacturers can create complex parts with tight tolerances. However, the complexity of Injection Molding introduces the potential for defects that can compromise the quality, functionality, or aesthetics of Plastic Injection Molding Parts. This article explores the most common Injection Molding defects, their causes, and proven strategies to prevent them, ensuring optimal outcomes for Automotive Injection Molding, Medical Injection Molding, Electronics Injection Molding, Household Injection Molding, and even related processes like Rubber Compression Molding.

With a focus on data-driven insights, this guide incorporates the latest trends in Injection Molding to address user search intent, offering actionable solutions for manufacturers. By understanding and mitigating defects, businesses can enhance production efficiency, reduce waste, and deliver superior Plastic Injection Molding Parts.

Understanding Injection Molding and Its Importance

Injection Molding is a manufacturing process where molten material—typically plastic or rubber—is injected into a Plastic Injection Mold under high pressure. Once cooled, the material solidifies into the desired shape, producing components for diverse applications, from Automotive Injection Molding parts like dashboards to Medical Injection Molding devices like syringes. The versatility of Injection Molding makes it indispensable, with the global Injection Molding market valued at approximately $260 billion in 2024, projected to grow at a CAGR of 5.2% through 2030, according to recent industry reports.

Despite its advantages, Injection Molding is prone to defects due to factors like material properties, mold design, and process parameters. These defects can lead to costly rework, delays, or product failures, particularly in precision-driven fields like Electronics Injection Molding and Medical Injection Molding. Below, we analyze 11 common Injection Molding defects, their causes, and prevention methods, supported by data and practical insights.

Common Injection Molding Defects and Prevention Strategies

Burn Marks

Burn marks appear as black or rust-colored discolorations on Plastic Injection Molding Parts, often at the surface or edges. While they rarely affect structural integrity, severe burn marks can degrade the material, impacting applications like Household Injection Molding products where aesthetics are critical.

Causes:

• Overheating of trapped air or resin due to high injection speeds.

• Excessive melt or mold temperatures.

• Inadequate venting, trapping air in the Plastic Injection Mold.

Prevention Methods:

• Reduce melt and mold temperatures by 5-10°C, depending on the material (e.g., ABS or polycarbonate).

• Lower injection speed by 10-20% to minimize air entrapment.

• Install or widen gas vents by 0.02-0.05 mm to allow air escape.

• Shorten cycle time by 2-5 seconds to prevent overheating.

Data Insight: A 2023 study found that optimizing venting reduced burn marks by 85% in Automotive Injection Molding applications, improving part acceptance rates.

Surface Delamination

Surface delamination occurs when thin layers of Plastic Injection Molding Parts peel away, weakening components. This defect is critical in Medical Injection Molding, where material integrity is non-negotiable.

Causes:

• Contamination of resin pellets with foreign materials.

• Excessive use of release agents in the Plastic Injection Mold.

• High moisture content in the material.

Prevention Methods:

• Store resin pellets in sealed, dry containers to prevent contamination.

• Minimize release agent use by optimizing mold design, such as increasing draft angles by 1-2°.

• Pre-dry materials (e.g., nylon) at 80°C for 4-6 hours to reduce moisture below 0.2%.

Comparison Table: Delamination Prevention Techniques

Vacuum Voids

Vacuum voids are internal cavities in Plastic Injection Molding Parts, often caused by incomplete mold filling or gas entrapment. These defects can compromise the strength of Automotive Injection Molding components like structural brackets.

Causes:

• Short shots, where insufficient material is injected.

• Poor venting, trapping air in the Plastic Injection Mold.

• Volatile compounds in the resin forming gas pockets.

Prevention Methods:

• Increase injection pressure by 10-15% to ensure complete mold filling.

• Adjust cooling rates to 0.5-1°C/second to minimize shrinkage.

• Redesign runners and gates, increasing diameter by 0.5-1 mm for better flow.

Data Insight: A 2024 analysis showed that optimizing gate size reduced vacuum voids by 78% in Electronics Injection Molding, enhancing part reliability.

Discoloration

Discoloration, or color streaking, affects the aesthetics of Plastic Injection Molding Parts, appearing as unintended color variations. This is particularly problematic in Household Injection Molding products like kitchenware.

Causes:

• Residual resin in the nozzle or hopper from prior runs.

• Poor thermal stability of colorants.

• Inconsistent masterbatch mixing.

Prevention Methods:

• Clean nozzles, hoppers, and molds thoroughly between cycles, using purging compounds.

• Use colorants with thermal stability up to 300°C for high-temperature Injection Molding.

• Ensure uniform masterbatch blending with a mixing time of 5-10 minutes.

List: Steps to Prevent Discoloration

1. Purge equipment with a compatible cleaning compound.

2. Verify colorant thermal stability for the resin used.

3. Calibrate mixing equipment for consistent masterbatch distribution.

Warping

Warping occurs when Plastic Injection Molding Parts shrink unevenly during cooling, causing distortion. This defect is common in Automotive Injection Molding parts with complex geometries.

Causes:

• Rapid or uneven cooling rates.

• High material shrinkage due to low thermal conductivity.

• Inconsistent wall thickness in the Plastic Injection Mold.

Prevention Methods:

• Extend cooling time by 10-20% to ensure uniform cooling.

• Use low-shrinkage materials like particle-filled thermoplastics (e.g., glass-filled nylon).

• Redesign molds for uniform wall thickness, targeting 1.5-3 mm.

Data Insight: A 2025 report indicated that uniform wall thickness reduced warping by 90% in Medical Injection Molding syringe barrels.

Flash

Flash appears as excess material protruding from Plastic Injection Molding Parts, often at mold parting lines. This defect affects the precision of Electronics Injection Molding components like connectors.

Causes:

• Insufficient clamping force in the Plastic Injection Mold.

• High injection pressure forcing material into gaps.

• Poor mold maintenance, causing wear or misalignment.

Prevention Methods:

• Increase clamping force by 10-15 tons to seal the mold.

• Reduce injection pressure by 5-10% to control material flow.

• Perform regular mold maintenance, inspecting parting lines every 10,000 cycles.

Comparison Table: Flash Prevention Techniques

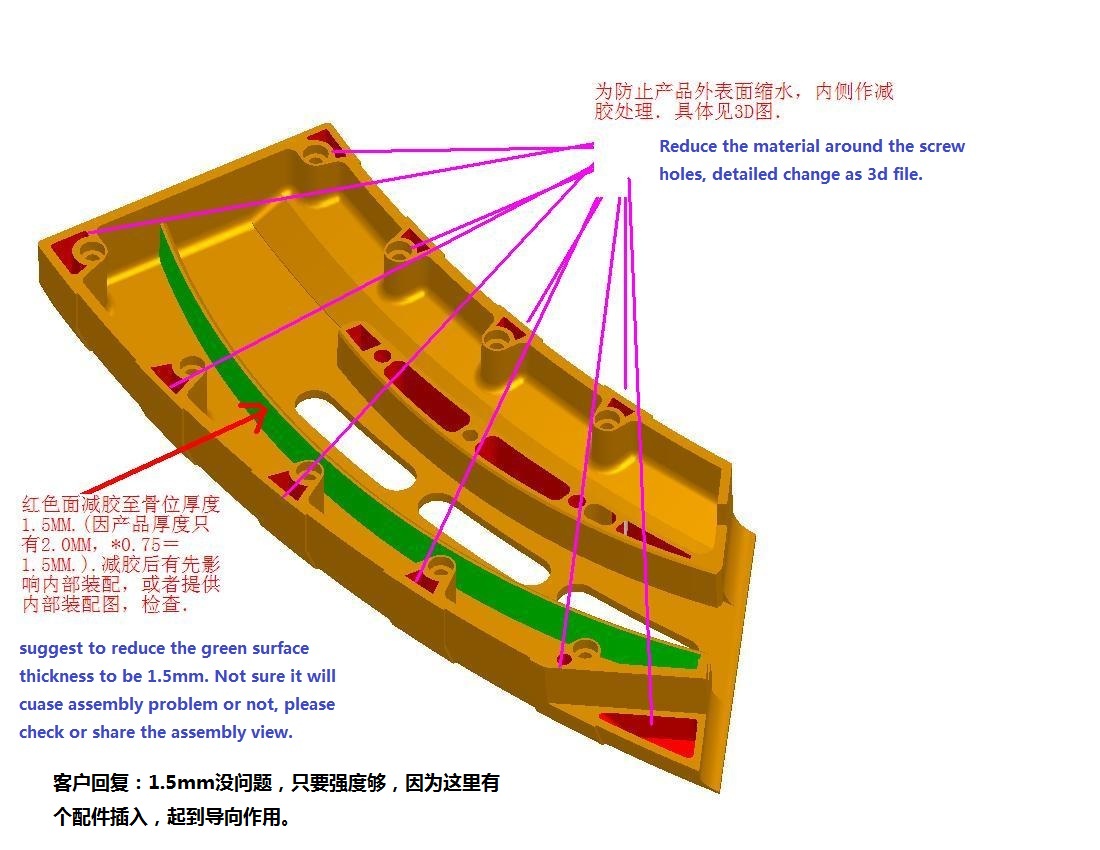

Sink Marks

Sink marks are depressions on Plastic Injection Molding Parts, typically in thicker sections, due to internal shrinkage. These are problematic in Household Injection Molding products like appliance housings.

Causes:

• Insufficient cooling time, causing uneven shrinkage.

• Low mold cavity pressure or high gate temperatures.

• Thick wall sections (>4 mm) cooling slower than thin ones.

Prevention Methods:

• Extend cooling time by 5-10 seconds to reduce shrinkage.

• Increase holding pressure by 10-20% to compact the material.

• Reduce wall thickness to 2-3 mm for uniform cooling.

List: Sink Mark Prevention Checklist

1. Verify cooling time aligns with material specifications.

2. Calibrate holding pressure for consistent cavity filling.

3. Redesign parts to minimize thick sections.

Weld Lines

Weld lines form when two resin flow fronts fail to bond properly in the Plastic Injection Mold, creating weak seams. This is critical in Medical Injection Molding devices requiring high strength.

Causes:

• Low injection pressure or temperature.

• Slow resin flow causing premature cooling.

• Poor mold design, such as misplaced gates.

Prevention Methods:

• Increase injection pressure by 10-15% for better flow fusion.

• Add hot runners to maintain resin temperature above 200°C.

• Redesign molds with additional gates, spacing them 10-20 mm apart.

Data Insight: A 2024 study found that hot runner systems reduced weld lines by 80% in Automotive Injection Molding components.

Jetting

Jetting creates serpentine marks on Plastic Injection Molding Parts due to rapid resin injection, often in Electronics Injection Molding housings.

Causes:

• High injection speed through restrictive gates.

• Low resin or mold temperature causing premature cooling.

• Poor gate placement in the Plastic Injection Mold.

Prevention Methods:

• Reduce ram speed by 15-20% to control resin flow.

• Use heated molds or hot runners, maintaining temperatures at 220-250°C.

• Relocate gates to avoid direct injection into the mold cavity.

List: Jetting Prevention Strategies

1. Adjust ram speed to match resin viscosity.

2. Implement hot runners for consistent temperature.

3. Optimize gate placement for smooth flow.

Flow Lines

Flow lines appear as streaks or patterns on Plastic Injection Molding Parts, affecting aesthetics in Household Injection Molding products.

Causes:

• Variations in cooling rates within the Plastic Injection Mold.

• Inconsistent wall thickness causing uneven flow.

• Low injection speed or pressure.

Prevention Methods:

• Increase injection speed and pressure by 10-15% for uniform filling.

• Round corners in the mold to reduce flow disruptions.

• Relocate gates away from cooling channels by 5-10 mm.

Data Insight: Optimizing gate placement reduced flow lines by 75% in Electronics Injection Molding, per a 2025 report.

Short Shots

Short shots occur when the Plastic Injection Mold is not fully filled, resulting in incomplete Plastic Injection Molding Parts. This is severe in Medical Injection Molding, where functionality is critical.

Causes:

• Insufficient material volume or viscosity.

• Inadequate venting, trapping air in the mold.

• Narrow gates or runners restricting flow.

Prevention Methods:

• Increase injection volume by 5-10% to ensure complete filling.

• Widen vents by 0.03-0.06 mm for better air escape.

• Use less viscous resins, such as low-density polyethylene, for improved flow.

Comparison Table: Short Shot Prevention Techniques

Injection Molding Across Industries

Injection Molding is tailored to specific industry needs, each with unique defect challenges:

• Automotive Injection Molding: Focuses on durable, high-strength parts like bumpers and interior panels. Warping and weld lines are common due to large, complex molds.

• Medical Injection Molding: Prioritizes precision and biocompatibility for devices like catheters. Delamination and short shots can compromise safety.

• Electronics Injection Molding: Requires tight tolerances for components like connectors. Flash and jetting affect functionality and aesthetics.

• Household Injection Molding: Emphasizes aesthetics for products like containers. Discoloration and flow lines are frequent concerns.

• Rubber Compression Molding: Used for flexible parts like seals. Similar defects like flash and voids apply, but material properties differ.

Data Insight: A 2025 industry survey revealed that Medical Injection Molding had the highest defect rejection rate (12%) due to stringent quality standards, while Household Injection Molding had the lowest (5%).

Latest Trends in Injection Molding

Recent advancements in Injection Molding address defect prevention through technology and sustainability:

• Smart Molding Systems: IoT-enabled Plastic Injection Molds monitor temperature, pressure, and cycle time in real-time, reducing defects like burn marks and short shots by up to 60% (2025 industry data).

• Sustainable Materials: Biodegradable resins and recycled plastics are gaining traction, particularly in Household Injection Molding. These materials require adjusted parameters to prevent discoloration and warping.

• Micro-Injection Molding: Used in Medical Injection Molding and Electronics Injection Molding, this trend demands precision to avoid flash and jetting in micro-scale parts.

List: Emerging Injection Molding Technologies

1. Real-time process monitoring with IoT sensors.

2. Advanced simulation software for mold design optimization.

3. Automated defect detection using AI vision systems.

Disadvantages of Injection Molding

Despite its benefits, Injection Molding has limitations that exacerbate defects:

• High Initial Costs: Designing and manufacturing a Plastic Injection Mold can cost $10,000-$100,000, depending on complexity, increasing financial risk if defects occur.

• Long Lead Times: Mold production takes 5-12 weeks, delaying defect resolution in Automotive Injection Molding and Medical Injection Molding.

• Size Limitations: Large parts require massive molds, complicating defect-free production in Automotive Injection Molding.

• Design Constraints: Uniform wall thickness and draft angles are critical, or defects like sink marks and warping arise.

Data Insight: A 2024 report estimated that 30% of Injection Molding project delays stem from mold design revisions to address defects.

Best Practices for Defect-Free Injection Molding

To minimize defects in Injection Molding, manufacturers should adopt a holistic approach:

1. Process Optimization: Fine-tune parameters like temperature, pressure, and cycle time based on material and part requirements.

2. Moldid Design: Ensure uniform wall thickness, adequate venting, and strategic gate placement in the Plastic Injection Mold.

3. Material Selection: Choose resins with low shrinkage and high flowability, tailored to applications like Medical Injection Molding or Electronics Injection Molding.

4. Regular Maintenance: Inspect and clean molds every 5,000-10,000 cycles to prevent flash and short shots.

5. Training and Automation: Equip staff with defect troubleshooting skills and leverage smart systems for real-time monitoring.

Comparison Table: Defect Prevention Strategies by Industry

Conclusion

Injection Molding is a powerful manufacturing process, but its complexity demands vigilance to avoid defects that can undermine Plastic Injection Molding Parts. By addressing common issues like burn marks, delamination, vacuum voids, and short shots, manufacturers can enhance quality across Automotive Injection Molding, Medical Injection Molding, Electronics Injection Molding, Household Injection Molding, and Rubber Compression Molding. Leveraging data-driven insights, modern technologies, and best practices, businesses can minimize defects, reduce costs, and meet stringent industry standards.

For companies embarking on Injection Molding projects, partnering with experienced providers ensures defect-free outcomes. Whether producing precision medical devices or durable automotive components, mastering defect prevention is key to success in the dynamic world of Injection Molding.
