Views: 0 Author: Site Editor Publish Time: 2026-09-25 Origin: Site
Rapid prototyping is intended to shorten product-development cycles, but “rapid” does not mean every prototype has the same price or delivery time. A simple 3D-printed housing may be produced quickly with minimal setup, while a precision CNC-machined assembly with tight tolerances, polished surfaces, threaded inserts, and inspection requirements can involve significantly more machining and labor.
The biggest factors behind rapid prototyping cost are usually the selected manufacturing process, part size, geometry, material, quantity, tolerances, surface finishing, and the amount of engineering or post-processing required. Lead time is influenced by many of the same variables, but material availability, design revisions, inspection, tooling, and production scheduling can also become important.
For buyers, the most useful question is therefore not simply “How much does a prototype cost?” It is “What level of prototype is actually needed at this stage of product development?”
YEESHINE TECHNOLOGY CO., LIMITED provides integrated Rapid Prototyping, CNC machining, 3D printing, mold manufacturing, and injection molding services for plastic and metal product development.
A prototype is not one standardized product.
One customer may need a visual model to confirm overall size and appearance. Another may need a fully functional engineering prototype that uses production-grade plastic or metal, holds tight tolerances, fits into a working assembly, and survives mechanical testing.
Those requirements lead to very different manufacturing processes.
A visual prototype may prioritize:
Shape
Overall dimensions
Appearance
Color
Basic assembly
A functional prototype may additionally require:
Production-like material
Tight dimensional tolerances
Mechanical strength
Threaded features
Accurate mating surfaces
Heat resistance
Surface finishing
Functional testing
As prototype fidelity increases, manufacturing time and cost normally increase as well.
This is why product-development teams often use several prototype stages rather than trying to create one expensive final prototype immediately. Early models can test form and concept. Later prototypes can verify fit, function, assembly, material performance, and manufacturability before tooling begins.
Tip: Match prototype quality to the decision you need to make. Paying for production-level tolerances on an early visual concept usually adds cost without adding useful information.
The selected production process often has the largest influence on both price and lead time.
3D printing, CNC machining, vacuum casting, and rapid injection molding each have different setup costs, material options, geometry limitations, and economies of scale.
Process | Initial Setup Cost | Best Quantity Range | Main Cost Drivers | Typical Strength |
|---|---|---|---|---|
3D Printing | Low | 1–small batch | Build volume, print time, material, finishing | Fast design iteration |
CNC Machining | Low–Moderate | 1–low volume | Machine time, setups, material, tolerance | Production-like material |
Vacuum Casting | Moderate | Small batch | Master model, silicone mold, quantity | Repeated cosmetic prototypes |
Rapid Injection Molding | Higher | Low–medium volume | Mold, part geometry, cavities, material | Production-like molded parts |
The correct choice depends on what the prototype needs to prove.
3D printing is usually one of the fastest methods for early design iterations because no dedicated mold or cutting fixture is required.
Once the 3D CAD model is prepared, the prototype can be built layer by layer. Complex internal geometry may also be easier to produce additively than through conventional machining.
The main cost drivers include:
Part dimensions
Total material volume
Print orientation
Support structures
Printing technology
Material
Surface finish
Post-curing or cleaning
Painting or other finishing
Large solid components generally require more material and machine time than hollow or optimized designs.
Post-processing can also become a major cost factor. A raw printed prototype may be relatively economical, but sanding, polishing, painting, plating, clear coating, or cosmetic finishing adds labor.
YEESHINE provides 3D Printing for prototype development, complex plastic geometries, design evaluation, and low-volume production.

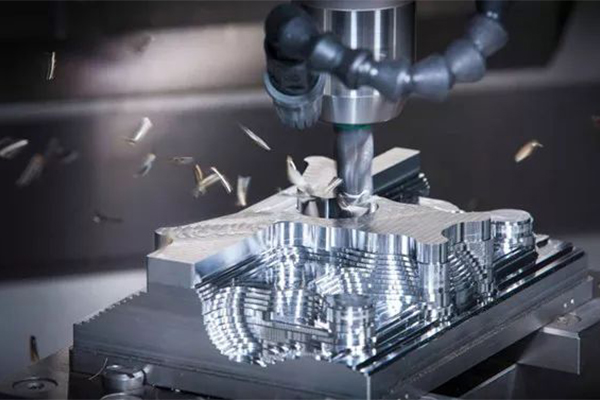

CNC machining removes material from a solid block using controlled cutting tools.
It is particularly useful when prototypes need material properties closer to the final production component. Parts can be machined from ABS, PC, POM, nylon, aluminum, stainless steel, brass, copper, and other engineering materials.
CNC prototype pricing depends heavily on machining time.
Complex features may require multiple tool changes, different setups, 3-axis or 5-axis machining, and more operator involvement.
YEESHINE's CNC Machining capabilities support plastic and metal prototypes for electronics, medical, household, automotive, and industrial applications.
Compared with 3D printing, CNC machining may cost more for highly complex one-off shapes, but it can provide better mechanical properties, tighter tolerances, and production-like surfaces for functional validation.
Vacuum casting is useful when several similar plastic prototypes are required.
Instead of machining every part individually, manufacturers first create a master model. A silicone mold is then produced from that master, and polyurethane or similar casting materials are used to duplicate the component.
The initial master and silicone mold create an upfront cost, but individual part cost can become more attractive across a small batch.
Vacuum casting is therefore commonly used for:
Product samples
Marketing prototypes
Functional plastic parts
Design validation
Small pilot batches
Pre-production assemblies
It can also reproduce textures and cosmetic details effectively.
YEESHINE includes vacuum casting within its broader Rapid Prototyping capabilities.
When prototypes need the same manufacturing process and thermoplastic material planned for production, rapid injection molding may become appropriate.
Unlike additive manufacturing or CNC machining, injection molding requires a mold. This increases initial cost and lead time.
However, once the tooling is complete, multiple repeatable parts can be produced efficiently.
Rapid injection molding becomes useful when engineers need to verify:
Molded material behavior
Shrinkage
Weld lines
Sink marks
Gate performance
Ejection
Assembly
Production geometry
Repeated part consistency
For very low quantities, tooling may not be economical. For larger prototype batches or bridge production, the mold cost can be distributed across more parts.
YEESHINE provides Plastic Injection Mold manufacturing alongside prototyping and production molding, allowing projects to transition from validation into later production stages.
Complexity affects nearly every prototyping process, although the reasons differ.
In CNC machining, complex geometry increases tool paths, machining time, setups, fixtures, and programming effort. In 3D printing, complex geometry may increase supports, printing time, cleaning, or finishing. In injection molding, complexity affects mold construction, sliders, lifters, inserts, parting lines, and ejection.
Deep pockets can make CNC machining more difficult because cutting tools need sufficient length to reach the bottom.
Long tools are less rigid and may need slower cutting parameters to maintain accuracy.
Undercuts can require special tooling, extra setups, or 5-axis machining.
For prototypes where the undercut is not essential to testing, simplifying the geometry can reduce both price and delivery time.
Very thin walls can create challenges in several processes.
Machined plastic may deform during cutting. Metal sections may vibrate. 3D-printed walls may require careful orientation or support. Injection-molded parts may need higher filling pressure and careful gate design.
If wall thickness is not critical for the prototype test, a slightly more robust design can sometimes be manufactured faster and more economically.
Tiny holes, narrow slots, sharp internal corners, and miniature details require smaller tools or higher-resolution manufacturing.
Smaller CNC cutters remove material more slowly and can break more easily.
Similarly, highly detailed printed components may require slower, higher-resolution build settings.
Engineers should distinguish critical functional details from features that can be simplified temporarily during early prototyping.
Material selection affects raw-material price, machining behavior, printing speed, availability, and finishing.
A standard prototype resin or common aluminum grade may be easier to source than a specialized engineering polymer or uncommon metal alloy.
This can make an apparently simple part expensive if the required material is difficult to obtain.
Common prototype plastics include:
ABS
PC
PMMA
POM
PP
Nylon
PVC
TPU
TPE
PEEK
Materials should be selected according to what the prototype needs to demonstrate.
ABS may be appropriate for a basic housing prototype, while POM may be more suitable for low-friction mechanical components. Transparent PC or PMMA may be needed for optical or display-related parts.
High-performance polymers such as PEEK generally cost more and may require more specialized machining conditions.
Common CNC prototype metals include:
Aluminum
Stainless steel
Carbon steel
Brass
Copper
Titanium
Aluminum is frequently selected because it combines relatively easy machining with good strength and low weight.
Stainless steel generally requires slower machining and generates greater cutting forces. Titanium is more difficult to machine and can therefore increase machine time considerably.
Material choice should reflect the prototype's purpose. If the project only needs to verify assembly dimensions, using an expensive final-production alloy may not always be necessary.
Every dimension does not need the same tolerance.
Standard prototyping tolerances can often be achieved without excessive inspection or machine time. Tight tolerances require more controlled machining, slower finishing passes, better fixturing, and additional measurement.
The difference becomes particularly important for CNC machining.
A prototype drawing that places extremely tight tolerances on every dimension may increase cost significantly even if only two mating features actually require that level of accuracy.
For example, a housing may need precise bearing positions but can tolerate much more variation on an external decorative surface.
Good engineering drawings separate:
Critical fit dimensions
Functional dimensions
Cosmetic dimensions
Non-critical geometry
This allows the manufacturer to concentrate machining and inspection effort where it actually matters.
Tighter tolerances also increase inspection requirements.
Simple dimensions may be checked with calipers or conventional gauges. More demanding geometry may require height gauges, optical measurement, CMM inspection, fixtures, or detailed reports.
First Article Inspection, dimensional reports, material certificates, or other quality documentation can increase both price and lead time.
These services provide value when they support engineering validation, but they should be specified intentionally rather than automatically.
Quantity changes the economics of every rapid prototyping process.
For a single prototype, setup cost is concentrated into one part.
When several identical components are produced, programming, setup, fixtures, and engineering time can often be distributed across the entire batch.
This usually reduces cost per part.
However, the relationship is different for each process.
Multiple printed parts can sometimes be nested into the same machine build.
This can improve machine utilization, although material and post-processing costs still rise with quantity.
For a small number of complex components, additive manufacturing remains highly attractive because there is little fixed tooling investment.
CNC machining has initial programming and setup requirements.
Once the first part is proven, subsequent identical parts can usually be machined more efficiently.
Fixtures can also become worthwhile when quantity increases.
This means five or twenty machined prototypes may have a lower unit cost than one isolated prototype, even though total project cost is higher.
Vacuum casting specifically benefits from small repeated batches because the master pattern and silicone mold are reused.
The number of usable parts from one silicone mold is limited, so very large quantities eventually favor another process.
Injection molding has the strongest tooling economy.
The mold creates a relatively large upfront cost, but each additional part can be produced quickly.
As quantity rises, tooling cost is distributed across more components.
This is why product developers often move from 3D printing to CNC prototypes, then to low-volume molded parts as the design becomes more stable.
A prototype that only needs functional testing may require little finishing.
A prototype used for a customer presentation, exhibition, photography, or design approval may require much more cosmetic work.
Typical finishing options include:
Sanding
Polishing
Painting
Spray coating
Anodizing
Powder coating
Plating
Brushing
Sandblasting
Silk-screen printing
Laser marking
Vacuum metallizing
Finishing can sometimes require more manual labor than manufacturing the base prototype itself.
For example, creating a smooth painted appearance on a 3D-printed prototype can involve repeated sanding, primer, inspection, paint, and curing.
A CNC-machined aluminum prototype requiring anodizing also needs additional handling after machining.
YEESHINE offers a range of surface treatments alongside prototyping and CNC manufacturing, allowing appearance requirements to be integrated into the project rather than treated as an unrelated downstream process.
Tip: If the prototype is only for fit testing, specify a basic finish. Reserve cosmetic finishing for prototypes that actually need visual approval.
Cost and lead time are closely connected, but they are not identical.
A part may be inexpensive yet delayed because a special material must be sourced. Another may be expensive but produced quickly because material and equipment are immediately available.
The main lead-time factors include:
CAD readiness
Manufacturing process
Material availability
Part complexity
Quantity
Machine scheduling
Tolerances
Surface finishing
Inspection
Outsourced treatments
Design changes
Shipping
A manufacturable CAD model can move directly into production planning.
Incomplete geometry, inconsistent drawings, missing tolerances, unclear materials, or conflicting specifications require engineering clarification before manufacturing begins.
This can add more delay than the actual machining or printing process.
Providing STEP or other suitable 3D data together with clear drawings reduces communication time.
Rapid prototyping is designed for iteration, but repeated revisions naturally extend the overall project schedule.
The key is to make revisions intentionally.
Instead of changing one small feature after every prototype, engineering teams can collect test results and combine several improvements into the next design version.
This preserves the speed advantage of prototyping.
Secondary finishing frequently adds lead time.
Painting, plating, anodizing, heat treatment, special coatings, and printing may require separate production scheduling.
Complex prototypes that move between several suppliers can also accumulate logistics delays.
Using one supplier for multiple manufacturing stages can simplify coordination.
YEESHINE's integrated manufacturing approach covers Rapid Prototyping, CNC machining, mold manufacturing, injection molding, and multiple surface treatments, reducing the number of separate handoffs required in a development project.
The goal should not be to make the prototype as cheap as possible.
The goal is to spend only on features that provide useful engineering information.
Several strategies can reduce cost while preserving the purpose of the prototype.
Early prototypes do not always need final materials or premium surfaces.
A low-cost printed model may be enough to evaluate size, ergonomics, and assembly direction.
Later CNC prototypes can verify mechanical performance.
Injection-molded samples can then confirm production behavior after the design is more mature.
This staged approach reduces the risk of investing heavily in a design that is still changing.
Temporary design simplifications can reduce machine time.
Examples include:
Removing unnecessary internal pockets
Relaxing decorative radii
Increasing extremely thin walls
Eliminating non-functional micro-features
Using standard hole sizes
Reducing unnecessary tolerance requirements
These changes should not affect the feature being tested.
One prototype does not always need to prove everything.
A cosmetic prototype can focus on color, texture, shape, and appearance.
A second functional prototype can focus on strength, assembly, and dimensional accuracy.
This can sometimes be more economical than forcing one prototype to meet both high cosmetic and engineering requirements.
Design for Manufacturability review can identify expensive features before machine time is committed.
For CNC machining, DFM may identify deep pockets, sharp internal corners, inaccessible features, or unnecessarily tight tolerances.
For injection molding, it can identify draft, wall-thickness variation, undercuts, gate issues, or difficult ejection.
Early DFM reduces redesign after parts have already been manufactured.
Rapid prototyping is valuable because it allows changes before expensive production tooling is committed.
However, continuing to machine or print prototypes after the design is already stable can become inefficient.
Moving toward injection molding becomes more practical when:
Geometry is largely frozen
Material has been selected
Assembly has been validated
Functional testing is complete
Production quantity is increasing
Molded part behavior needs verification
Unit cost is becoming more important
At this stage, the engineering question changes from “Does the design work?” to “Can the design be manufactured consistently at production volume?”
YEESHINE's integrated workflow allows projects to move from Rapid Prototyping into Plastic Injection Mold development and subsequent molded-part production without treating these phases as completely separate projects.
This continuity can help preserve design intent and reduce communication gaps during the transition from prototype to production.
A manufacturer can provide a more reliable quotation when the project requirements are clear from the beginning.
Useful information includes:
3D CAD file
2D technical drawing
Part dimensions
Material
Quantity
Tolerances
Surface finish
Color
Critical dimensions
Functional requirements
Cosmetic requirements
Required inspection
Target delivery date
Final production process
The final production process is especially useful information.
If a CNC prototype will eventually become an injection-molded plastic part, the prototype supplier can consider future moldability during design review.
Similarly, if the objective is only an exhibition sample, manufacturing decisions can prioritize appearance rather than production-level mechanical performance.
YEESHINE TECHNOLOGY CO., LIMITED provides a one-stop workflow covering engineering, Rapid Prototyping, CNC machining, mold manufacturing, injection molding, and finishing for automotive, electronics, medical, household, and other product-development projects.
There is no fixed rapid prototyping cost because prototype projects can differ dramatically in process, material, geometry, tolerance, quantity, and finishing.
3D printing is often efficient for early design iteration and complex low-volume parts because it requires little dedicated tooling. CNC machining becomes valuable when prototypes need production-like materials, tighter tolerances, and realistic mechanical performance. Vacuum casting can reduce unit cost for small batches of similar plastic prototypes, while rapid injection molding becomes increasingly relevant when engineers need production-process validation or larger quantities.
Lead time follows the same logic.
A simple CAD model made from an available material with standard tolerances can move through production quickly. Specialized materials, difficult geometry, tight inspection, premium surface treatments, multiple revisions, or new tooling can extend the schedule significantly.
The most effective way to control both price and delivery is to define what the prototype needs to prove before selecting the manufacturing process.
YEESHINE TECHNOLOGY CO., LIMITED combines Rapid Prototyping, 3D Printing, CNC Machining, mold manufacturing, and injection molding so product-development teams can move from early design validation toward functional testing and production using an integrated manufacturing workflow.
A: There is no standard price. Rapid prototyping cost depends on manufacturing method, material, size, geometry, quantity, tolerance, surface finishing, inspection, and required lead time.
A: For simple one-off concept parts, 3D printing is often economical because no tooling is required. CNC machining may provide better value when production-grade material and tight dimensional accuracy are needed.
A: 3D printing can be particularly fast for early-stage prototypes because the process moves directly from CAD data to production without dedicated tooling. Actual lead time still depends on size, material, capacity, and finishing.
A: CNC machining can require more programming, setups, cutting time, material removal, and inspection. However, it provides production-grade material properties, good surface finish, and high dimensional accuracy.
A: Usually yes. Programming, setup, engineering, molds, or fixtures can often be distributed across more parts, reducing unit cost as quantity increases.
A: Yes. Tight tolerances can require slower machining, additional finishing passes, improved fixturing, more measurement, and additional quality inspection.
A: It can. Painting, anodizing, plating, polishing, printing, and other secondary processes may require additional production stages and curing or processing time.
A: Consider injection molding after geometry, assembly, material, and core functionality have been validated and the project needs repeated production-like plastic parts or is preparing for higher-volume manufacturing.
