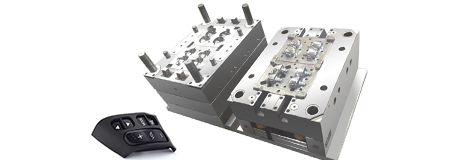

Key Considerations for Automotive Plastic Injection Mold Development

Plastic injection molding is a versatile and widely used manufacturing process in the automotive industry. The precision, efficiency, and versatility it offers make it an ideal choice for producing various automotive components, from dashboards to bumpers, interior trims, and engine parts. However, the success of plastic injection molding lies in a well-planned and executed plastic injection mold development process. This article delves into the critical considerations that designers and engineers must take into account when developing plastic injection molds for the automotive industry.

The quality of the plastic injection mold directly affects the performance, durability, and aesthetic appeal of the final product. Several factors influence the mold design, including material selection, tolerance parameters, gate location, mold shrinkage, and wall thickness. Additionally, plastic injection molds must account for the specific demands of automotive applications, such as resistance to high temperatures, durability, and weight reduction.

Material Consideration for Automotive Plastic Injection Molds

One of the most critical aspects of plastic injection mold development is the selection of the right material. Automotive parts often require plastic materials with specific properties such as high strength, impact resistance, heat resistance, and chemical stability. Understanding the characteristics of different plastics is essential in choosing the right material for each application.

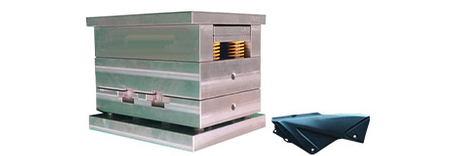

Common Materials Used in Automotive Plastic Injection Molding

Some of the most commonly used materials in automotive plastic injection molds include:

• Acrylonitrile Butadiene Styrene (ABS): Known for its toughness, impact resistance, and ability to handle heat well, ABS is widely used in automotive parts, including interior panels, dashboards, and trim components. Its ease of processing and molding makes it a favorite in the automotive industry.

• Polycarbonate (PC): Polycarbonate is a transparent, high-strength material with excellent impact resistance. It is often used in automotive lighting systems, headlamp lenses, and transparent interior parts.

• Polypropylene (PP): A lightweight and cost-effective material, polypropylene is commonly used for automotive interior components, bumpers, and under-the-hood parts. It offers good chemical resistance and is easy to mold.

• Polyamide (Nylon): Nylon is known for its excellent wear resistance and ability to withstand high temperatures. It is often used in automotive parts that need to handle mechanical stress and heat, such as engine components and gears.

Choosing the right material ensures that the plastic injection mold produces parts with the required performance characteristics. It's essential to consider factors like strength, heat resistance, and chemical compatibility with the automotive environment.

Tolerance Parameters in Plastic Injection Mold Development

Tolerance parameters define the acceptable range within which the actual dimensions of the molded part can differ from the intended design dimensions. Setting precise tolerance parameters is crucial for ensuring that the final part fits and functions as intended. This is especially important in automotive applications, where precision and compatibility with other components are vital.

Importance of Tolerance in Automotive Parts

Automotive parts must often fit with other components to form a larger assembly, such as dashboard assemblies, doors, and engine components. If the tolerances are too wide, it could lead to improper fits, functionality issues, and a negative impact on the overall performance of the vehicle.

For example, a plastic injection mold designed for an automotive dashboard must ensure that the molded part fits precisely with other components like the control panel, air vents, and wiring. If the tolerances are off, it could lead to misalignment, gaps, or even functional failures.

How to Determine Tolerance Parameters

When setting tolerance parameters, designers must consider the material's properties, the molding process, and the functionality of the part. For example, thermoplastic materials like ABS tend to shrink more than thermosetting materials like epoxy, which may require different tolerance settings.

Additionally, the plastic injection mold process itself, including factors like temperature control, cooling time, and injection speed, must be optimized to maintain consistent and accurate tolerances across production runs.

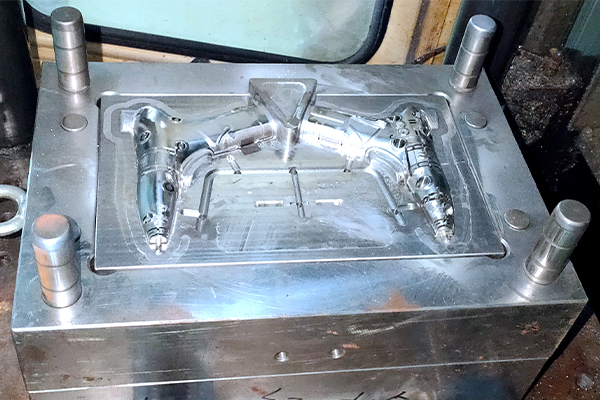

Gate Location in Plastic Injection Molding

The gate location in an automotive plastic injection mold determines how the molten plastic enters the mold cavity. The gate's position significantly impacts the flow of material, the quality of the part, and the appearance of the final product.

Factors to Consider When Choosing Gate Location

1. Flow Path: The gate location must be chosen to ensure the smooth and even flow of molten plastic into the mold cavity. An improperly placed gate can cause uneven material distribution, leading to defects like sink marks or voids.

2. Aesthetic Impact: In automotive applications, the appearance of molded parts is critical. The gate location should be selected to minimize visible gate marks or flow lines, particularly in areas that are highly visible, such as dashboards or exterior parts.

3. Functional Alignment: The gate should be positioned in a way that aligns with the functional needs of the part. For example, if a component requires a specific feature to be molded first, the gate should be placed accordingly to ensure that the flow of material supports the feature's formation.

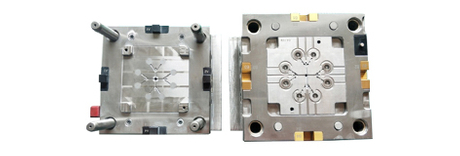

4. Type of Gate: There are various types of gates, including direct gates, edge gates, and hot runner systems. The choice of gate type will depend on the part's complexity, size, and aesthetic considerations.

By optimizing the gate location, manufacturers can ensure better material flow, fewer defects, and improved overall quality of the molded part.

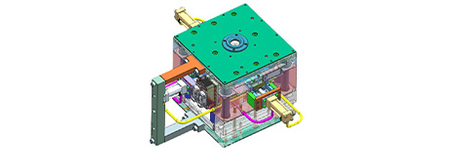

Mold Shrinkage in Automotive Plastic Molding

Mold shrinkage refers to the reduction in size that occurs as the plastic material cools and solidifies within the mold cavity. This is a critical factor in plastic injection mold development because it affects the final dimensions of the part. Understanding and compensating for mold shrinkage is crucial to ensuring that the molded part meets the required specifications.

How Mold Shrinkage Affects Automotive Parts

In automotive applications, mold shrinkage can lead to dimensional inaccuracy, affecting the fit and function of the part. For instance, if the shrinkage is not accounted for, a molded bumper might be too small, causing alignment issues when installed on the vehicle. Similarly, shrinkage in interior panels could lead to poor fits with other components.

Compensation for Mold Shrinkage

Mold designers must account for the expected shrinkage of the plastic material during the design phase. This typically involves adjusting the mold cavity size to accommodate the shrinkage. Factors that affect shrinkage include:

• Material Type: Different plastics shrink at different rates. For example, ABS has a higher shrinkage rate than polypropylene.

• Wall Thickness: Thicker walls tend to shrink more than thinner ones. Designers must balance the part's structural integrity with the need to minimize shrinkage.

• Cooling Time: Longer cooling times can reduce shrinkage but may affect production efficiency. Designers must optimize the cooling time to ensure both quality and efficiency.




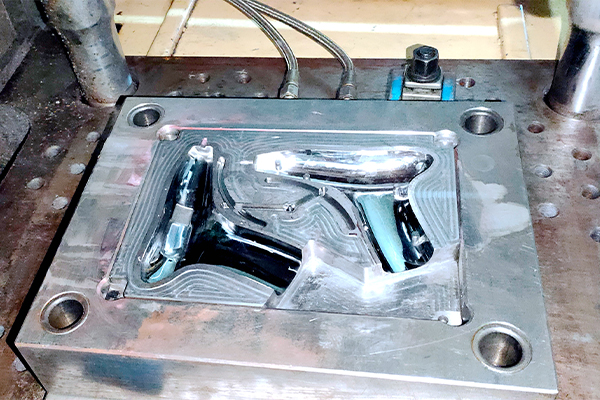

Wall Thickness in Plastic Injection Molds

Wall thickness is another important factor to consider when developing a plastic injection mold. The thickness of the walls directly impacts the part's strength, durability, and overall appearance.

How Wall Thickness Affects Mold Quality

1. Strength and Durability: Thicker walls generally result in stronger parts, while thinner walls may lead to weaker or more brittle components. However, overly thick walls can cause uneven cooling and result in defects like sink marks or warping.

2. Cooling Efficiency: Thicker walls require longer cooling times, which can slow down production and increase cycle times. Designers must strike a balance between the desired part strength and the need for efficient production.

3. Material Flow: Thicker walls also affect the flow of molten plastic. A well-designed mold ensures that the material flows evenly throughout the part, preventing defects.

Conclusion

The development of high-quality plastic injection molds for automotive applications requires careful consideration of various factors. Material selection, tolerance parameters, gate location, mold shrinkage, and wall thickness all play critical roles in ensuring that the molded parts meet the required performance standards. By understanding these considerations, designers and manufacturers can optimize the injection molding process to produce durable, functional, and aesthetically appealing automotive components.

As the automotive industry continues to evolve, the demand for advanced materials, precise molding techniques, and efficient production processes will only increase. Staying up-to-date with the latest trends in plastic injection mold development and incorporating best practices will ensure that automotive parts meet the rigorous standards set by both manufacturers and consumers.
