Plastic injection molding is one of the most widely used manufacturing methods for producing plastic parts in high volumes. From phone cases and food containers to medical equipment and automotive parts, injection molding is a critical process that shapes many of the everyday products around us.
Because injection molding is capable of producing large quantities of parts efficiently, many people assume the process is simple. However, the reality is quite different. Injection molding is a highly technical process that involves many variables. From product design and material selection to precision control and mold fabrication, every step requires deep expertise. So, is plastic injection molding difficult? The answer is yes—when done correctly, it’s a complex and detailed process that demands accuracy, consistency, and technical knowledge.
Plastic injection molding is a process where molten plastic is injected into a mold cavity under high pressure. Once the plastic cools and solidifies, the mold opens, and the finished part is ejected. This method allows for the mass production of parts that are consistent in shape, size, and quality.

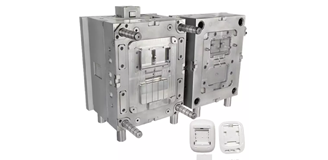

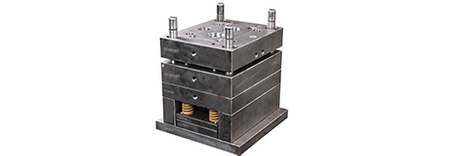

The mold itself is typically made from metal (usually steel or aluminum) and consists of two main parts: a fixed half and a movable half. These halves come together to form the cavity where the plastic material is injected. The process may seem straightforward, but it requires precise control of temperature, pressure, timing, and material flow.
A common misunderstanding is that once a mold is made, any plastic part can be produced easily. In reality, even small errors in design, material choice, or processing can result in serious defects or failures in the final product.
The design of the product being molded plays a significant role in determining how easy or difficult the molding process will be. Complex geometries, sharp corners, thin walls, and undercuts can make it difficult for the plastic to flow evenly through the mold.
Thin walls can lead to uneven cooling or incomplete filling.
Sharp corners create stress concentrations, increasing the chance of cracking.
Undercuts require more advanced mold design features such as sliders or lifters, adding cost and complexity.
A poorly designed part may require expensive mold modifications or even a complete redesign. Therefore, designers must understand both the functional requirements and the limitations of the injection molding process.
Different plastic materials have different properties, which can greatly influence the molding process. For example:
ABS is easy to mold but sensitive to moisture.
PVC requires careful temperature control and corrosion-resistant equipment.
Nylon shrinks more than many other plastics, making precision more difficult.
Each plastic has a unique melt temperature, flow behavior, cooling rate, and shrinkage factor. Choosing the wrong material can result in warping, short shots, poor surface finish, or parts that fail during use. The challenge lies in selecting a material that fits both the product’s performance requirements and the technical needs of the molding process.
In many industries, such as automotive or medical, parts must meet extremely tight tolerances—sometimes within microns. Achieving this level of precision is not easy. It depends on:
Accurate mold design and machining
Stable molding conditions (temperature, pressure, speed)
Consistent material behavior
Proper mold maintenance
Even the smallest variation in one of these areas can result in inconsistent part dimensions. Precision molding requires advanced equipment, skilled technicians, and careful process control to produce parts that are not only accurate but also repeatable across thousands or millions of cycles.
Even when all conditions seem optimal, manufacturers still face a variety of defects during injection molding. These include:
Warping occurs when different parts of the molded item cool and shrink at different rates. This uneven shrinkage can cause the part to bend or twist, making it unusable.
Warping is especially common in flat, thin parts.
It can be caused by poor mold design, improper cooling channels, or an uneven wall thickness.
Fixing warping often requires redesigning the part or adjusting processing parameters like temperature and cooling time.
All plastics shrink as they cool, but some shrink more than others. Uneven shrinkage leads to dimensional inaccuracies, making it hard to assemble parts or meet tolerances.
Material type and mold temperature play a big role.
Designers must consider shrinkage rates when sizing the mold cavity.
Simulation tools can help predict and compensate for shrinkage during the design phase.
Flow lines appear as visible streaks on the surface of a part. They are caused by the molten plastic flowing at inconsistent speeds or temperatures.
Sudden changes in wall thickness or slow injection speed often cause flow lines.
While they usually don’t affect function, they can ruin the appearance of cosmetic parts.
Preventing flow lines requires smoother part design, higher injection speeds, and optimal gate placement.
Other common defects include:
Sink marks: Caused by uneven cooling or insufficient packing pressure.
Short shots: When the mold is not filled completely due to low pressure or blocked gates.
Flash: Extra plastic leaking out of the mold cavity due to poor clamping force or mold wear.
Burn marks: Caused by trapped air or overheating of the plastic.
Each of these problems can lead to product rejection, increased scrap rates, and costly rework.
At YEESHINE TECHNOLOGY CO., LIMITED, injection molding is far from difficult—it’s a precise science backed by experience, technology, and innovation. YEESHINE offers a complete solution to meet the most demanding injection molding requirements.
YEESHINE operates a modern facility equipped with:
High-speed Fanuc CNC machines
Mirror-finish Sodick EDM machines
Slow wire-cutting machines
Single and double-color injection molding machines
This advanced machinery enables the company to produce molds and parts with high dimensional accuracy, excellent surface quality, and consistent performance.
YEESHINE employs a team of experienced engineers who specialize in mold design and plastic part development. From 2K molding to overmolding and silicone rubber molding, the team can handle a wide range of projects.
The company uses high-quality materials such as P20, 718, and NAK80 for plastic molds and No. 45 steel, 8407, and H13 for silicone molding, ensuring durability and long mold life.
Before delivery, all molds undergo rigorous testing. Video documentation of mold trials is available, giving clients full confidence in the product’s performance. YEESHINE also provides support in material selection, product design, and optimization of molding parameters.
YEESHINE’s plastic injection molding capabilities serve a wide variety of industries:
Electronics: Remote controls, phone holders, chargers, game consoles
Medical: Thermometers, masks, sprayer
Automotive: Door handles, fuel tank caps, cup holders
Consumer Goods: Storage boxes, food containers, pet bowls, toys
No matter the application, YEESHINE ensures quality, consistency, and precision at every step.
Plastic injection molding may appear simple on the surface, but it is, in fact, a highly detailed and technically demanding process. Success in injection molding requires careful consideration of design, material properties, and process parameters. Common defects like warping, shrinkage, and flow lines can easily arise without proper planning and control.
The good news is that with the right expertise and equipment, these challenges can be effectively managed. YEESHINE TECHNOLOGY CO., LIMITED demonstrates that injection molding doesn’t have to be difficult when backed by state-of-the-art technology, precision mold design, and a commitment to quality.
Whether you are developing a new product or improving an existing one, YEESHINE provides reliable injection molding solutions tailored to your specific needs. From design consultation to mold manufacturing and mass production, their team is ready to support your success every step of the way.
