Views: 0 Author: Site Editor Publish Time: 2026-03-02 Origin: Site

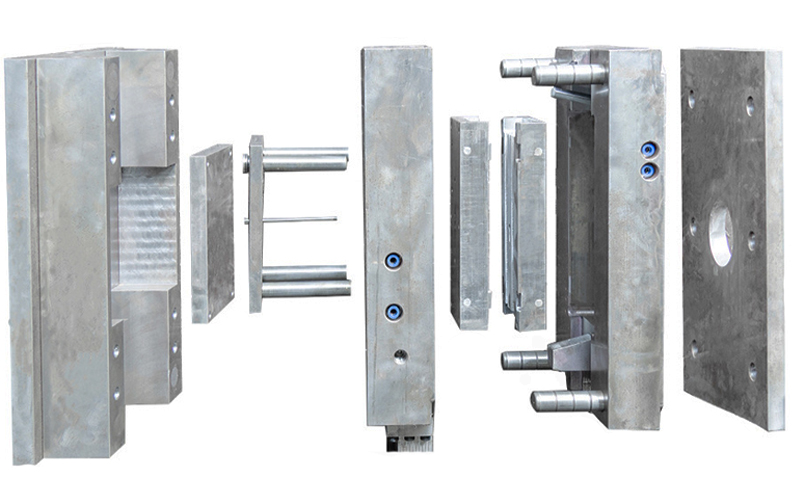

Mold steel grade is one of the most important factors that determines whether injection molds can produce stable, high-quality plastic parts over time. Even when two molds use the same design, cavity layout, and cooling concept, the final molding results can be very different if the steel grades are different.
That is because mold steel does much more than “hold the cavity shape.” It directly influences:
heat transfer and cooling uniformity
wear resistance under repeated cycles
corrosion resistance in humid or chemically aggressive environments
polishability for cosmetic and optical surfaces
long-term dimensional stability under pressure and heat
maintenance frequency and mold service life
In real production, these steel properties translate into very practical quality outcomes: better or worse surface finish, tighter or drifting tolerances, more or fewer defects, and shorter or longer intervals between maintenance.
Below is a practical, quality-focused breakdown of how steel grade affects performance in injection molds, what that means for molded part quality, and how to choose the right steel based on resin type, cosmetic requirements, production volume, and expected mold life.
Steel grade affects part quality in injection molds through several core mechanisms. These are not theoretical differences—they show up directly on the molded part and in day-to-day production performance.
The steel used in injection molds affects how heat moves through the mold, how evenly the cavity cools, and how stable the process remains from cycle to cycle.
More uniform cavity temperature usually means:
more consistent shrinkage
less warpage
fewer sink marks
more stable part dimensions
better repeatability over long production runs
If the mold steel does not support stable thermal behavior—or if it suffers from long-term thermal fatigue—cooling performance may slowly become less consistent. This makes it harder to hold tight tolerances and maintain stable cosmetic quality.
For quality-sensitive projects, steel selection should always be considered together with cooling layout, insert design, and whether advanced solutions such as conformal cooling are needed.
Injection molded parts copy the cavity surface very closely. That means the surface condition of the steel has a direct impact on the final part finish.
Higher-cleanliness steels with strong polish response are better able to maintain:
smooth cavity surfaces
consistent gloss
lower haze
fewer fine scratches or micro-defects
better long-term appearance stability
This is especially critical for:
transparent parts
high-gloss housings
decorative cosmetic components
optical parts requiring mirror polish
If the steel has poor polishability, impurities, or lower resistance to surface damage, the part surface can gradually lose clarity and consistency—even if the mold was initially finished well.
Many plastic materials are not gentle on injection molds. Resins filled with glass fiber, mineral fillers, flame retardants, or recycled material can wear cavity surfaces, gates, runners, shutoffs, slides, and vents over time.
Strong wear resistance helps maintain:
gate geometry
shutoff sealing
parting line condition
cavity dimensions
stable flow behavior
When wear develops, quality problems usually follow. The mold may begin producing:
more flash
dimension drift
greater part-to-part variation
unstable packing behavior
visible mismatch at parting lines
That is why steel choice becomes especially important for abrasive materials and high-volume production.
Some resins, additives, flame retardants, cleaning agents, and storage conditions create a corrosive environment inside injection molds. Over time, this can lead to surface oxidation, rust, or micro-pitting.
Even very small corrosion defects can create major part-quality problems, such as:
haze on clear parts
gloss inconsistency on cosmetic surfaces
black specks or staining
poor venting performance
local sticking or drag marks during ejection
Good corrosion resistance is especially important when molding:
PVC or corrosive materials
flame-retardant resins
some medical and specialty plastics
molds stored in humid conditions
molds requiring frequent cleaning or washdown
For these applications, stainless mold steels such as S136 / 1.2316 are often selected because they protect both appearance quality and long-term mold stability.
Buyers often see defects in production without immediately realizing that steel grade is part of the root cause. Below is a practical defect map showing how steel choice in injection molds can affect real molded parts over time.
Often linked to steel that is too soft, wear at shutoffs, parting-line damage, or vent edge degradation. As sealing surfaces wear, flash becomes more likely and may gradually worsen.
Often caused by poor polishability, low steel cleanliness, micro-pitting, corrosion, or repeated rework of the cavity surface. Cosmetic parts are especially sensitive to this.
Can come from wear at gates, slides, cores, or shutoff regions, as well as from long-term thermal stress. Weak dimensional stability makes it harder to maintain tolerance over long production runs.
Often linked to surface damage, galling, poor polish retention, or an incorrect balance between hardness and toughness. Ejection problems often become worse as the mold ages.
Not always caused by steel alone, but steel with poor corrosion resistance may allow vents to degrade faster. Deposits or corrosion at vents reduce air evacuation, which increases burn risk and filling instability.
Sometimes caused by rust, steel surface breakdown, contamination in micro-pits, or repeated cavity repairs. This is particularly damaging for visible consumer products.
If wear develops in mold alignment or shutoff surfaces, the molded part may begin showing mismatch, burrs, or inconsistent fit—especially in high-volume molds.
This is a simplified comparison for selecting steel in injection molds. Exact performance depends on supplier source, processing route, heat treatment, hardness target, and maintenance practices.
Steel (examples) | Typical role in injection molds | Quality strengths | Typical risks |
|---|---|---|---|
P20 / 718 | General-purpose, medium-volume molds | Easy machining, good balance of cost and usability, acceptable stability | Wears faster with filled resins; lower corrosion protection; surface may pit over time |
H13 | High-volume, high-stress, abrasive resin applications | Strong wear resistance, good thermal fatigue performance, good structural durability | Not as corrosion-resistant as stainless; requires controlled heat treatment |
S136 / 1.2316 (stainless) | High-polish, corrosion-prone, cosmetic molds | Excellent corrosion resistance, strong mirror polish potential, stable cosmetic surface over time | Higher cost, slower machining, careful processing and heat treatment required |
To make steel selection more practical, it helps to understand how common steel families are typically used in injection molds.
These are widely used for general-purpose injection molds because they machine relatively easily and offer a good balance of cost and performance.
They are often suitable for:
medium-volume production
standard consumer parts
non-abrasive resins
projects where extreme polish or corrosion resistance is not required
However, they may not hold up as well in long runs with aggressive materials. Over time, cavity wear, vent wear, and corrosion can reduce quality consistency.
H13 is a common choice for demanding tooling where high cycle count, abrasive materials, or structural stress make durability critical.
It is often selected for:
glass-filled engineering plastics
high-volume production
molds with high stress on cores, slides, and gates
applications where long-term dimensional hold matters
H13’s combination of toughness, hardness potential, and resistance to thermal fatigue makes it useful for many long-life molds. However, because it is not stainless, corrosion control still matters.
These steels are often used when surface finish and corrosion protection are especially important.
They are commonly chosen for:
clear or glossy parts
medical and cosmetic applications
humid storage conditions
corrosive resins or additives
molds that must retain high cosmetic performance over long periods
Their biggest advantage is that good corrosion resistance protects the cavity surface from micro-pitting, which helps preserve gloss, clarity, and vent quality.
Steel grade alone does not determine performance. The final result also depends heavily on hardness level, HRC target, and the quality of heat treatment.
HRC refers to Rockwell hardness, a common way to describe how hard the steel is after treatment. In general:
higher HRC can improve wear resistance
lower HRC can improve machinability and sometimes toughness
the right HRC depends on application, not just “harder is better”
If hardness is too low, shutoffs and gates may wear too quickly. If hardness is too high without adequate toughness, edges may chip or crack.
Even an excellent steel grade can underperform if heat treatment is poorly controlled. Incorrect treatment can lead to:
distortion
internal stress
unstable dimensions
reduced toughness
inconsistent polishing behavior
shortened mold life
That is why steel selection should always be paired with the correct hardness target and a reliable heat-treatment process.
For cosmetic parts, the quality impact of steel choice is even more visible. The steel determines whether the cavity can achieve and maintain a stable high-quality finish.
Better steel for cosmetic molds usually helps with:
gloss retention over long production runs
reduced risk of haze and specking
better polish consistency after repair or maintenance
lower risk of corrosion staining
improved appearance repeatability across cavities
If a part requires premium appearance—especially black gloss, piano finish, transparent lenses, or visible branding surfaces—steel quality should not be treated as a secondary cost item. It is part of the product-quality strategy.
A mold that starts well but deteriorates quickly can create more cost than a better steel choice upfront. In production, tool life and part quality are closely connected.
A stronger steel choice often improves:
long-run stability
maintenance intervals
cavity-to-cavity consistency
process window stability
repeatability across multiple production batches
This is especially important when the mold is expected to:
run for hundreds of thousands or millions of cycles
mold abrasive engineering materials
maintain tight tolerances over time
support multiple production campaigns over years
In many cases, buyers focus on the initial mold price, but the more important question is: How long will the mold continue producing acceptable parts without quality drift?
Surface engineering can improve mold performance, but it should not be used to compensate for the wrong base steel.
Nitriding can increase surface hardness and improve wear behavior on some tooling components. It is useful when surface durability is important, but the result still depends on having an appropriate steel underneath.
PVD coating can improve wear resistance, reduce sticking, and sometimes improve release behavior. It is often used on high-wear or high-friction areas.
EDM is often necessary for complex mold geometry, but EDM surfaces may need additional finishing depending on the application. The steel must still respond well to polishing, texturing, or coating after EDM work.
Neither nitriding nor PVD coating can fully fix poor base steel selection. If the steel has low toughness, poor polishability, weak corrosion resistance, or poor thermal stability, coatings only address part of the problem.
Steel grade is only one side of thermal performance. Cooling design is the other.
Traditional drilled cooling channels work well in many molds, but for difficult geometry or strict warpage control, advanced cooling can make a major difference. That is where conformal cooling becomes relevant.
Conformal cooling follows the shape of the cavity more closely than straight-drilled channels. This improves temperature uniformity, which can lead to:
lower warpage
faster and more even cooling
less shrink variation
better cycle consistency
improved dimensional repeatability
Conformal cooling is often used in combination with advanced tooling strategies and should be considered alongside steel choice, insert design, and production goals. Better thermal control and better steel together usually produce more stable quality than either one alone.
Here are practical decision rules for choosing steel grade more quickly and effectively.
For glass-filled or mineral-filled materials, prioritize strong wear resistance. H13-class steels or similarly durable tool steels are often better choices because they help maintain gate geometry, shutoffs, and surface condition.
Choose steel with strong mirror polish capability, high cleanliness, and stable surface quality. Stainless grades are often preferred when long-term cosmetic performance matters.
When the mold will face humidity, aggressive additives, flame-retardant materials, or frequent cleaning, prioritize strong corrosion resistance. Stainless mold steels are usually worth the added cost.
High-volume molds benefit from stronger long-term dimensional stability, better wear performance, and better resistance to repeated stress. In these cases, steel should be selected for life-cycle quality, not just initial cost.
Look beyond steel alone and evaluate the total thermal system, including insert materials, cooling layout, and whether conformal cooling can improve repeatability.
Treatments such as nitriding and PVD coating can help, but they work best when the base steel is already appropriate for the application.
Upgrading steel grade in injection molds often improves part quality in the following ways:
more consistent surface finish over long runs
less flash drift because shutoffs remain tighter longer
better tolerance repeatability from improved wear behavior and thermal stability
lower defect rates on cosmetic parts
fewer polishing repairs and less rust removal
better vent condition and more stable filling behavior
lower long-term maintenance cost
more predictable mold life
In other words, better steel usually does not just improve “mold durability.” It improves the mold’s ability to keep making good parts consistently.
Not every project needs premium steel. A lower-cost general-purpose steel can still be acceptable when:
production volume is limited
the resin is not abrasive or corrosive
cosmetic requirements are moderate
dimensions are not extremely critical
the mold is not expected to run for very long life
The key is alignment. Problems happen when low-cost steel is used in a high-demand application that actually requires stronger wear, better corrosion resistance, or better polish retention.
When evaluating steel choice for injection molds, buyers should avoid asking only, “What steel is cheapest?” A better question is:
Which steel can maintain the required part quality for the full expected life of this mold?
To answer that, consider:
resin type
filler content
target production volume
appearance requirements
tolerance needs
maintenance expectations
storage environment
whether coatings or advanced cooling will be used
A mold is not only a machining project. It is a long-term production tool. Steel grade should be chosen according to how the tool must perform over time—not only how it is built on day one.
Because injection molds reproduce the cavity surface very accurately. Steel cleanliness, polish response, and resistance to micro-pitting determine whether gloss remains stable or gradually degrades into haze, scratches, or surface specks.
No. Higher HRC can improve wear resistance, but if toughness is insufficient, micro-cracks, chipping, or edge damage may appear. The best choice is the right hardness balance for the application.
Stainless mold steels are especially useful when corrosion risk is high, when the mold will be stored in humid conditions, or when clear/high-gloss parts need long-term stable surface quality.
Usually not. PVD coating and nitriding can improve durability and release behavior, but they cannot fully compensate for poor polishability, low toughness, weak thermal performance, or corrosion-sensitive base steel.
It can. EDM is necessary for many complex features, but EDM surfaces may need polishing or additional finishing depending on the cosmetic requirement. Steel response after EDM is part of the overall quality picture.
Not by itself. Steel can support better thermal stability, but warpage is also strongly influenced by cooling layout, part design, resin behavior, and whether solutions such as conformal cooling are used.
