Key Considerations Before Choosing Multi-Cavity Injection Molding

In the field of plastic product manufacturing, injection molding is an efficient and well-established production method, while Multi-Cavity Injection Molding represents an important advancement based on this process. By designing multiple cavities within a single mold, it allows several parts to be produced in one injection cycle, improving output and reducing cost per unit. Understanding the basic principles, key advantages, and suitable industries for multi-cavity injection molding helps companies determine whether this method fits their projects and lays the foundation for selecting the right mold cavity strategy.

What Is Multi-Cavity Injection Molding

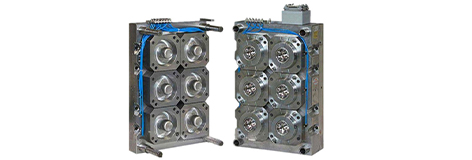

Multi-Cavity Injection Molding refers to an injection molding method where multiple cavities are designed within a single mold, allowing several identical or highly similar parts to be produced in one molding cycle. This approach is well suited for plastic components with consistent dimensions and stable demand. It is commonly used in high-volume production, as it significantly improves overall output while maintaining part consistency.

In Multi-Cavity Injection Molding, molten plastic is evenly distributed to each cavity through the main runner and sub-runner system, completing filling, packing, and cooling at the same time. The key lies in runner balance and precise process control, which ensure uniform flow to all cavities. This helps reduce weight variation and dimensional differences, but also requires more advanced mold design and technical expertise.

Compared with single-cavity molding, multi-cavity molding offers clear advantages in production efficiency and lower cost per part. Although the initial mold investment and setup are more complex, it becomes more economical in long-term, large-scale manufacturing. For projects that prioritize stable lead times and cost control, multi-cavity injection molding is often a more competitive solution.

Why use Multi-Cavity Injection Molding?

Increasing Overall Production

One of the main reasons to use Multi-Cavity Injection Molding is its ability to significantly boost production efficiency. By molding multiple parts simultaneously within a single mold, each injection cycle yields a higher output. This method is especially suitable for projects with large, stable orders, allowing manufacturers to scale up production quickly without increasing the number of machines.

Reducing Unit Manufacturing Costs

Multi-Cavity Injection Molding effectively distributes equipment operation, labor, and energy costs across multiple parts, lowering the cost per unit. Although the initial investment in a multi-cavity mold is higher, the unit cost decreases noticeably as production continues, offering long-term cost advantages and helping companies enhance their price competitiveness.

Improving Lead Time and Production Stability

In high-volume production, multi-cavity injection molding helps shorten overall lead time while maintaining consistent output. Producing multiple parts per cycle reduces the number of cycles and production pressure, making scheduling more controllable. For industries that require stable supply and consistent quality, multi-cavity molding is an efficient and reliable solution.

Consider Part Complexity

Relationship Between Part Complexity and Multi-Cavity Molding

When evaluating whether to use Multi-Cavity Injection Molding, part complexity is a primary factor. Parts with simple structures and uniform wall thickness are easier to mold consistently in multi-cavity molds. In contrast, components with complex geometries and fine details may create variations during filling and cooling, increasing the difficulty of process control.

Impact of Geometry on Molding Balance

Complex geometries directly affect flow balance in Multi-Cavity Injection Molding. Variations in wall thickness, deep features, or thin edges can lead to uneven filling across cavities, resulting in weight or dimensional differences. For this reason, proper runner design and mold flow simulation are essential to achieve uniform material distribution before committing to a multi-cavity solution.

Key Design Considerations at the Design Stage

When designing parts for Multi-Cavity Injection Molding, it is important to simplify structures, reduce sharp corners and complex undercuts, and maintain adequate draft angles. These practices improve mold stability while reducing tooling and maintenance costs. Optimizing part design early in development greatly increases the success rate and feasibility of high-volume multi-cavity production.

Industry Uses for Multi-Cavity Molding

Automotive and Industrial Manufacturing

In the automotive and industrial manufacturing sectors, Multi-Cavity Injection Molding is widely used to produce high-volume plastic components with standardized specifications, such as clips, connectors, caps, and functional brackets. These parts require high consistency and stable delivery. Multi-cavity molding ensures dimensional accuracy while enabling efficient mass production to support long-term supply needs.

Consumer Electronics and Home Appliances

Consumer electronics and home appliance industries are also major users of Multi-Cavity Injection Molding. Typical applications include housings, internal structural parts, and standardized interface components. With fast product cycles and concentrated production volumes, multi-cavity molding helps manufacturers scale output quickly and reduce unit costs, maintaining both price and lead-time advantages in competitive markets.

Medical and Consumer Goods

In the medical and consumer goods industries, multi-cavity molding is commonly applied to disposable items and small plastic parts, such as medical device housings, packaging caps, and daily-use accessories. These products demand strict cleanliness and consistency while being produced in large quantities. Well-designed multi-cavity molds enable stable quality and efficient, continuous high-volume manufacturing.
