How Can Injection Molding Machines Achieve Precision Injection Molding?

Plastic injection molding is widely used to produce everything from household items to automotive and medical parts. While standard molding focuses on creating parts efficiently and in large volumes, precision injection molding takes it a step further—emphasizing accuracy, repeatability, and tight dimensional tolerances. So, how exactly can injection molding machines achieve precision injection molding? The answer lies in the machine’s capabilities, engineering controls, and supporting systems.

What Is Precision Injection Molding?

Precision injection molding refers to a specialized manufacturing process where plastic components are produced with extremely tight tolerances and high dimensional accuracy. This process ensures each molded part is consistent and exact—even across large production runs. It is particularly important in industries like:

• Medical devices

• Aerospace

• Electronics

• Automotive components

Unlike standard injection molding, precision molding tolerates no room for error. Even a variation of ±0.01 mm can render a part unusable in many critical applications.

The key to successful precision injection molding starts with a high-quality plastic injection mold and continues with a machine capable of advanced control, stability, and feedback during every stage of the injection process.

Why Precision Matters

In many modern applications, plastic parts are used in assemblies that require perfect alignment, secure sealing, or electrical insulation. In these scenarios, dimensional consistency and flawless surface finishes are not just beneficial—they’re essential. Precision helps achieve:

• Interchangeability: Parts from different batches still fit together seamlessly.

• Performance: Avoid malfunctions caused by dimensional errors.

• Compliance: Meet industry-specific safety and quality standards.

Key Requirements for Precision Injection Molding

To achieve precision, an injection molding system must meet several critical requirements:

1. Tight Dimensional Tolerances

The process must hold dimensions within extremely small variations, often as tight as ±0.01 mm. This allows parts to meet rigorous performance criteria.

2. High Repeatability

Once a process is established, it must be replicated thousands or millions of times with minimal variation from cycle to cycle.

3. No Warping or Deformation

Parts must retain their shape after cooling, without warping, shrinkage, or internal stress that could lead to failure.

4. Surface Perfection

Precision molding also includes flawless surface finishes—especially important for cosmetic or sealing components.

Machine Features That Enable Precision Injection Molding

Achieving these requirements depends heavily on the injection molding machine itself. Here are the main features that a high-performance machine must have:

1. High-Precision CNC Control

Modern injection molding machines use computer numerical control (CNC) systems to manage movements with extreme accuracy. CNC ensures consistent and exact positioning of all machine components such as:

• Clamping unit

• Injection screw

• Ejection system

With CNC, manufacturers can program precise sequences, maintain cycle time consistency, and reduce human error.

2. Stable and Accurate Injection System

At the heart of the molding machine lies the injection unit. Its job is to melt the resin and inject it into the mold under carefully controlled conditions. For precision:

• The screw movement must be consistent and measurable.

• The injection pressure and speed must be stable.

• The machine must respond quickly to any deviations.

These factors ensure uniform cavity filling and prevent over- or under-packing.

3. Closed-Loop Feedback Control

Modern machines are equipped with closed-loop feedback systems, which constantly monitor variables like:

• Screw position

• Mold cavity pressure

• Injection pressure and velocity

• Melt temperature

Based on sensor input, the system adjusts parameters in real-time, eliminating variation and maintaining product consistency. Closed-loop control is essential in industries where one flawed part can lead to costly recalls or safety issues.

4. Thermal Stability and Mold Temperature Control

Temperature plays a major role in part quality. Inconsistent mold or melt temperatures can cause shrinkage, warping, or sink marks. Precision injection molding machines ensure:

• Stable barrel temperatures with advanced heaters

• High-quality mold temperature controllers (MTC)

• Uniform heat distribution across the mold cavity

By maintaining a consistent thermal profile, the machine helps the plastic injection mold produce uniform parts every cycle.

5. High Clamping Force Accuracy

Clamping force is the pressure used to keep the mold halves closed during injection. It must be strong enough to prevent flashing, but not excessive, as that can damage the mold. Precision machines offer:

• Accurate toggle or hydraulic clamping systems

• Even force distribution

• Real-time force monitoring and adjustment

Consistent clamping force ensures the plastic injection mold closes perfectly every time.

6. Optimized Screw Design

The screw inside the injection unit is responsible for plasticizing the material and feeding it into the mold. Precision molding requires a screw that:

• Minimizes material shear

• Provides uniform mixing

• Ensures consistent melt quality

Custom-designed screws based on the resin type (e.g., PEEK, LCP, PC) play a critical role in achieving dimensional stability.

7. Integrated Monitoring Software

Injection molding machines now come with advanced monitoring and analytics software. This allows operators to:

• Track production metrics in real-time

• Monitor mold wear and machine performance

• Access automated quality control reports

Software integration helps identify problems early, reduce waste, and maintain production quality.

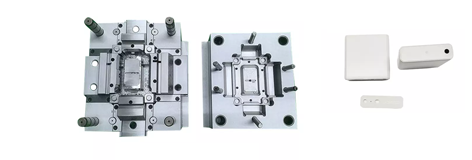

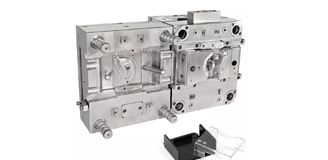

The Role of the Plastic Injection Mold in Precision

While the machine handles movement and pressure, the plastic injection mold is equally important for achieving precision. A high-quality mold will:

• Be made with durable, high-tolerance steel

• Feature precision-machined cavities and cores

• Include proper venting and gating systems

• Provide uniform cooling across all areas

At YEESHINE TECHNOLOGY CO., we combine expertly engineered molds with high-performance machines to deliver industry-leading precision molding solutions.

Examples of Precision Molded Products

Here are a few examples of parts commonly made using precision injection molding:

• Medical parts: Syringe tips, diagnostic housings, surgical connectors

• Electronics: USB casings, LED holders, micro gear housings

• Automotive: Dashboard connectors, sensor housings, interior clips

• Consumer products: Smartphone frames, wearable device enclosures

Each of these applications demands the kind of control and consistency that only precision injection molding can provide.

Conclusion

Precision injection molding is not just a high-end process—it's an essential requirement for modern industries that depend on accuracy, consistency, and efficiency. Achieving this level of quality starts with an advanced injection molding machine equipped with CNC precision, stable injection and clamping systems, real-time feedback, and tight temperature control.

The plastic injection mold itself must also be carefully designed and built to exacting standards. Only when both the machine and mold are optimized can you achieve true precision.

At YEESHINE TECHNOLOGY CO., we combine cutting-edge technology with industry experience to deliver precision plastic injection molding solutions that meet the toughest demands. If you’re aiming to produce flawless components that meet international standards, look no further.

Visit www.yeeshine-tech.com or contact our experts to learn more about our precision molding systems and services. Let YEESHINE help you turn your high-precision project into a production success.
