Cooling Efficiency in Aluminum Molds: A Hidden Advantage in Injection Molding

In the world of injection molding, achieving high efficiency and reducing production costs are two of the most crucial goals for manufacturers. One of the often-overlooked factors that significantly impacts the overall efficiency of the injection molding process is cooling efficiency. Cooling plays a central role in determining the cycle time, quality, and cost-effectiveness of the production process. In recent years, aluminum molds have emerged as a game-changer in improving cooling efficiency, and in turn, optimizing manufacturing operations.

The Importance of Cooling Efficiency in Injection Molding

Cooling is one of the most critical steps in the injection molding process. After the molten material is injected into the mold cavity, it needs to cool and solidify to take the desired shape. This cooling phase plays a huge role in determining the overall production cycle time, as well as the final quality of the molded part.

The faster and more efficiently the mold cools, the quicker the next cycle can begin. Conversely, inefficient cooling can lead to longer cycle times, reduced productivity, and increased production costs. Cooling time also affects the dimensional stability and surface finish of the molded part. If cooling isn’t uniform, it can cause defects such as warping, uneven surfaces, or even cracks.

This is where aluminum molds have a distinct advantage over traditional steel molds. Aluminum is known for its superior thermal conductivity, meaning it can transfer heat much faster than steel. As a result, aluminum molds can cool more rapidly, reducing the time it takes to solidify the injected material and enhancing the overall production speed.

In the following sections, we’ll discuss how cooling efficiency affects the molding process, explore the unique properties of aluminum that contribute to improved cooling, and highlight some design strategies to further optimize cooling in aluminum molds.

How Cooling Efficiency Affects Production

Cooling efficiency directly impacts several factors in the injection molding process, including cycle time, part quality, and cost savings. Let’s break down each of these key areas:

• Cycle Time:
  Cooling accounts for a significant portion of the overall cycle time in injection molding. The faster the mold cools, the shorter the cycle time. Cycle time refers to the total time it takes to complete one production cycle, from injection to ejection of the part. Reducing cycle time is one of the best ways to increase production efficiency and output.

  With aluminum molds, cooling is much faster than with traditional steel molds because of aluminum’s excellent thermal conductivity. As a result, manufacturers can run more cycles in the same amount of time, producing more parts and increasing throughput without needing additional machinery or labor.

• Quality Control:
  In addition to speeding up production, efficient cooling also enhances part quality. When a mold cools uniformly and quickly, it helps maintain dimensional stability and reduces the risk of defects such as warping or shrinkage. Aluminum molds allow for better control of the cooling process, ensuring that the molded part maintains consistent dimensions and high-quality finishes.

  Moreover, fast and efficient cooling in aluminum molds ensures that the material solidifies quickly and uniformly. This prevents thermal gradients (differences in temperature within the mold), which can result in uneven shrinkage and part deformation. A uniform cooling process is essential for producing parts that meet strict tolerance requirements, particularly in industries like automotive, medical devices, and electronics, where precision is key.

• Cost Savings:
  Faster cooling times translate directly into lower energy consumption. Since aluminum molds cool faster, they reduce the time the injection molding machine must be running. This leads to reduced energy costs. Additionally, faster cooling allows for higher productivity without needing to invest in more machinery or labor.

Furthermore, because aluminum molds are lighter and easier to machine than steel molds, manufacturing costs for the molds themselves are lower. As a result, businesses can save on both mold production costs and energy costs, improving their overall profitability.

Aluminum's Thermal Conductivity: How It Enhances Cooling Efficiency

One of the key reasons aluminum molds are so effective in improving cooling efficiency is aluminum's high thermal conductivity. Thermal conductivity refers to a material's ability to conduct heat. The higher the thermal conductivity, the faster heat can be transferred from one part of the material to another.

Aluminum has a much higher thermal conductivity than steel, which means it can transfer heat away from the molten material much more quickly. This is a significant advantage during the cooling phase of injection molding, as it allows the molten material inside the mold cavity to solidify faster. Faster cooling means reduced cycle times, which results in higher productivity and reduced costs.

The faster cooling process also reduces the need for temperature control systems in the molding process. While steel molds may require additional cooling systems such as water lines or cooling channels to manage heat transfer, aluminum molds naturally dissipate heat more effectively, minimizing the need for complex cooling systems. This simplifies the overall design and reduces operational costs.

Additionally, aluminum molds are better at maintaining consistent cooling temperatures across the entire mold. Since aluminum has uniform thermal conductivity, the mold's surface temperature remains more stable throughout the cooling phase, further improving the overall efficiency of the molding process.

Optimizing Cooling Channels in Aluminum Molds

While aluminum molds naturally provide better cooling efficiency, manufacturers can further enhance this by optimizing the cooling channels within the mold design. Cooling channels are strategically placed within the mold to allow coolant (usually water) to flow through and absorb heat from the mold, speeding up the cooling process.

There are several ways to optimize cooling channels in aluminum molds:

• Optimized Channel Design:
  The layout of the cooling channels is critical to ensuring efficient heat dissipation. The cooling channels should be placed as close to the molded part as possible to maximize heat transfer. Additionally, the channels should be designed in a way that promotes uniform cooling across the entire part to prevent defects such as warping or uneven shrinkage.

• Improved Flow Patterns:

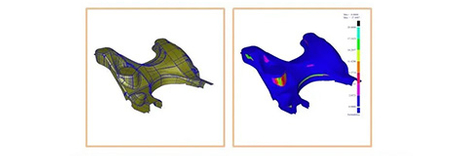

  Efficient coolant flow is essential for achieving fast cooling. The flow of coolant should be evenly distributed throughout the mold. Uneven coolant flow can result in some areas of the mold cooling faster than others, causing thermal gradients and part deformation. Using simulation software to design and test cooling channel patterns can help optimize coolant flow for maximum efficiency.






• Multi-Stage Cooling:
  In some cases, manufacturers may implement multi-stage cooling, where different sections of the mold are cooled at different rates to improve part quality and reduce cycle time. For example, the core of the mold may cool more slowly, while the cavity cools faster. This approach allows for better control over the molding process and can improve the final product's finish and precision.

• Use of Baffles and Inserts:
  In certain molds, baffles or insert elements can be incorporated into the cooling channels to direct the flow of coolant more efficiently. These tools can help ensure that the coolant moves smoothly through the channels, further optimizing heat transfer and reducing cooling time.







Conclusion:

In conclusion, cooling efficiency is a critical factor in the success of the injection molding process, and aluminum molds offer significant advantages in this area. Due to their excellent thermal conductivity, aluminum molds can dissipate heat more quickly than steel molds, leading to faster cooling, shorter cycle times, and higher production efficiency.

By reducing cooling times, aluminum molds not only help manufacturers improve productivity but also reduce energy consumption, enhance part quality, and lower overall costs. Additionally, the ability to optimize cooling channels further improves cooling efficiency and ensures uniform heat distribution, which is essential for producing high-quality parts.

For manufacturers looking to improve their injection molding processes, aluminum molds offer a cost-effective, high-performance solution. Whether you're producing high-precision automotive components, medical devices, or consumer electronics, aluminum molds provide the cooling efficiency needed to meet modern production demands. If you're interested in exploring how YEESHINE TECHNOLOGY CO. can help you optimize your molding processes with aluminum molds, visit www.yeeshine-tech.com or get in touch with their team of experts for tailored solutions.
