Surface finish can directly affect how a CNC machined part looks, fits, seals, slides, wears, and performs in an assembly. A surface that is perfectly acceptable on an external bracket may be unsuitable for a sealing face, bearing seat, precision sliding component, or highly visible product enclosure.
Among the different ways of describing surface texture, Ra is one of the most widely used values on CNC machining drawings. A lower Ra generally represents a smoother surface, but specifying the lowest possible number is rarely the best engineering decision.
Choosing the right CNC machining surface finish means balancing function, material, machining process, appearance, inspection requirements, cost, and lead time. Engineers should specify fine finishes only where they create measurable value.
YEESHINE TECHNOLOGY CO., LIMITED provides CNC Machining, CNC turning, 5-axis machining, rapid prototyping, and multiple surface-treatment options for custom metal and plastic components.
Ra stands for arithmetic average surface roughness. It represents the average absolute deviation of a measured surface profile from its mean line over a specified sampling length.
In practical terms, Ra provides a numerical way to describe how rough or smooth a machined surface is.
A higher Ra value indicates a rougher surface with larger average height variations. A lower Ra value indicates a smoother surface with smaller variations.
Surface roughness is commonly expressed in:
Micrometers: μm
Microinches: μin
For reference:
Ra in μm | Approx. Ra in μin | General Surface Character |
|---|---|---|
12.5 | 500 | Relatively rough machined surface |
6.3 | 250 | Coarse machining |
3.2 | 125 | Common general machined finish |
1.6 | 63 | Fine general machining |
0.8 | 32 | Fine precision surface |
0.4 | 16 | Very fine surface |
0.2 | 8 | Highly refined surface |
These values should be treated as practical reference levels rather than universal application rules.
A bearing surface, for example, may require a different finish depending on lubrication, speed, load, material, and mating component. Likewise, a sealing face may need more than a specific Ra value because flatness, waviness, lay direction, and surface defects can also influence leakage.
It is easy to assume that smoother is always better.
In reality, unnecessarily fine finishes can increase manufacturing cost without improving function.
Achieving a lower Ra may require:
Smaller finishing cuts
Reduced feed rates
Higher spindle speeds
New cutting tools
Additional machining passes
Grinding
Honing
Lapping
Polishing
More inspection
Each extra operation adds machine time, labor, tool wear, or outside processing.
The correct objective is therefore to specify the roughest surface that still performs the required function reliably.
Two surfaces can have the same Ra while looking and behaving differently.
Ra averages profile deviations, so it does not fully describe deep isolated scratches, machining direction, peak shape, waviness, or surface pattern.
For critical applications, drawings may also control parameters such as Rz, flatness, perpendicularity, or lay direction.
A functional seal face, for example, may require both low roughness and appropriate flatness. Specifying only Ra 0.8 μm does not guarantee that the complete sealing geometry will perform correctly.
Many commercial CNC parts do not need polishing or grinding.
Modern milling and turning can produce relatively smooth surfaces directly when tooling, machine rigidity, feeds, speeds, and workholding are properly controlled.
For many general parts, Ra 3.2 μm or Ra 1.6 μm can provide an effective balance between manufacturing efficiency and surface quality.
Ra 6.3 μm is a relatively coarse machined finish.
It may be suitable for surfaces where appearance and friction are not important, including:
Hidden structural faces
Rough-machined areas
Non-contact surfaces
Fixtures
Equipment bases
Internal relief areas
This finish can often be produced efficiently because the manufacturer does not need extensive finishing passes.
However, visible tool marks are likely.
It is usually unsuitable for precision sliding surfaces, fine sealing faces, or premium cosmetic parts without additional finishing.
Ra 3.2 μm is one of the most common practical specifications for general CNC machining.
It can work well for:
Machine brackets
General housings
Mounting plates
Non-critical mating surfaces
Industrial equipment components
Functional prototypes
The surface can still show machining patterns, but it is generally smooth enough for many engineering applications.
When a drawing does not require a specialized functional finish, specifying a standard machined surface rather than an unnecessarily fine Ra can help control cost.
Ra 1.6 μm represents a finer machining level.
It is often selected where the engineer needs improved appearance, better contact behavior, or a more controlled mating surface.
Possible applications include:
Precision housings
Better-quality visible machined faces
Assembly surfaces
Selected bearing or locating surfaces
Components requiring anodizing or other decorative finishing
Achieving Ra 1.6 μm consistently may require a dedicated finishing toolpath rather than relying only on rough machining.
For many precision components, this represents a practical balance between performance and machining cost.
Ra 0.8 μm is a noticeably finer finish and often requires more controlled machining.
It may be used for:
Precision sliding surfaces
Selected sealing surfaces
Shaft contact areas
Bearing-related features
Mold components
High-quality visible surfaces
The exact process depends on material and geometry.
A CNC lathe may produce a fine cylindrical finish directly under suitable cutting conditions, while a milled surface may require additional finishing, grinding, or polishing to reach the same quality consistently.
At this level, engineers should ask whether the functional benefit justifies the added manufacturing time.
Ra 0.4 μm or lower should normally be reserved for surfaces with a genuine functional or optical requirement.
Potential examples include:
Precision sealing interfaces
Fine hydraulic components
High-performance sliding surfaces
Mold polishing
Measurement components
Specialized medical or optical parts
Standard milling alone may not always be the most efficient way to reach these values.
Grinding, honing, lapping, superfinishing, or polishing may be required depending on part geometry.
This is where surface finish can become a significant contributor to both price and lead time.
The most reliable method is to begin with what the surface actually does.
Instead of applying one Ra requirement to the complete component, engineers should identify which surfaces are critical and allow standard machining on the rest.
Surface Function | Practical Starting Range | Main Consideration |
|---|---|---|
Hidden / Non-Critical Surface | Ra 3.2–6.3 μm | Cost and machining speed |
General Machined Surface | Ra 1.6–3.2 μm | Appearance and dimensional control |
Cosmetic Machined Surface | Ra 0.8–1.6 μm | Visible tool marks |
Sliding / Contact Surface | Ra 0.4–1.6 μm | Friction and wear |
Sealing Surface | Ra 0.4–1.6 μm* | Leakage and gasket type |
Bearing / Shaft Surface | Ra 0.2–0.8 μm* | Wear, lubrication and fit |
Polished Mold Surface | Application specific | Final molded appearance |
*Actual requirements should be determined from the complete mechanical system rather than this table alone.
Brackets, plates, machine mounts, covers, and internal structural components often do not need ultra-smooth surfaces.
A standard as-machined finish may already satisfy functional requirements.
Specifying Ra 0.8 μm on every surface of a structural bracket could dramatically increase machining time while providing no meaningful improvement in performance.
For these components, drawing notes should distinguish between critical mating faces and ordinary external surfaces.
Surfaces that slide against another component need more careful consideration.
Excessive roughness can increase friction, accelerate wear, damage seals, or disrupt lubrication.
However, an extremely smooth surface is not always ideal either. In some lubricated systems, a controlled surface texture helps retain lubricant.
The correct Ra therefore depends on:
Sliding speed
Load
Lubrication
Mating material
Required service life
Operating temperature
Engineering specifications should consider the complete tribological system rather than selecting the lowest available Ra.
Sealing surfaces often require tighter finish control because surface valleys can create leakage paths.
However, different seals tolerate different roughness.
An elastomeric O-ring can conform to more surface variation than certain metal-to-metal sealing interfaces.
Gasket material, pressure, fluid viscosity, temperature, and sealing direction all affect the required finish.
For critical seals, flatness and machining lay may matter as much as average roughness.
The drawing should therefore specify the relevant functional requirements instead of relying on Ra alone.
Shafts, bearing seats, and rotating interfaces can require fine surfaces to reduce wear and maintain consistent contact.
CNC turning can often produce better cylindrical surface quality than milling because the cutting action generates a continuous helical pattern around the rotating part.
For highly demanding shafts, grinding may be used after turning to achieve tighter dimensional and surface specifications.
Engineers should coordinate roughness with diameter tolerance, roundness, cylindricity, and fit class.
A perfectly smooth shaft that is outside dimensional tolerance still does not create a correct bearing fit.
Ra is not determined only by the drawing.
The machining process itself has a major effect on the final surface.
Tool geometry, feed per tooth, spindle speed, depth of cut, rigidity, cutter runout, tool wear, coolant, vibration, and material all contribute to the surface texture.
Milling uses a rotating multi-edge cutter.
Each cutting edge leaves a small scallop or tool pattern on the workpiece. Increasing feed generally increases the spacing and height of these marks, while a finishing pass with suitable cutting parameters can reduce them.
Fine milling surfaces depend on:
Sharp cutting tools
Low runout
Stable fixturing
Correct spindle speed
Appropriate finishing feed
Small final depth of cut
Machine rigidity
Good chip evacuation
Large flat surfaces can be especially sensitive to cutter setup because tool tilt, insert mismatch, or machine geometry can create visible patterns.
For cosmetic components, the direction and consistency of milling marks may also matter even if Ra is technically acceptable.
Turning creates surfaces by moving a cutting tool along a rotating workpiece.
Surface roughness is strongly influenced by feed rate and tool nose radius.
Lower finishing feeds and appropriate nose radii can produce smooth cylindrical surfaces, but pushing these parameters too far can increase rubbing, vibration, or built-up edge.
Turning is especially suitable for:
Shafts
Bushings
Pins
Cylindrical housings
Bearing features
Rotational components
YEESHINE provides both CNC milling and CNC machining/turning capabilities, allowing the manufacturing process to be selected according to part geometry and surface requirements.
Complex freeform surfaces may require 5-axis machining to keep the cutting tool at a favorable angle as it moves across the part.
This can reduce the number of setups and help maintain consistent tool engagement on curved geometry.
However, achieving a very fine finish on a large sculpted surface can still require closely spaced toolpaths and long machining time.
YEESHINE's Prototype 5 Axis Precision Machining Services support complex prototype and precision machining applications where access, geometry, and surface quality need to be controlled together.
Different materials respond differently to cutting.
A machining parameter that produces an excellent surface on aluminum may not produce the same Ra on stainless steel, copper, POM, or acrylic.
Aluminum is generally easy to machine and can achieve attractive fine surfaces with sharp tooling.
However, soft grades can form built-up edge on cutting tools, especially if cutting conditions are poor.
This transferred aluminum can damage surface quality and create inconsistent marks.
Polishing, bead blasting, anodizing, or brushing may be added when the final component has cosmetic requirements.
Stainless steel requires more cutting force and can work-harden if tools rub instead of cutting cleanly.
Worn tools, inadequate coolant, or poor feeds and speeds can quickly reduce surface quality.
Achieving a fine Ra may therefore require slower finishing passes and high-quality tooling.
If the component will later be polished or electropolished, the as-machined roughness can also affect how much finishing work is required.
Copper can be difficult to finish cleanly because softer grades may smear or develop built-up edge.

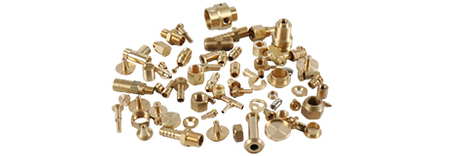

Brass generally machines more easily and can produce high-quality surfaces.
For electrical contacts or decorative components, engineers may also specify polishing or plating after CNC machining.
POM, nylon, ABS, PC, acrylic, PEEK, and other engineering plastics all respond differently.
Plastic components can experience:
Heat buildup
Smearing
Burrs
Stress
Melting
Surface whitening
Tool marks
Sharp tools and controlled cutting temperatures are particularly important.
Transparent acrylic or polycarbonate parts may require polishing if optical clarity is expected because a low Ra value alone does not automatically produce optical transparency.
YEESHINE's CNC and rapid prototyping capabilities include both metal and engineering plastic materials for functional and appearance prototypes.
Ra and surface treatment should not be confused.
Ra describes the texture of a surface, while treatments such as anodizing, powder coating, plating, bead blasting, or painting change surface properties or appearance after machining.
Bead blasting creates a uniform matte texture by impacting the component with fine media.
It can remove the directional appearance of milling marks and create a more consistent cosmetic surface.
However, bead blasting generally does not create an extremely low Ra surface.
Its purpose is usually appearance consistency rather than precision smoothing.
This makes it common before anodizing aluminum housings and consumer products.

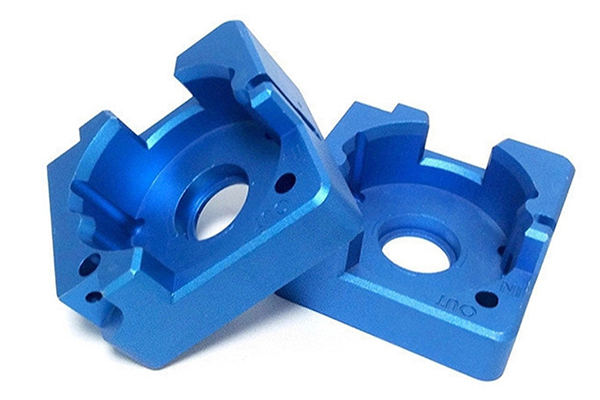

Anodizing creates a protective oxide layer on aluminum.
It can improve corrosion and wear resistance while allowing different colors.
Anodizing follows the underlying surface texture rather than completely hiding it.
Visible machining marks can therefore remain visible after anodizing unless the surface is machined, polished, brushed, or blasted appropriately beforehand.
Polishing removes very small surface irregularities and can substantially reduce surface roughness.
It may be used for:
Decorative stainless steel
Mold components
Optical-style surfaces
Medical parts
High-quality aluminum components
Manual polishing adds labor and may affect dimensions around edges or small features, so critical tolerances should be considered before finishing.
Nickel plating, chrome plating, zinc plating, powder coating, and paint add another layer to the component.
The final surface behavior then depends on both the machined substrate and the coating.
YEESHINE lists polishing, anodizing, powder coating, plating, brushing, sandblasting, painting, zinc plating, and nickel plating among the available finishing options for CNC machined parts.
Tip: Specify both the required Ra before coating and the final surface treatment when dimensional or functional performance depends on the substrate condition.
A finer finish normally takes more production time.
The reason is not the numerical roughness specification itself, but the manufacturing changes required to achieve it consistently.
Moving from Ra 3.2 μm to Ra 1.6 μm may require an additional finishing toolpath.
Moving toward Ra 0.8 μm or 0.4 μm may require substantially more controlled machining or a secondary finishing process.
Cost can increase through:
Longer CNC cycle time
Slower finishing feed
More tool changes
More expensive cutting tools
Additional machine setups
Grinding
Honing
Polishing
Lapping
Additional inspection
Higher scrap risk
This relationship is why both Xometry and Protolabs advise against specifying unnecessarily fine surface finishes across an entire component.
A precision housing may have ten machined surfaces but only one shaft bore and one gasket face that require a fine finish.
Instead of specifying Ra 0.8 μm everywhere, an engineer could apply it only to those two functional surfaces and allow a standard machined finish elsewhere.
This can significantly reduce machining time while preserving part performance.
The drawing becomes more meaningful because the manufacturer immediately understands which surfaces are critical.
Ra 0.8 μm on an accessible external face is easier to produce than the same finish at the bottom of a narrow deep pocket.
Tool access, cutter length, rigidity, internal corners, part size, and workholding all influence manufacturability.
Complex 5-axis surfaces may require very dense finishing toolpaths to eliminate scallops.
This can turn surface finish into one of the largest cycle-time drivers on a precision component.
Fine surfaces can also lengthen production beyond the actual cutting operation.
If grinding, polishing, anodizing, or plating is required, parts may need to move through additional workstations and inspection steps.
A standard as-machined component can often proceed directly from machining to deburring and inspection.
A highly finished component may require:
Rough machining.
Semi-finishing.
Finish machining.
Grinding or polishing.
Surface treatment.
Cleaning.
Final dimensional inspection.
Surface roughness inspection.
Each additional stage introduces handling and scheduling.
For prototypes or urgent production, engineers should therefore decide whether the finest finish is needed immediately.
A functional prototype used only for assembly testing may not require the same finish as the final production part.
Surface roughness is commonly verified with a profilometer.
The instrument traces the surface and calculates roughness parameters from the measured profile.
Measurement direction matters because CNC machining often creates a directional lay.
A measurement taken parallel to machining marks can produce different results from a measurement taken perpendicular to them.
Critical drawings should therefore follow an appropriate surface-finish standard and clearly identify controlled surfaces.
Visual inspection alone is not sufficient when a numerical Ra requirement is specified.
Clear drawings reduce quotation uncertainty and prevent unnecessary machining.
Instead of applying one roughness requirement to every face, identify the exact functional surfaces that require control.
A practical drawing should define:
Required Ra
Surface location
Dimensional tolerance
Material
Surface treatment
Critical flatness or geometry
Whether the finish applies before or after coating
Any required machining lay
Inspection requirements
For example, a drawing might specify:
General machined surfaces: Ra 3.2 μm
Bearing bore: Ra 0.8 μm
Gasket face: Ra 1.6 μm
Remaining non-machined surfaces: no specific Ra
This is far more useful than calling out Ra 0.8 μm across the entire part.
Terms such as “smooth,” “fine,” “mirror,” or “premium finish” are subjective.
Two people may interpret them differently.
If the requirement is functional, specify a measurable Ra value.
If the requirement is cosmetic, provide:
Finish sample
Texture standard
Anodizing requirement
Brushing direction
Polishing level
Some cosmetic surfaces require visual uniformity rather than an extremely low Ra.
A consistent brushed finish, for example, may deliberately have visible texture.
An accurate CNC quotation depends on more than the 3D model.
If surface finish affects part function, the manufacturer should receive that information before machining strategy and pricing are finalized.
Useful project data includes:
3D CAD file
2D engineering drawing
Material
Required quantity
General Ra requirement
Critical local Ra requirements
Dimensional tolerances
Flatness requirements
Surface-treatment requirements
Cosmetic surfaces
Functional surfaces
Inspection method
Prototype or production use
For precision components, identifying the purpose of a surface can also help the machining supplier evaluate manufacturability.
A supplier may recommend a different machining or finishing process if Ra 0.4 μm is required on a long internal bore compared with a flat external sealing face.
YEESHINE TECHNOLOGY CO., LIMITED provides CNC machining for aluminum, stainless steel, steel, brass, copper, and engineering plastics, together with polishing, anodizing, coating, plating, brushing, and sandblasting options. Buyers can review the company's CNC Machining capabilities when preparing precision prototype or production-part specifications.
The right CNC machining surface finish is not the lowest Ra value a supplier can manufacture. It is the roughness level that allows the part to perform correctly without adding unnecessary machining and finishing cost.
Ra 3.2 μm is commonly suitable for many general machined surfaces. Ra 1.6 μm provides a finer finish for more demanding engineering and visible components, while Ra 0.8 μm and below are generally better reserved for functional surfaces such as selected bearing, sliding, sealing, or precision interfaces.
The final choice should consider material, machining method, component geometry, friction, lubrication, sealing, appearance, dimensional tolerance, and post-processing.
Engineers should also remember that Ra describes only average roughness. Flatness, waviness, scratches, lay direction, and dimensional accuracy may be equally important in precision applications.
The most cost-effective drawing therefore applies fine surface-finish requirements only where they influence part performance.
YEESHINE TECHNOLOGY CO., LIMITED provides CNC Machining, CNC turning, 5-axis machining, rapid prototyping, and a range of post-processing services for precision custom parts. Surface roughness, tolerance, material, geometry, and finishing requirements can be evaluated together before production to develop a more practical machining strategy.
A: Ra is the arithmetic average surface roughness measured across a defined surface profile. A lower Ra value generally indicates a smoother machined surface.
A: Ra 3.2 μm is a common general-purpose machined finish, while Ra 1.6 μm is often selected for finer precision or appearance requirements. Actual capability depends on process, material, and geometry.
A: Ra 1.6 μm is smoother, but it is not automatically better. If Ra 3.2 μm already meets the functional requirement, specifying Ra 1.6 μm may only increase machining time and cost.
A: Ra 0.8 μm may be appropriate for selected sliding, bearing, sealing, precision mating, or high-quality visible surfaces. The exact requirement should reflect the complete mechanical system.
A: Usually yes. Lower Ra values may require slower finishing passes, additional machining, grinding, polishing, specialized tooling, or more inspection.
A: No. Ra measures surface roughness. Anodizing, polishing, bead blasting, plating, brushing, and powder coating are separate finishing processes that modify appearance or surface properties.
A: Bead blasting mainly creates a uniform matte texture rather than an extremely smooth precision surface. It is commonly used for appearance consistency rather than low-Ra functional surfaces.
A: Apply Ra requirements to the specific surfaces that need them, and include material, dimensional tolerance, surface treatment, and any related flatness or inspection requirements.
