10 Common Injection Mold Defects And How To Fix Them

Injection mold manufacturing plays a vital role in modern mass production. Whether it’s automotive, medical, or consumer goods, molding precision is critical. However, defects can reduce part quality, increase costs, and delay timelines. This article explores the 10 most common injection mold defects and gives detailed fixes to help manufacturers reduce waste and enhance product performance.

What Is an Injection Mold Defect?

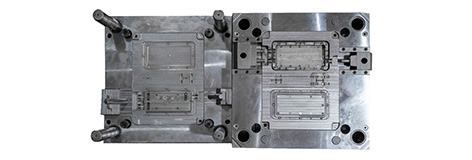

An injection mold defect refers to any imperfection that appears on the molded part. These flaws can occur due to incorrect processing conditions, poor mold design, or material issues. Injection molding defects often reflect problems in temperature, pressure, or material flow. Correcting them early improves productivity and part performance.

Let’s explore 10 frequent defects and how to fix them using expert techniques and design for manufacturing (DFM) principles.

Flow Lines

Flow lines are visible streaks or lines that form on the surface of a molded part. These lines usually follow the path of the molten plastic inside the mold cavity.

Why Flow Lines Occur

• Slow injection speed or low pressure

• Inconsistent mold temperature

• Improper gate location or gate size

How to Fix Flow Lines

Sink Marks

Sink marks are small depressions or dimples that appear on thicker parts of the mold. They’re caused by uneven cooling or shrinkage.

What Causes Sink Marks

• Thick wall sections

• Inadequate packing pressure

• Low cooling time

Fixing Sink Marks

• Reduce wall thickness

• Increase holding pressure

• Use uniform cooling channels to regulate temperature

Surface Delamination

Surface delamination happens when thin layers peel away from the part’s surface. This defect affects both appearance and structural strength.

Causes

• Contaminated material

• Excess moisture

• Improper mold temperature

Remedies

Weld Lines (Knit Lines)

Weld lines (also known as knit lines) appear where two flow fronts meet but don’t bond completely. These lines weaken the molded part structurally.

Causes

• Low melt temperature

• Slow injection speed

• Complex part geometry

Solutions

• Increase melt temperature

• Modify gate location

• Use venting to avoid trapped air

Short Shots

A short shot is when the mold cavity doesn’t fill completely. The part is incomplete or missing sections.

Causes

• Low injection pressure

• Viscous material

• Undersized sprue or gate

How to Fix Short Shots

• Raise injection pressure and speed

• Use larger gates/sprues

• Increase melt temperature for better flow

Warping

Warping causes parts to twist or bend as they cool unevenly. It affects dimensional accuracy.

Common Causes

• Uneven cooling

• Inconsistent wall thickness

• Crystalline material behavior

Fixing Warping

Jetting

Jetting creates snake-like flow marks due to fast material entry into cooler mold areas.

Reasons Behind Jetting

• Very high injection speed

• Improper gate design

Fix Jetting

• Decrease injection speed

• Redesign gate angle and size

• Raise melt temperature

Vacuum Voids

Vacuum voids are trapped air bubbles inside the molded part, which reduce strength and aesthetic value.

Why Voids Happen

• Incomplete mold filling

• Trapped gas or air

• Low holding pressure

Solutions

• Increase holding pressure

• Use venting systems

• Rebalance mold design for even flow

Discoloration

Discoloration refers to inconsistent or unintended color differences in parts.

Main Causes

• Overheating material

• Contaminated hopper

• Improper purging

How to Fix It

• Clean hopper and barrel

• Optimize melt temperature

• Use consistent colorants

Flash

Flash is the extra thin layer of plastic found along mold parting lines. It ruins the part’s dimensions and appearance.

Causes

• Mold not clamping tightly

• Overfilled cavity

• Worn mold components

Flash Solutions

• Repair or replace mold

• Lower injection pressure

• Tighten clamp force settings

Comparison Table: Common Defects and Solutions

Advanced Quality Control in Injection Mold Manufacturing

Modern injection mold processes use advanced quality control systems. These include:

• Real-time temperature sensors

• Automated pressure monitoring

• Machine learning algorithms for defect prediction

By analyzing data trends, factories can predict and prevent molding defects before they appear.

Material Selection's Role in Defect Prevention

Choosing the right resin is critical. Certain materials are prone to warping, shrinkage, or discoloration.

Common Resin Comparison

Pro Tip: Always match the resin with mold design and processing conditions.

How DFM Helps Eliminate Defects

DFM (Design for Manufacturing) improves part quality from the beginning. It minimizes risk by optimizing geometry, draft angles, and wall thickness. A DFM analysis usually reviews:

• Flow simulation

• Cooling time predictions

• Shrinkage control

This proactive step cuts defect rates by up to 40%, improving yield and saving costs.

Trend: Smart Molding and Defect Prediction

New technologies in Industry 4.0 focus on:

• Smart molds with IoT sensors

• Predictive maintenance using AI

• Simulation software for mold filling

These trends show how injection mold defects are no longer just reactive problems—they’re becoming predictable and preventable with the right tools.

Key Takeaways

• Defects like flash, sink marks, and short shots can be fixed using simple yet powerful techniques.

• Implementing DFM, selecting the right material, and maintaining consistent processing parameters reduces error rates.

• Future-focused solutions like AI, sensors, and real-time monitoring will dominate the defect prevention space.

Understanding and addressing these 10 common injection mold defects empowers engineers and plant managers to produce better parts with less waste. Improve your process today by identifying early signs, selecting better materials, and relying on expert analysis for injection mold optimization.
