How long does it take to make an injection mold?

The manufacturing time for injection molds varies depending on a number of factors and usually takes from a few weeks to a few months. Injection mold manufacturing time is influenced by factors such as the complexity of the mold, its size, design requirements, and material selection. Simple molds, often single-cavity and structurally basic, can be completed in 4 to 5 weeks using modern machining equipment like CNC and EDM. Complex molds, such as those with multi-cavities, precision structures, and contoured runner designs, require longer manufacturing times due to increased processing steps and potential mold trials and adjustments. Additionally, using H13 high-hardness steel extends processing time due to the need for finer machining and heat treatment. Furthermore, processing technology, manufacturing equipment sophistication, and factory production scheduling also influence injection mold manufacturing time. Reasonable production planning and efficient manufacturing processes can shorten the cycle time and improve production efficiency.

The Process of Making an Injection Mold

The injection mold process involves a number of key steps to ensure the accuracy and durability of the mold. First, the mold is designed based on product requirements, determining the structure, dimensions, and cooling system. Next, material selection and machining are performed, using CNC machining, EDM, and other technologies to manufacture the core components of the mold. Then, assembly and debugging are carried out; standard components, such as guide pins and springs, are installed, and trial runs are conducted to verify part fit and production performance. Finally, surface treatment and optimization adjustments are completed to ensure that the mold meets production requirements and improves productivity and service life.

Process Analysis of Plastic Products

• Plastic Product Analysis

During the Plastic Product Analysis stage, engineers need to evaluate the dimensional accuracy, wall thickness uniformity, structural strength, and operating environment of the product to ensure that the final product meets functional and quality requirements. Material properties, including heat and impact resistance and shrinkage, are also considered to optimize the design solution. This analysis helps to reduce production defects such as warpage, shrink marks, or weld marks, and improves the efficiency of mold making and product consistency.

• Steps to Create an Injection Mold

Manufacturing an injection mold typically involves several key steps. Firstly, based on the results of the product analysis, a proper mold structure is designed, taking into account gate locations, cooling systems, and release mechanisms. Next, during the mold machining stage, the mold components are precisely manufactured using CNC machining, electrical discharge machining (EDM), and other processes, and then polished and assembled. Finally, mold testing is carried out to adjust the mold parameters to optimize the molding quality and to ensure that the dimensional accuracy and surface quality of the final product meet the requirements.

Mould Structure Design

Mold Structure Design is the key link to ensure the quality of plastic products and production efficiency. It must adhere to Injection Mold Design Principles. A well-designed mold structure should exhibit good strength, wear resistance, and precision, and optimize the runner, gate, venting, and cooling systems to ensure uniform filling, rapid cooling, and smooth ejection. Scientific design minimizes defects such as warpage, sink marks, and weld lines, enhancing molding stability. Employing mold materials with high thermal conductivity and durability extends mold life, reduces maintenance costs, and boosts overall productivity.

Determine the Mold Material and Select Standard Parts

Mold material selection and standard mold component selection are essential to improve mold life and productivity. Mold materials should be selected based on product requirements, production volume, and cost. Common materials include: P20, suitable for PP/ABS common plastics in small to medium-sized batch production; and H13, due to its high heat and wear resistance, suitable for PC/PEEK high-temperature plastics in mass production. Additionally, nitriding or chrome-plating the mold material surface can further enhance wear resistance.

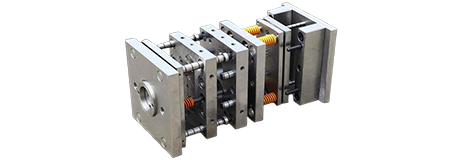

Furthermore, selecting appropriate standard mold components, such as guide pins, springs, and cooling systems, is crucial. Purchasing standard mold bases reduces non-standard part design and processing time, shortening the production cycle. In mass production, standard parts are more cost-effective than custom parts and are easier to replace, minimizing downtime. For example, low-complexity molds often utilize P20 steel and standard mold bases.

Parts Processing and Mold Assembly

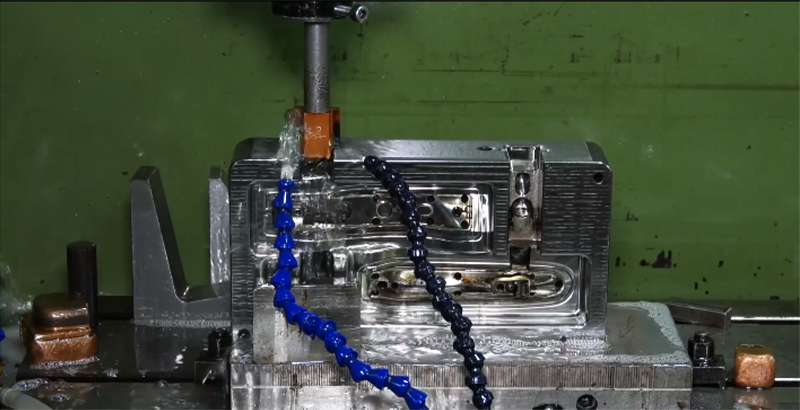

Mold parts processing and mold assembly are key to ensuring mold quality and accuracy. First, the core parts of the mold are precisely machined using CNC milling, turning, grinding, and EDM processes to ensure accurate dimensions. Subsequently, the machined parts are heat-treated by quenching and tempering to improve hardness and wear resistance. During mold assembly, engineers meticulously assemble components such as cores, cavities, guiding mechanisms, and cooling systems, and perform debugging using red pigment to check the parting line and clamping gap. Finally, the performance of the mold is tested through trial runs to ensure its stability and productivity.

Mold Trial

Mold trials are an important part of mold manufacturing, used to verify mold design and production processes, parameter adjustments, and defect checks. During mold trials, first, the mold is installed and the parameters of the injection molding machine are adjusted, such as barrel temperature, mold temperature, injection pressure, holding pressure, and injection speed. Then, trial runs are conducted to observe the molding quality of the plastic products and check for defects such as flash, shrinkage, bubbles, weld lines, warpage, and other defects. If defects are found, the mold structure or process parameters need to be adjusted, and this process requires several adjustments. Trial runs may involve 3-5 cycles, each time adjusting different parameters, using mold flow analysis software to aid optimization. Successful trial runs ensure stable mass production, improve product quality, and reduce subsequent maintenance and adjustment costs.

Summary of Factors Affecting Mold Manufacturing Time

There are many factors affecting plastic injection mold manufacturing duration, including design complexity, material selection, processing technology, and production scheduling. For example, the design complexity of multi-cavity, slider, and special cooling systems increases the time, as do other design factors, such as the complexity of the parting surface or the design of the venting system. Material selection includes pre-hardened and corrosion-resistant steels in addition to the P20 and H13 steels mentioned above, as well as differences in heat treatment times. Machining process factors include the influence of different stages of CNC, EDM, and polishing, such as the time difference between roughing and finishing, or the need for multiple EDM operations. In terms of production scheduling, in addition to the factory's production plan, considerations include material or standard part lead times.
