What Is The Cycle Time of Injection Molding?

In practice, the injection molding cycle refers to the total time required to complete an injection molding process, which usually includes the following phases: mold closing, injection filling, pressure holding, cooling, mold opening, and mold release. Each stage has a significant impact on molding efficiency and product quality. Shortening the cycle time can improve productivity, but too fast may lead to insufficient cooling, uneven shrinkage or deformation of the product and affect the accuracy, and too early demolding may lead to warpage or ejection deformation due to residual stress. Therefore, balancing cycle time and product quality is the key to optimizing the injection molding process.

Reduction Techniques of Injection Molding Cycle Time

Shortening injection molding cycle time can significantly improve productivity and reduce costs. Common methods include optimizing the cooling system, which can significantly shorten cooling time. However, cooling efficiency must be balanced with temperature uniformity to prevent local temperature differences that cause product warpage. Using a high-speed injection molding machine to accelerate injection and clamping speeds requires matching the clamping force. High-speed and high-pressure injection can lead to mold flash, and material compatibility must be considered as excessive injection speeds may generate excessive shear heat. Improving mold design, such as using hot runners, can reduce filling resistance. Selecting materials with better flow characteristics, based on product requirements, can reduce injection pressure and time.

Mold Design Optimization

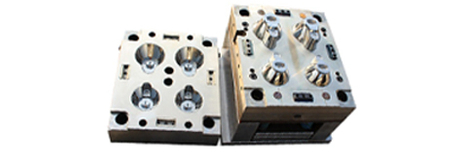

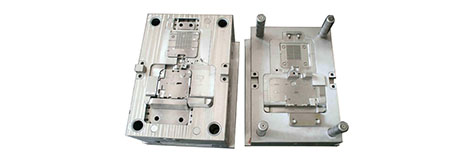

Mold design optimization is the key to improving injection efficiency and reducing cycle time. Methods include increasing the number of cooling channels, combined with mold flow analysis to enhance heat dissipation; or optimizing the channel layout for uniform cooling, reducing warpage and deformation. Adopting high thermal conductivity materials for the mold helps to speed up heat transfer. Simplifying the mold structure, such as reducing the number of cavities based on order size, can shorten filling time, though it reduces single-shot output. Using insert designs can also reduce processing complexity. Optimizing the venting system reduces filling resistance and injection time. Mold flow analysis assists in design by simulating filling, cooling, and warpage, optimizing gate positions in advance. A well-designed mold also reduces deformation and flash, improving product quality and production efficiency.

Clamping and Opening Time Optimization

Mold design optimization is the key to improving injection efficiency and reducing cycle time. Methods include increasing the number of cooling channels, combined with mold flow analysis to enhance heat dissipation; or optimizing the channel layout for uniform cooling, reducing warpage and deformation. Adopting high thermal conductivity materials for the mold helps to speed up heat transfer. Simplifying the mold structure, such as reducing the number of cavities based on order size, can shorten filling time, though it reduces single-shot output. Using insert designs can also reduce processing complexity. Optimizing the venting system reduces filling resistance and injection time. Mold flow analysis assists in design by simulating filling, cooling, and warpage, optimizing gate positions in advance. A well-designed mold also reduces deformation and flash, improving product quality and production efficiency.

Injection Time Optimization

Injection time optimization is critical to improving productivity and shortening injection molding cycles. Adjusting the injection speed is the key. The appropriate speed curve can be set according to the product and material characteristics of thin-walled and complex structures to realize fast filling while reducing the shear stress of the melt and avoiding problems such as weld lines. High precision products are suitable for high response servo drive system, which can accurately control the injection pressure and speed and improve the filling stability. Optimization of runner and gate design, such as the use of hot runners or reduction of runner length, helps to reduce melt flow resistance and speed up mold filling. In addition, choosing materials with better fluidity, such as low-viscosity plastics, can also effectively shorten the injection time. Reasonable adjustment of injection parameters, to ensure the filling speed, pressure and temperature achieve the optimal balance, can not only reduce the injection molding cycle, but also ensure that the product quality is stable.

Holding Time Optimization

Holding time optimization is a key component for shortening injection cycle times and ensuring product quality. By accurately controlling holding pressure and time, it also prevents over-pressurization, which can lead to overflow or flash, and under-pressurization, which can lead to shrink marks and dimensional deviations. The use of graduated holding pressure, where higher pressure is applied initially to ensure mold filling integrity, followed by a gradual reduction in pressure, helps to reduce unnecessary holding time. Optimizing the mold cooling system to improve cooling efficiency can also accelerate the curing speed of the product, thus shortening the holding pressure stage and avoiding uneven cooling that leads to premature local cooling and restricts melt flow. In addition, selecting materials with lower shrinkage or improving the mold venting design can reduce the holding pressure requirement. Reasonable adjustment of holding pressure parameters ensures that the product maintains dimensional accuracy and surface quality while effectively shortening the molding cycle and improving production efficiency.

Cooling Time Optimization

In injection molding, cooling time directly affects production efficiency and product quality. Optimization of cooling channel design is key. For example, uniformly arranging fine water channels close to the mold cavity, and using mold flow analysis to verify the layout's rationality, can shorten heat conduction paths. This avoids overly dense channels that weaken mold strength in deep cavities or complex structures, and improves cooling efficiency. Adopting high thermal conductivity materials for mold inserts, such as beryllium copper for high-precision products and aluminum alloy inserts for small batch products, can accelerate heat conduction and shorten cooling time. Introducing a hot runner system reduces the cooling needs of the material path, thereby reducing overall cycle time. Additionally, using temperature controllers to maintain a stable coolant temperature and appropriately increasing the coolant flow rate helps to enhance the cooling effect. Optimizing the cooling layout through simulation analysis ensures uniform temperature distribution in the mold, which reduces warpage and improves productivity.

Key Parameters in the Injection Molding Cycle

The injection molding cycle contains a number of key parameters, and the synergy between them is critical to the quality and productivity of plastic products. The injection speed determines how fast the melt is filled; too fast is prone to produce flash, too slow may lead to underfilling. For thick-walled or metal inserted products, multi-stage speed control is often used. Injection pressure affects material flow and product density; reasonable adjustment helps to reduce defects. Holding time and pressure ensure the product is fully molded before cooling; excessively long or high values can lead to overflow or deformation. Mold temperature directly affects cooling efficiency and product surface quality; precise control can reduce warpage. Cooling time determines the length of the molding cycle, and optimizing the layout of the cooling channels can significantly shorten the time. Through fine control of these parameters, cycle time can be minimized while ensuring product accuracy and stability.
