Turning a digital design into a reliable physical part requires more than sending a CAD file to a molding machine. The custom molding process connects product design, engineering review, tooling, and production testing to transform a 3D model into a finished component. Before manufacturing begins, engineers check the part geometry, wall thickness, draft angles, material requirements, and potential molding risks. These checks help identify design issues early and reduce costly changes after the mold is built.
Once the design is ready, the next stage is mold creation, where the approved geometry is converted into a production tool. Trial molding then provides real samples for dimensional, functional, and visual evaluation. Based on test results, process settings or mold details may be adjusted before final approval. This structured development path helps manufacturers achieve consistent quality while controlling production risks. Understanding each stage from CAD preparation to production testing also allows buyers to make better decisions about materials, tooling, lead times, and final part performance.

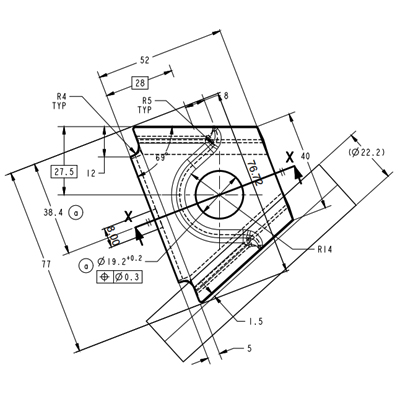

The development of custom molding products begins with a suitable digital model. The customer typically submits a 3D CAD file containing the required part geometry, dimensions, and key design features. Common formats can include STEP, IGES, or native CAD files, depending on the project requirements. Engineers use this information to understand the product structure and prepare it for molding. At this stage, it is helpful to provide drawings, material specifications, surface requirements, and critical tolerances when available. A complete design package gives the engineering team a clearer view of the intended application. It also helps establish an efficient starting point for the custom molding process before tooling development begins.
After receiving the model, engineers perform a Design for Manufacturability (DFM) review to determine whether the part can be molded efficiently and consistently. The analysis examines important details such as wall thickness, draft angles, ribs, bosses, parting lines, gates, and ejection areas. Engineers also consider the selected material and how it may affect filling, cooling, shrinkage, and dimensional stability. This stage connects product design with practical manufacturing requirements. Instead of simply checking whether the model looks correct, the DFM process identifies features that could create problems during mold creation or production. Early engineering feedback can therefore reduce tooling changes, development delays, and unnecessary manufacturing costs.
The DFM review may reveal design details that need improvement before the mold is manufactured. For example, extremely thin walls can make filling difficult, while sharp internal corners may increase stress or complicate machining. Uneven wall sections can also contribute to different cooling rates and shrink risks, potentially causing warpage or dimensional variation. Engineers recommend practical modifications based on the part's function and molding requirements. These changes may include adjusting wall thickness, adding suitable radii, improving draft angles, or repositioning certain features. Resolving such issues before mold creation helps create a more production-ready design and provides a smoother transition from the approved CAD model to trial molding and final part production.

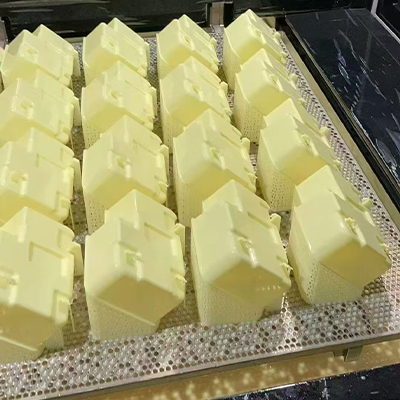

Before investing in production tooling, creating a physical sample can help confirm whether the design works as expected. Depending on the part geometry, material requirements, and development schedule, manufacturers may use 3D printing, CNC machining, or vacuum casting to produce an early prototype. These methods allow engineers to turn the approved CAD model into a tangible part without immediately building a production mold. A prototype can reveal issues that are difficult to identify on a computer screen, such as unexpected interference, poor proportions, difficult assembly, or unsuitable feature locations. It also gives the development team an opportunity to review the physical appearance and handling of the component before moving into more expensive tooling stages.
The prototype is then evaluated for fit, form, and function before the customer commits to mold manufacturing. Fit testing checks whether the part connects correctly with mating components, while form evaluation focuses on dimensions, appearance, and overall geometry. Functional testing examines whether important features perform as intended under realistic conditions. Depending on the application, teams may check assembly force, movement, sealing, or basic mechanical performance. Feedback from these tests can lead to small design adjustments before the production tool is ordered. This step helps reduce the risk of discovering major problems after the mold has already been manufactured. By validating the physical part early, buyers can move toward custom molding products with greater confidence.

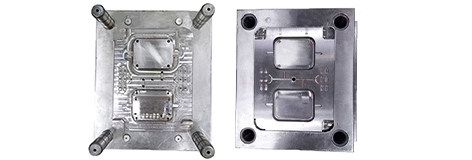

After the design and prototype are approved, the project moves into custom mold manufacturing. Skilled machinists use CNC machines to cut the mold base, cavities, cores, and other precision features according to the finalized CAD data. Depending on the part design and expected production volume, the tool may be produced from aluminum, pre-hardened steel, or hardened tool steel. CNC machining establishes the key dimensions and geometry required for accurate molding. During this stage, engineers also verify critical areas such as parting surfaces, ejector locations, gates, and inserts. Careful machining is important because the accuracy of the mold directly affects the consistency of the finished parts throughout the custom molding process.
CNC machining creates the main mold geometry, but additional finishing is required before the tool is ready for production. Machinists polish selected cavity surfaces to achieve the required appearance and reduce potential defects on molded parts. At the same time, cooling lines are incorporated into the mold to help control temperature during repeated molding cycles. Proper cooling supports more stable cycle times and can reduce problems related to uneven shrinkage or warpage. Engineers may also check ejection movement, mold alignment, venting, and other functional details during final preparation. These adjustments help ensure the custom mold can operate reliably during heavy production while maintaining the dimensional and cosmetic requirements established during earlier development stages.
Once the new mold is completed, the factory carries out the T1 trial to produce the first batch of test parts. Plastic resin is injected into the mold under controlled process conditions, allowing engineers to evaluate how the tool performs with the selected material. The trial helps reveal issues that may not be visible during mold machining, including incomplete filling, flash, sink marks, weld lines, or ejection problems. Engineers also observe the molding cycle and review the overall appearance of the samples. The T1 trial provides an important checkpoint before production approval, giving the team real molded parts that can be compared with the original CAD design and project requirements.
After the T1 samples are produced, engineers perform a detailed quality inspection to compare the physical parts with the approved CAD file and technical drawings. Critical dimensions are measured using appropriate inspection equipment, while appearance and functional features are also reviewed. If the samples show dimensional deviations or molding defects, the engineering team traces the problem back to the tool or process. Possible corrections may include modifying cavity dimensions, adjusting the parting area, improving venting, or refining the gate and cooling system. These changes help bring the molded part closer to the required specifications. Repeated sampling and inspection ensure that the custom molding products are properly validated before moving toward stable mass production.

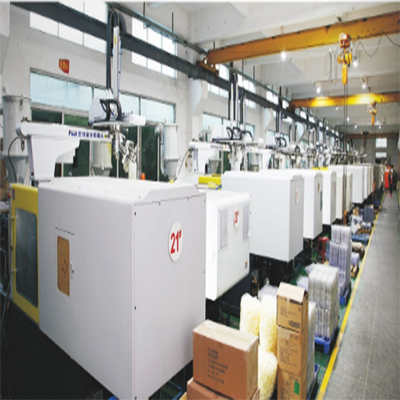

After the samples pass inspection and the mold receives production approval, the next stage is production molding. Workers install the approved mold into a suitable injection molding machine based on the tool size, clamping force, and part requirements. The mold is carefully aligned and secured to ensure stable operation during repeated cycles. Operators then connect the required cooling lines and other auxiliary systems before loading the specified plastic resin. Machine settings, including temperature, injection speed, pressure, and cooling time, are adjusted according to the validated process parameters. A proper setup helps maintain consistent molding conditions and reduces the risk of defects when production begins.

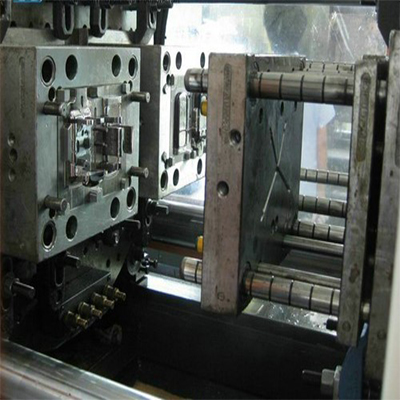

Once the machine is ready, the selected raw material is fed into the injection unit, where heaters gradually raise the plastic to its required processing temperature. The melted resin is then pushed through the nozzle and injected into the mold cavity under controlled pressure. Inside the tool, the material fills the designed geometry before being packed and cooled. After sufficient cooling, the mold opens and ejector components release the finished part. This cycle is repeated automatically to support efficient production. Throughout the run, operators monitor key process conditions and inspect samples to identify changes in appearance or dimensions. Stable temperature, pressure, and cooling control are essential for producing consistent custom molding products at production volume.
After injection molding, the parts may have small amounts of excess plastic around the gates, parting lines, or other areas of the mold. Workers remove this material through trimming, cutting, or other suitable finishing methods. Flash and gates must be handled carefully to avoid damaging functional surfaces or critical dimensions. For some custom molding products, additional finishing may include light polishing, deburring, drilling, or assembly, depending on the final application. The finishing stage improves the appearance and prepares each component for inspection and packaging. A consistent trimming method is especially important for parts with tight dimensional requirements, visible surfaces, or features that must fit accurately with other components during final assembly.
Before shipment, inspectors perform a final quality control check to confirm that the finished parts meet the approved requirements. Measurements are compared with the CAD data and technical drawings, while important features are checked for dimensional accuracy and consistency. Depending on the application, samples may also undergo basic strength, assembly, sealing, or functional tests. Inspectors review the parts for visible defects such as flash, sink marks, warpage, scratches, or incomplete filling. Any nonconforming pieces are identified and separated before packaging. This final inspection provides an additional quality checkpoint between production molding and delivery, helping ensure that the customer receives parts that match the agreed specifications and are ready for their intended use.
