3D Printing vs CNC Prototyping vs Vacuum Casting for Fast Product Development

When speed matters in product development, the best prototyping method is not always the cheapest or the most advanced one. It depends on what you need to validate first: shape, fit, strength, surface quality, or small-batch market testing.

For most early-stage concepts, 3D printing is the fastest way to get a part in hand. For functional validation and precise mechanical testing, CNC prototyping is usually the more reliable choice. When you need a small run of parts that look close to final production quality, vacuum casting often offers the best balance.

This guide compares the three methods in a practical way so you can choose the right process for each product development stage.

Why the Right Prototyping Method Matters

Fast product development is not just about reducing lead time. It is about reducing the time spent making the wrong decision.

A prototype can be used for very different goals:

• checking appearance and form

• testing fit with other components

• validating mechanical performance

• collecting customer feedback

• preparing for pilot production

• presenting a product to investors or distributors

The problem is that one prototyping method rarely performs best in all these scenarios. A part that is quick to print may not survive functional testing. A CNC part may be highly accurate but too slow or expensive for multiple design iterations. A vacuum cast part may look excellent, but it is not always the right choice for high-load engineering validation.

That is why comparing 3D printing vs CNC prototyping vs vacuum casting should be tied to actual development goals, not just price per part.

Quick Comparison: 3D Printing vs CNC Prototyping vs Vacuum Casting

This table is a starting point, but real selection depends on what “fast” means in your project. In some cases, the fastest route is a same-day printed model. In others, the fastest route to a correct design decision is a CNC-machined part that avoids weeks of redesign later.

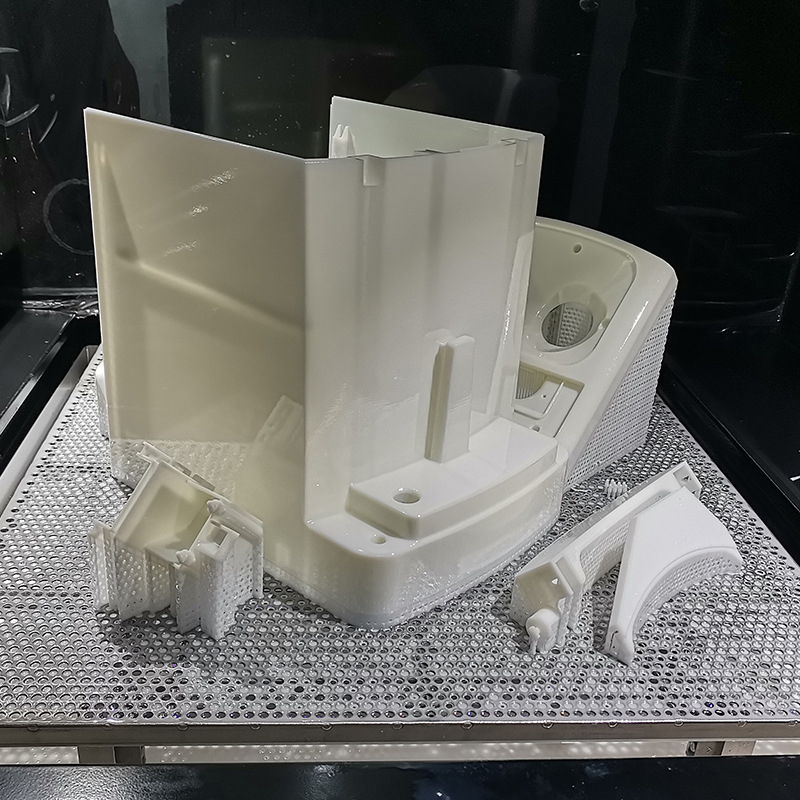

What Is 3D Printing Best For?

3D printing is typically the first choice when a team needs speed and flexibility.

It builds parts layer by layer from a digital model, which makes it especially useful for:

• concept validation

• rapid design changes

• low-cost prototypes

• internal geometry that is difficult to machine

• early-stage user testing

Main Advantages of 3D Printing

1. Very short lead times
3D printing is well suited for early development because it can move from CAD file to physical part quickly, often with minimal setup.

2. Strong design freedom
Complex internal channels, lattice structures, undercuts, and organic forms are easier to produce with 3D printing than with CNC machining.

3. Lower upfront cost for one-off parts
For single prototypes or frequent revisions, 3D printing usually avoids tooling and setup costs.

4. Useful for multiple iteration rounds
When engineers are still changing wall thickness, snap fits, button positions, or overall geometry, 3D printing supports faster learning cycles.

Limitations of 3D Printing

Material behavior may differ from final production parts
Even when the printed material looks similar to injection-molded plastic, its strength, heat resistance, or surface behavior may not match the final product closely enough for engineering decisions.

Surface quality varies by process
Some printed parts need post-processing if appearance matters.

Tolerances may not be sufficient for some assemblies
This is especially important for precision housings, mating features, and mechanical interfaces.

Typical Use Cases

3D printing is often the best choice when you need to:

• validate industrial design concepts

• review ergonomics and size

• test multiple design versions in parallel

• create non-load-bearing prototypes quickly

• check internal structures before moving to harder tooling paths

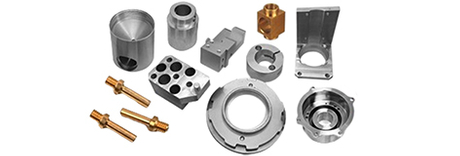

When CNC Prototyping Is the Better Option

CNC prototyping removes material from a solid block of plastic or metal. It is typically used when performance, dimensional accuracy, and real material properties matter more than maximum design freedom.

If your prototype needs to behave like the final part in real use, CNC is often the safer choice.

Main Advantages of CNC Prototyping

1. High dimensional accuracy
CNC machining is well suited for tight tolerances, precise hole locations, flatness, and repeatable fit.

2. Real engineering materials
You can machine prototypes from ABS, POM, nylon, acrylic, aluminum, stainless steel, and other materials closer to final production use.

3. Better for functional and mechanical testing
When you need to test threads, load-bearing features, sealing surfaces, or structural performance, CNC parts are usually more dependable than printed substitutes.

4. Strong surface quality and post-processing options
Machined parts can be polished, bead blasted, anodized, painted, or textured depending on the application.

Limitations of CNC Prototyping

Geometry constraints
Deep cavities, complex internal channels, and highly organic forms may be difficult or expensive to machine.

Higher cost for very simple concept iteration
If the design changes every day, CNC setup and machining time can make early rounds less efficient than 3D printing.

Material waste can be higher
Because the part is cut from a solid block, CNC is not as material-efficient as additive methods for some geometries.

Typical Use Cases

CNC prototyping is usually the better option when you need to:

• validate precise fit and tolerance

• test a mechanical housing before tooling

• evaluate structural strength

• create functional prototypes in metal or engineering-grade plastics

• present a high-fidelity part to a technical buyer or engineering team

Where Vacuum Casting Fits in Fast Product Development

Vacuum casting is often misunderstood. It is not usually the fastest way to get the first prototype, but it can be one of the most effective ways to support fast development after the initial design is stable.

The process typically starts with a master model, often made by CNC or 3D printing. A silicone mold is then created, and resin parts are cast under vacuum. This makes vacuum casting especially useful for short runs of parts that need consistency and better visual quality.

Main Advantages of Vacuum Casting

1. Good for small-batch duplication
Once the master and mold are ready, vacuum casting can produce multiple similar parts more efficiently than repeatedly printing or machining them.

2. Better appearance for presentation and validation
Vacuum cast parts can provide smoother surfaces and more production-like visual quality, which is useful for investor demos, sales samples, and user testing.

3. Useful bridge between prototype and mass production
When injection molding is too early and too expensive, vacuum casting gives teams a middle step.

4. Can simulate production plastics reasonably well
Many cast resins are designed to mimic ABS, PP, rubber-like materials, or transparent parts, though exact equivalence should not be assumed.

Limitations of Vacuum Casting

It requires a master model first
That adds one more step compared with direct 3D printing or CNC machining.

Material properties are approximate, not identical
Vacuum casting is often strong enough for some testing and pilot use, but it should not automatically replace production-grade validation.

Silicone molds have limited life
This makes the process best for low-volume production, not large-scale manufacturing.

Typical Use Cases

Vacuum casting is often the right choice when you need to:

• make 10 to 100 prototype parts

• prepare samples for customer testing

• evaluate color, texture, and appearance

• support pilot sales or market validation

• bridge the gap before injection mold tooling is ready

3D Printing vs CNC Prototyping vs Vacuum Casting: How to Choose by Development Stage

A practical way to select the right method is to match it to the stage of product development.

Stage 1: Early Concept and Design Iteration

At this stage, the main goal is to learn quickly.

Best choice: 3D printing

Why:

• design changes are frequent

• speed matters more than final material properties

• teams need low-cost physical models

• internal reviews often focus on shape and usability first

In this phase, printing multiple versions is often more valuable than producing one perfect part.

Stage 2: Functional Engineering Validation

At this stage, the team needs to know whether the design actually works.

Best choice: CNC prototyping

Why:

• tolerance and assembly accuracy matter

• actual mechanical behavior matters

• prototypes must survive testing

• technical risk is higher than visual risk

This is especially true for consumer electronics housings, connectors, brackets, enclosures, and precision mechanical parts.

Stage 3: Appearance Approval and Small-Batch Testing

At this stage, the design is relatively stable and the team wants multiple near-final parts.

Best choice: vacuum casting

Why:

• small-batch duplication becomes important

• presentation quality matters more

• teams may need multiple units for market testing

• full tooling is still premature

This stage is common when companies want to validate demand before investing in molds.

Practical Decision Criteria

If you are deciding between these three methods, use the following criteria instead of choosing only by price.

Choose 3D Printing If:

• you need parts as quickly as possible

• the design is still changing often

• geometry is complex

• the prototype is mainly for concept review or light testing

• you want to reduce iteration cost in early development

Choose CNC Prototyping If:

• tolerance is critical

• real engineering materials are required

• the part will undergo functional testing

• threads, sealing surfaces, or structural features matter

• you want a prototype close to final-use behavior

Choose Vacuum Casting If:

• the design is mostly frozen

• you need several identical parts

• appearance matters

• you need a bridge before injection molding

• you want low-volume parts with better consistency than repeated one-off prototyping

Common Mistakes to Avoid

Fast product development often slows down because teams choose a method based on habit rather than objective needs.

Using 3D Printing for Final Functional Conclusions

A printed part can be excellent for form review but weak for real engineering judgment. If the project depends on impact resistance, sealing, wear behavior, or thread strength, a printed sample may create false confidence.

Using CNC Too Early in a Highly Fluid Design Phase

CNC is powerful, but it is not always the best first move. When the design is still unstable, machining every revision can raise cost and slow learning.

Choosing Vacuum Casting Before the Design Is Stable

Vacuum casting works best after the master model is right. If major design changes are still likely, mold rework can waste both time and money.

Comparing Only Unit Cost

A cheaper part is not always the faster development option. One inaccurate prototype can trigger design errors, delayed testing, or repeated supplier communication. That hidden cost is often larger than the difference between prototyping methods.

A Realistic Selection Approach for Faster Results

In many projects, the fastest product development strategy is not choosing one method. It is using the right combination in sequence.

A common workflow looks like this:

1. 3D print early models to validate size, shape, and user interaction

2. CNC machine critical functional parts for fit and engineering tests

3. Vacuum cast a small batch for visual review, customer feedback, or pilot use

This staged approach reduces risk at each step without committing too early to expensive production tooling.

For example, a team developing a new consumer device housing may first print several enclosure versions, then CNC machine the final housing to confirm tolerances and assembly, and finally vacuum cast a short run for distributor samples. That workflow is often faster overall than forcing one process to do everything.

Which Method Is Best for Fast Product Development?

There is no universal winner in the debate around 3D printing vs CNC prototyping vs vacuum casting.

The better answer is:

• 3D printing is best for speed and iteration

• CNC prototyping is best for function and precision

• vacuum casting is best for low-volume, near-production presentation parts

If your goal is truly fast product development, choose the process based on the decision you need to make next, not just the part you need to produce today.

That mindset leads to better prototypes, fewer redesign loops, and a shorter path to launch.

Final Thoughts

The most effective prototyping strategy aligns process choice with development risk.

Use 3D printing when you need rapid learning. Use CNC prototyping when you need technical confidence. Use vacuum casting when you need multiple high-quality parts before mass production.

Teams that make this distinction early usually move faster because each prototype answers the right question at the right time.

If you are evaluating suppliers or planning your next prototype stage, the key question is simple: What do you need this prototype to prove? Once that is clear, the right method becomes much easier to choose.
