Metal Stamping Design Standards And Considerations

In the early stages of product development, following proper Metal Stamping design standards is critical to ensuring smooth mass production. Well-planned part design improves process stability while reducing material waste and tool wear. By considering material selection, thickness distribution, tolerance requirements, and forming limitations at the design stage, manufacturers can lower tooling complexity and production costs while maintaining consistent quality and reliability in stamped parts.

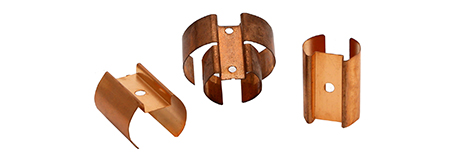

Holes and Slots

Design Guidelines for Minimum Diameters

In metal stamping design, the minimum size of holes and slots has a direct impact on forming stability and tool life. Minimum Diameters should maintain a proper ratio to material thickness, as excessively small holes can cause punch breakage, tearing around the hole, or excessive burrs. For high-strength materials or thicker sheets, increasing hole size improves cutting quality and reduces tool maintenance. Defining safe dimensions early helps avoid rework and secondary operations.

Key Requirements for Distance From Edges

The distance between holes or slots and part edges is a critical factor in metal stamping quality. If the Distance From Edges is too small, deformation, edge cracking, or warping may occur during punching, reducing part strength. A common guideline is to keep the hole center at least twice the material thickness away from the edge to ensure adequate support. Proper edge spacing improves dimensional stability and extends tool life.

Considerations for Distance From Bends

For stamped parts with bends, the spacing between holes or slots and bend lines is especially important. Insufficient Distance From Bends can cause hole distortion, elongation, or loss of roundness due to material flow during bending. It is generally recommended to keep the hole center at least equal to the material thickness away from the bend line, with adjustments based on material ductility. Proper planning of hole placement improves part consistency and reduces scrap rates.

Bends and Forms

Key Considerations for Bend Height

In metal stamping, a proper Bend Height is essential for achieving stable forming and consistent bend quality. If the bend height is too small, stress becomes concentrated during forming, which can lead to cracking or unstable bend angles. A common guideline is to keep the bend height at least twice the material thickness to provide sufficient forming space and structural strength. Proper planning at the design stage reduces tooling adjustment time and improves production consistency.

Managing Risks of Bends Close to Edges

When bends are located close to part edges, insufficient material support can result in tearing or edge deformation during forming. For designs involving Bends Close to Edges, increasing the distance between the bend and the edge or adding features such as reliefs or chamfers can help distribute stress more evenly. Thoughtful edge spacing improves forming stability and reduces scrap, helping control overall manufacturing costs.

Preventing Distortion and Bulges

During complex bending and forming operations, uneven material flow often causes distortion and bulging. To focus on Preventing Distortion and Bulges, designs should avoid sudden cross-section changes and maintain uniform material thickness. Combined with proper bend sequencing and well-designed tooling, these practices help control tensile and compressive forces, resulting in flatter surfaces and more stable final part geometry.

Dimensioning and Tolerancing

Proper Dimensioning Principles

In metal stamping design, clear and consistent dimensioning is the foundation for manufacturability and accurate assembly. For punched features and formed structures, functional or assembly datum surfaces should be used as the primary reference points. Avoid duplicating dimensions from multiple directions for the same feature. Well-defined dimensioning reduces measurement errors, minimizes misinterpretation, and improves both tooling fabrication and inspection efficiency.

Tolerance Allocation and Cost Control

Excessively tight tolerances increase tooling complexity and production costs, while overly loose tolerances may affect assembly and performance. In metal stamping, tolerances should be assigned based on functional requirements, keeping critical dimensions tightly controlled while allowing greater flexibility in non-critical areas. By preventing tolerance stack-up and unnecessary precision, manufacturers can reduce secondary operations and achieve cost-effective, high-quality mass production.

Other Features and Considerations

In metal stamping part design, features beyond holes and bends also have a significant impact on forming quality and production cost. Proper design of clips and slots helps prevent localized stress concentration and reduces abnormal wear on punches and dies. Sharp corners can easily cause material tearing and excessive burrs, while appropriate corner radii improve material flow and part consistency. In addition, defining burr direction and acceptable limits at the design stage simplifies assembly and quality control. Optimizing these details reduces tooling maintenance, minimizes secondary operations, and supports stable, cost-effective mass production.
