Choosing the right molding process can directly affect production costs.
But is 2K Injection Molding always better than Overmolding?
This article compares both processes by cost, efficiency, design flexibility, and applications.
You will learn how each method reduces assembly work and supports better manufacturing decisions.

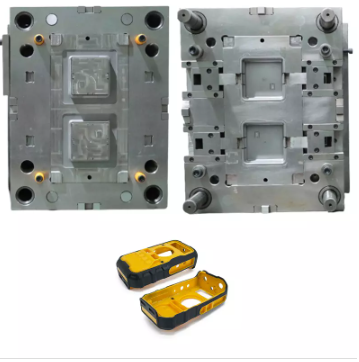

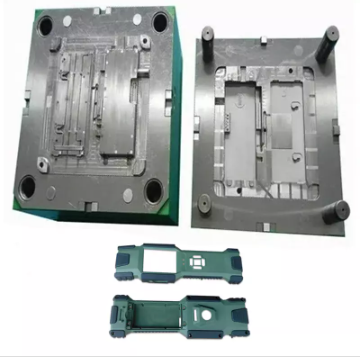

2K Injection Molding, also known as two-shot injection molding, is an advanced molding process that produces parts using two different materials or colors during one production cycle.
Unlike traditional injection molding, it does not require separate molding steps for each material.
The process usually includes:
Two injection units
Multiple plastic materials
Rotating mold or transfer technology
Integrated finished components
During production, the first material is injected into the mold. The mold then moves or rotates to allow the second material to enter the same part.
This creates a complete multi-material component through one manufacturing process.
2K Injection Molding is commonly used for products requiring:
Different material properties
Multiple colors
Soft and hard material combinations
Improved product appearance
One major advantage is that it reduces additional assembly operations.
Instead of producing separate parts and joining them later, manufacturers can create a single integrated component directly from the molding machine.
This reduces labor requirements and improves production consistency.
For example, automotive interior components may combine rigid plastic structures with soft-touch surfaces. Consumer electronics may use different materials for appearance and protection.
A suitable 2K Injection Molding solution can improve both product design and manufacturing efficiency.
More information about professional mold development solutions can be found on the YEESHINE official website.
Tip: 2K Injection Molding is usually more valuable for high-volume projects where reducing assembly steps can create long-term cost advantages.
Overmolding is a molding process where one material is molded over an existing part or substrate.
The base component is usually produced first. Then a second material is added around specific areas to provide additional functions.
Common material combinations include:
Plastic over plastic
Rubber over plastic
Soft material over rigid components
Overmolding is widely used for products that require improved grip, protection, sealing, or user comfort.
Typical applications include:
Handles
Grips
Sealing components
Consumer product housings
Industrial parts
For example, a plastic tool handle may use a rigid internal structure with a soft rubber layer outside. The rigid material provides strength, while the soft material improves comfort and handling.
Overmolding can reduce assembly costs because it replaces separate components that would normally require manual installation.
It also helps simplify inventory management because fewer individual parts are needed.
However, the best results depend on material compatibility and proper mold design.
Engineers must consider bonding performance, shrinkage differences, and production conditions before selecting this process.
Note: Overmolding does not always replace 2K Injection Molding. The correct choice depends on product structure, material requirements, and production goals.
Although both processes combine multiple materials, their manufacturing methods are different.
Factor | 2K Injection Molding | Overmolding |
|---|---|---|
Manufacturing method | Two materials molded in one cycle | Second material molded over an existing part |
Assembly reduction | High | Medium to high |
Tooling complexity | Higher | Lower to medium |
Production efficiency | Best for high-volume production | Flexible for different production scales |
Material integration | Strong multi-material bonding | Strong surface bonding |
2K Injection Molding focuses on creating a complete multi-material component in one molding cycle.
Overmolding focuses on adding another material layer to improve product function or performance.
For manufacturers, the choice should depend on several factors:
Product design
Required material combination
Production quantity
Target cost
Performance requirements
A professional supplier can evaluate these factors and recommend a suitable process.
YEESHINE provides mold design and manufacturing solutions for different plastic component requirements. Its Plastic Injection Mold solutions support customers during mold development and production planning.
One of the biggest advantages of 2K Injection Molding is its ability to combine multiple components into a single molded part.
In traditional manufacturing methods, different materials or components may require separate production steps. Workers may need to assemble, glue, fasten, or install additional parts after molding.
This creates extra costs, including:
Manual labor expenses
Additional assembly equipment
Longer production cycles
Higher quality control requirements
2K Injection Molding reduces these extra steps by integrating multiple materials during one molding process.
For example, a plastic housing with a soft sealing section may traditionally require a separate rubber gasket installation. With a two-shot molding solution, these materials can be combined directly during production.
This approach simplifies manufacturing and improves production consistency.
It also reduces the risk of assembly errors because fewer individual components are involved.
For manufacturers producing large quantities, reducing assembly operations can create significant cost savings over the entire product lifecycle.
2K Injection Molding is especially suitable for high-volume production because it supports automated manufacturing processes.
Once the mold and production parameters are properly developed, the process can continuously produce integrated parts with stable quality.
Key production benefits include:
Shorter production cycles
Reduced manual involvement
Higher repeatability
Consistent part quality
Compared with separate molding and assembly operations, 2K Injection Molding reduces handling between production stages.
This allows manufacturers to improve workflow efficiency and reduce production complexity.
For example, an electronic component housing may require multiple plastic materials for appearance, protection, and functionality. A two-shot molding process can complete these requirements in one production cycle instead of producing several parts separately.
This makes it a suitable choice for industries that require reliable mass production.
However, the initial mold investment is usually higher than standard injection molding. Therefore, manufacturers should evaluate expected production volume before selecting this process.
Tip: 2K Injection Molding provides stronger cost advantages when production quantities are high enough to offset the initial tooling investment.
Beyond reducing assembly costs, 2K Injection Molding can improve product reliability.
When multiple components are assembled separately, potential failure points may appear during product use.
Common issues include:
Loose connections
Adhesive failure
Assembly errors
Material separation
By integrating materials directly inside the mold, 2K Injection Molding creates a stronger connection between different sections.
This can improve:
Structural stability
Product durability
Dimensional consistency
Appearance quality
For products requiring precise fitting or complex designs, integrated molding provides better control over the final component.
A professional supplier can analyze material compatibility, mold structure, and production conditions to achieve reliable results.
YEESHINE supports customers with mold development and manufacturing solutions, helping optimize designs before mass production begins.
Overmolding reduces assembly requirements by combining different materials into a single component.
Instead of attaching separate parts later, manufacturers can add functional layers directly during the molding process.
Typical examples include:
Soft grips on rigid plastic parts
Protective rubber layers
Sealing structures
Shock-absorbing sections
This process is widely used when products require different material characteristics.
A rigid plastic base may provide strength, while a soft material layer improves comfort or protection.
For example, handheld equipment often uses overmolding to create ergonomic grips. The internal structure provides durability, while the outer layer improves user experience.
Overmolding allows manufacturers to achieve these functions without additional assembly operations.
It also helps reduce the number of components required for final production.
Many products traditionally require separate installation processes.
A manufacturer may need to:
Produce multiple parts
Store different components
Assemble them manually
Inspect each connection
Overmolding simplifies this workflow.
By combining materials during production, it reduces the need for additional labor and assembly management.
This creates several benefits:
Production Factor | Traditional Assembly | Overmolding |
|---|---|---|
Number of components | Higher | Lower |
Manual labor | More required | Reduced |
Inventory management | More complex | Simplified |
Production consistency | Depends on assembly | More stable |
For manufacturers, fewer assembly steps often mean easier production control.
It also reduces the chance of quality issues caused by inconsistent manual operations.
Overmolding provides designers with more options when developing plastic components.
It allows different materials to work together in one product.
Design advantages include:
Better ergonomics
Improved protection
Enhanced appearance
More functional designs
For example, consumer products may combine hard plastic structures with soft-touch surfaces. Industrial components may add protective layers to improve durability.
Overmolding is also useful when products require sealing performance or vibration reduction.
However, successful overmolding depends on proper material selection.
The base material and overmold material must have suitable bonding characteristics.
Engineers should evaluate material compatibility before production to avoid bonding problems.
Note: Material selection is one of the most important factors affecting overmolding quality and long-term reliability.
Tooling cost is one of the first factors manufacturers consider when comparing 2K Injection Molding and Overmolding.
2K Injection Molding usually requires more advanced mold structures because it needs to handle multiple materials during one production cycle.
Its tooling features may include:
Multiple injection systems
Rotating mold mechanisms
Complex material control
Precise mold alignment
Because of these requirements, the initial mold investment is often higher.
However, the higher tooling cost can be balanced by improved production efficiency. For large-volume projects, reducing assembly operations can create significant savings over time.
Overmolding usually has a simpler tooling structure because it applies one additional material layer onto an existing component.
Its advantages include:
Lower initial tooling investment
Flexible production options
Easier process adjustment
This makes Overmolding suitable for projects that need lower startup costs or moderate production volumes.
The better choice depends on the complete project situation.
A manufacturer producing millions of integrated components may benefit from 2K Injection Molding. A project requiring flexible production and lower initial investment may find Overmolding more suitable.
Both 2K Injection Molding and Overmolding can reduce assembly costs, but their cost-saving methods are different.
2K Injection Molding creates a finished multi-material component in one molding cycle.
It reduces:
Manual assembly operations
Additional fastening steps
Separate component handling
Assembly inspection requirements
Overmolding reduces costs by adding functional materials directly onto existing parts.
It helps reduce:
Component installation
Adhesive usage
Manual bonding processes
Inventory management complexity
The following comparison shows the general differences:
Cost Factor | 2K Injection Molding | Overmolding |
|---|---|---|
Assembly labor | Greatly reduced | Reduced |
Initial tooling cost | Higher | Lower |
Production volume | Best for high-volume projects | Suitable for flexible production |
Component integration | Excellent | Good |
Process complexity | Higher | Medium |
When evaluating cost, buyers should consider more than mold price.
A cheaper mold may not always create the lowest total manufacturing cost.
Labor expenses, production efficiency, quality control, and long-term maintenance should also be included.
The best molding process should provide value throughout the entire product lifecycle.
Manufacturers should evaluate:
Production efficiency
Quality consistency
Maintenance requirements
Product durability
Future production demand
For high-volume products, 2K Injection Molding can provide strong long-term benefits because it reduces assembly requirements and supports automated production.
For products that require different material functions but have changing production needs, Overmolding may provide greater flexibility.
The right decision depends on the relationship between investment and expected production benefits.
Tip: Compare the total cost of ownership instead of only comparing initial tooling prices.
Product structure is one of the most important factors when selecting a molding process.
Manufacturers should evaluate:
Number of materials required
Part geometry
Bonding requirements
Appearance expectations
Functional performance
2K Injection Molding is suitable when multiple materials need to become one integrated component.
For example, a product may require:
Hard plastic for structural support
Soft material for user comfort
Different colors for appearance
A two-shot process can combine these requirements in one production cycle.
Overmolding is often suitable when an existing component needs an additional functional layer.
Examples include:
Rubber protection over plastic parts
Soft-touch surfaces
Sealing layers
Understanding product requirements helps manufacturers select the correct process before mold development begins.
Production quantity strongly affects process selection.
For large-scale production, 2K Injection Molding may provide better cost efficiency because the initial tooling investment can be distributed across many parts.
It is commonly suitable for:
Automotive components
Consumer electronics parts
Large-volume industrial products
Overmolding provides more flexibility for different production scales.
It can be suitable for:
Small batch production
Medium-volume manufacturing
Products requiring frequent design updates
Before selecting a process, buyers should estimate:
Annual production quantity
Product lifespan
Future demand
Target manufacturing cost
This information helps suppliers recommend a suitable solution.
Material compatibility directly affects molding quality.
Different materials have different characteristics, including:
Shrinkage rate
Processing temperature
Bonding performance
Mechanical properties
For 2K Injection Molding, engineers must ensure the two materials work well together.
For Overmolding, the base material and secondary material must create a reliable bond.
Poor material selection may lead to:
Weak bonding
Cracking
Separation issues
Reduced product lifespan
Working with an experienced supplier helps buyers select suitable material combinations.
YEESHINE supports customers with mold design and manufacturing solutions to improve product feasibility before production.
Supplier experience plays an important role in molding project success.
Manufacturers should evaluate:
Mold design capability
Multi-material molding experience
Production equipment
Quality control systems
Engineering support
2K Injection Molding requires precise mold design and production control.
A supplier without sufficient experience may face problems such as:
Material alignment issues
Longer development cycles
Higher mold modification costs
An experienced supplier can provide support from design analysis to final production.
YEESHINE offers professional mold development solutions and helps customers optimize injection molding projects through engineering expertise and manufacturing experience.
You can learn more about its capabilities through the YEESHINE Plastic Injection Mold page.
Automotive manufacturing often requires durable and integrated plastic components.
Common applications include:
Interior panels
Control switches
Functional assemblies
Decorative components
2K Injection Molding helps combine different materials in automotive parts.
For example, a control panel may require a rigid structure and soft-touch surface.
Using integrated molding reduces assembly operations and improves appearance consistency.
Overmolding is also widely used for automotive components requiring protection or improved handling.
Consumer electronics require both functional performance and attractive appearance.
Applications include:
Device housings
Protective covers
Buttons
Portable equipment components
2K Injection Molding allows manufacturers to combine multiple colors or materials into one product.
Overmolding helps create comfortable surfaces and protective layers.
These processes support:
Better product design
Reduced assembly work
Improved user experience
Industrial and medical products often require reliable performance and precise manufacturing.
Common applications include:
Equipment housings
Sealing components
Ergonomic handles
Protective covers
These applications require:
Stable material performance
Accurate dimensions
Reliable bonding
Selecting the correct molding process helps manufacturers achieve consistent quality.
Note: Application requirements should always be reviewed before choosing between 2K Injection Molding and Overmolding.
One common mistake is selecting a molding process only by comparing the initial mold investment.
A lower tooling cost may appear attractive at the beginning. However, it does not always mean lower total manufacturing costs.
Buyers should also consider:
Assembly labor expenses
Production efficiency
Quality control costs
Maintenance requirements
Long-term production volume
For example, Overmolding may require lower initial tooling investment compared with 2K Injection Molding. However, if a product requires millions of units, additional assembly costs may become a larger expense over time.
On the other hand, 2K Injection Molding may require more advanced tooling but can reduce assembly operations significantly.
The correct decision should be based on total project value rather than only the first investment.
Tip: Evaluate tooling cost together with labor savings and production efficiency before selecting a molding process.
Another common mistake is choosing a process before fully understanding product design requirements.
Different products have different manufacturing needs.
Important factors include:
Material combinations
Part structure
Required bonding strength
Surface appearance
Functional requirements
For example, a product requiring two integrated materials may be better suited for 2K Injection Molding.
A product needing a soft protective layer may be more suitable for Overmolding.
Ignoring these factors may create problems during production, such as:
Weak material bonding
Mold redesign
Increased development time
Higher manufacturing costs
Early communication between designers and suppliers helps identify the most suitable molding solution.
A professional supplier can review the product design and provide recommendations before tooling begins.
Supplier capability directly affects molding project success.
Both 2K Injection Molding and Overmolding require strong engineering knowledge and precise manufacturing control.
Buyers should evaluate supplier experience in areas such as:
Mold design
Material selection
Multi-material molding
Injection molding production
Quality inspection
An inexperienced supplier may face challenges including:
Poor mold structure design
Material compatibility problems
Production delays
Increased mold modification costs
For complex projects, supplier experience is especially important.
A capable manufacturing partner can support the entire development process, including design optimization, mold manufacturing, testing, and mass production.
YEESHINE provides professional mold design and manufacturing solutions for different plastic injection molding projects. Its engineering team helps customers improve product feasibility and production efficiency.
You can learn more about its complete manufacturing capabilities through the YEESHINE official website.
Selecting between 2K Injection Molding and Overmolding depends on product design, material needs, production volume, and cost goals. Both processes can reduce assembly work and improve manufacturing efficiency.
YEESHINE provides professional mold design, custom injection molding solutions, and manufacturing support to help customers optimize production processes, reduce costs, and achieve reliable plastic component quality.
A: 2K Injection Molding combines two materials in one cycle to create integrated plastic parts and reduce assembly steps.
A: 2K Injection Molding lowers labor costs by combining multiple components into one finished part.
A: 2K Injection Molding creates multi-material parts in one cycle, while Overmolding adds material over an existing part.
A: Yes, 2K Injection Molding is suitable for high-volume projects requiring efficiency and consistent quality.
A: Consider material compatibility, product design, production volume, and total manufacturing costs before choosing a process.
